Limitorque B320 Series FCD LMENIM3201-02 – 01/15
26

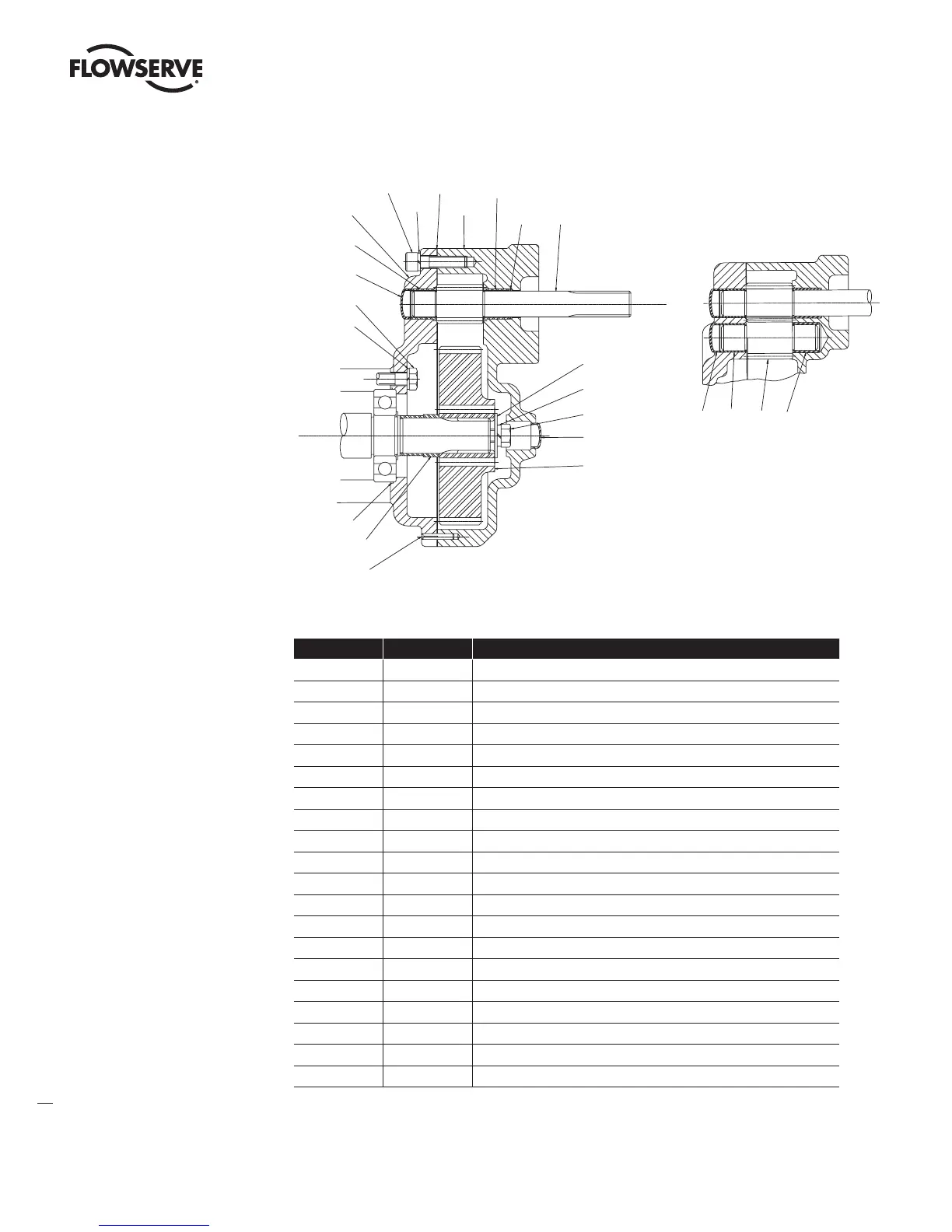

Figure 6.8 – 5:1 SGA Parts Diagram for B320-90
Table 6.6 – 5:1 SGA Parts List for B320-90
Piece Quantity Description
200 1 Adapter Plate
201 1 Housing
202 1 Input Shaft and Pinion
203 1 Idler Gear
204 1 Output Gear
205 1 Spacer
206 4 Teflon Bearing
208 2 Expansion Plug
209 1 Expansion Plug
210 1 Quad Ring
211 1 O-ring
212 1 Gasket
213 1 Flat Washer
214 1 Lockwasher
215 1 Hex Head Cap Screw
216 13 Lockwasher
217 7 Socket Head Cap Screw
218 6 Hex Head Cap Screw
219 2 Dowel Pin
347 1 Pipe Plug (not shown)
202
210
206
201
212
216
217
200
206
208
218
216
213
214
215
209
204
211
205
219
Section "A-A"
208
206
203
206
Section "B-B"
Thru Idler Gear
