EP5 Electro Pneumatic Digital Positioner FCD PMENIM0006-00-A5 12/18
26

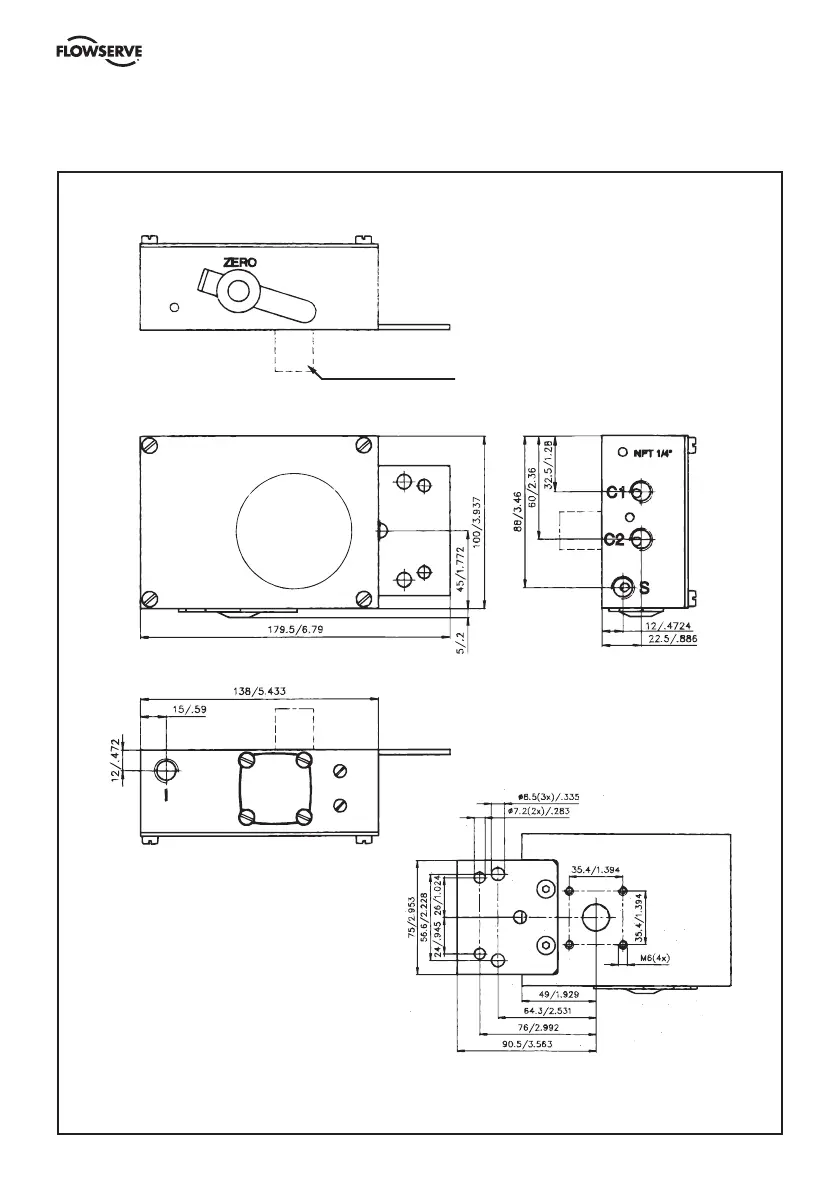

Dimensional drawing (P4)
For selection of the feedback-spindle pls see
”Drive shaft dimension drawing”
