ROTADISK Pneumatic Actuator RD & RDF
Operating Manual – BA3002 EN
8 Repair
Page 50 of 79

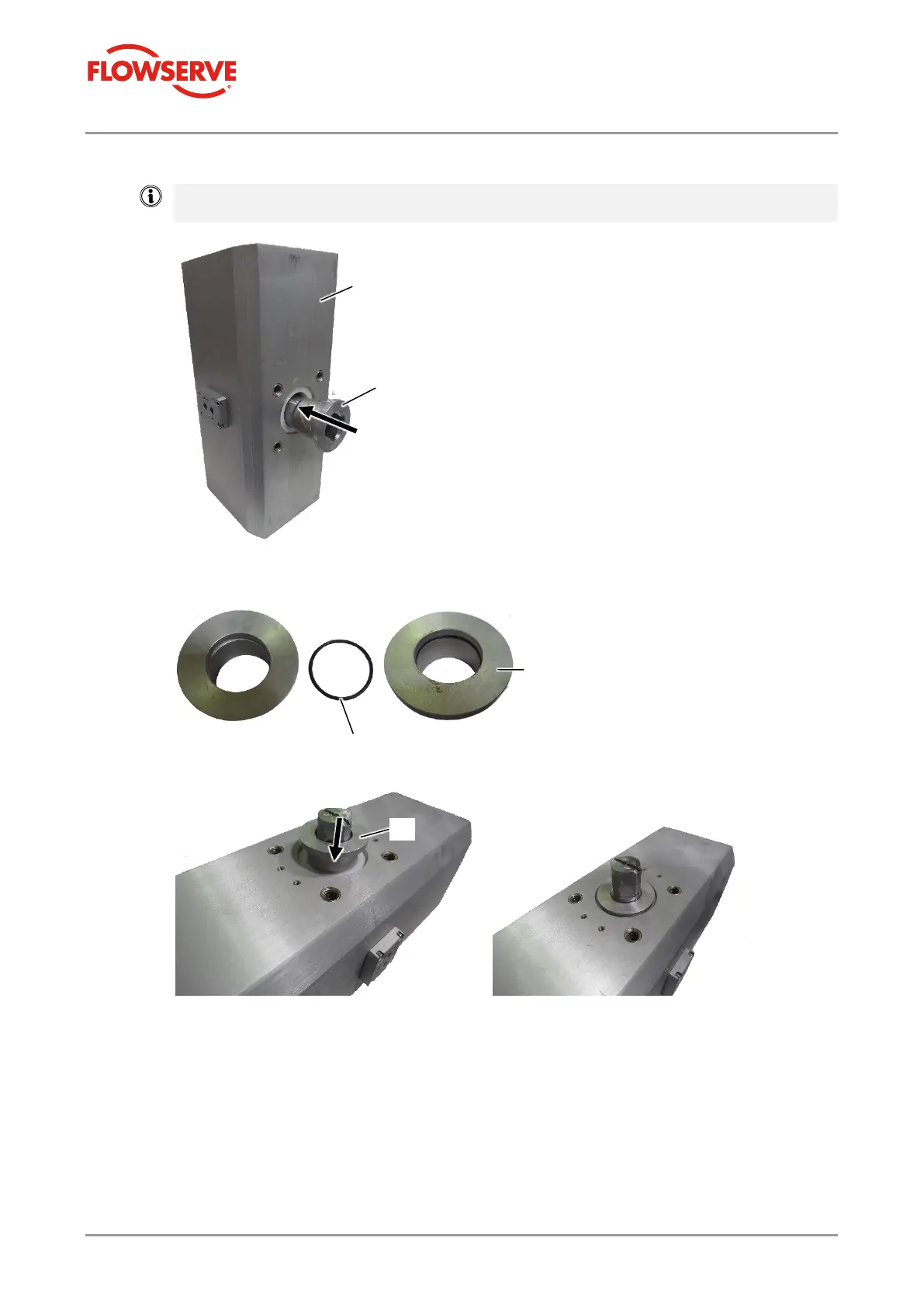

26. Press the greased drive shaft [4] carefully into the body [10] from the bottom.
Make sure that the groove in the drive shaft [4] has the original position (transverse or
parallel to the longitudinal axis).
27. Place a new O-ring [12] in the shim bushing [8].
28. Insert the shim bushing [8] into the bearing opening.
[10]
[4]
[12]
[8]
[8]
