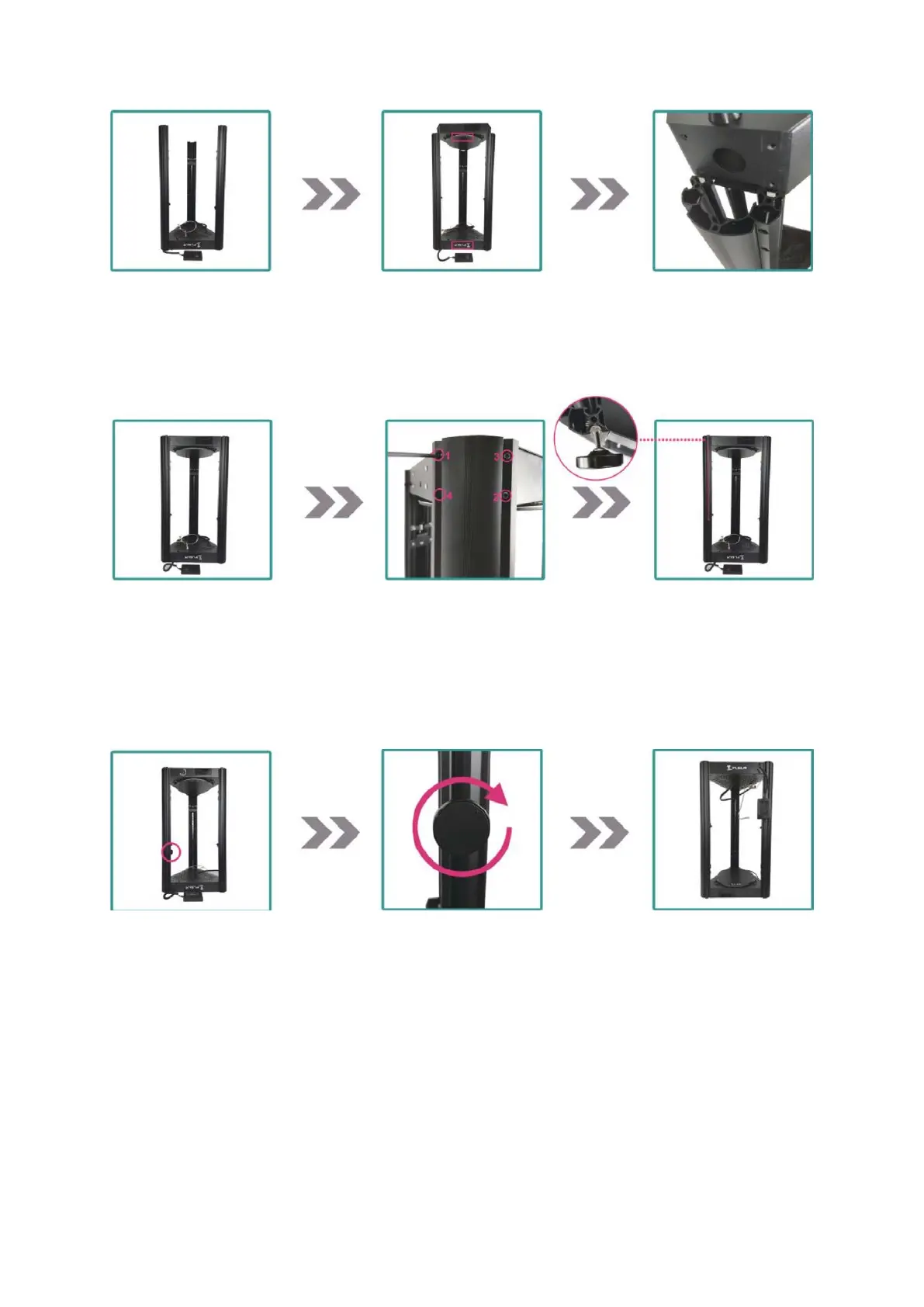

7. Install the other two
axes in the same way
8. Install the bottom shell. The two
logos marked in the photo should
be facing the same direction
9. The top shell
should be installed
in the guide rail
10. Push the bottom
shell down to the
correct position
11. Install the
screws for each axis
in order from 1 to 4
12. Slide the touch
screen bracket
nut into the guide
groove of the left
axis
13. Move the touch
screen bracket to
one-third of the
distance from the
top shell
14. Rotate the knob
clockwise to fix the
touch screen bracket
15. Rotate the printer
180 degrees the logo
is facing the front
