flsun SR - Page 9

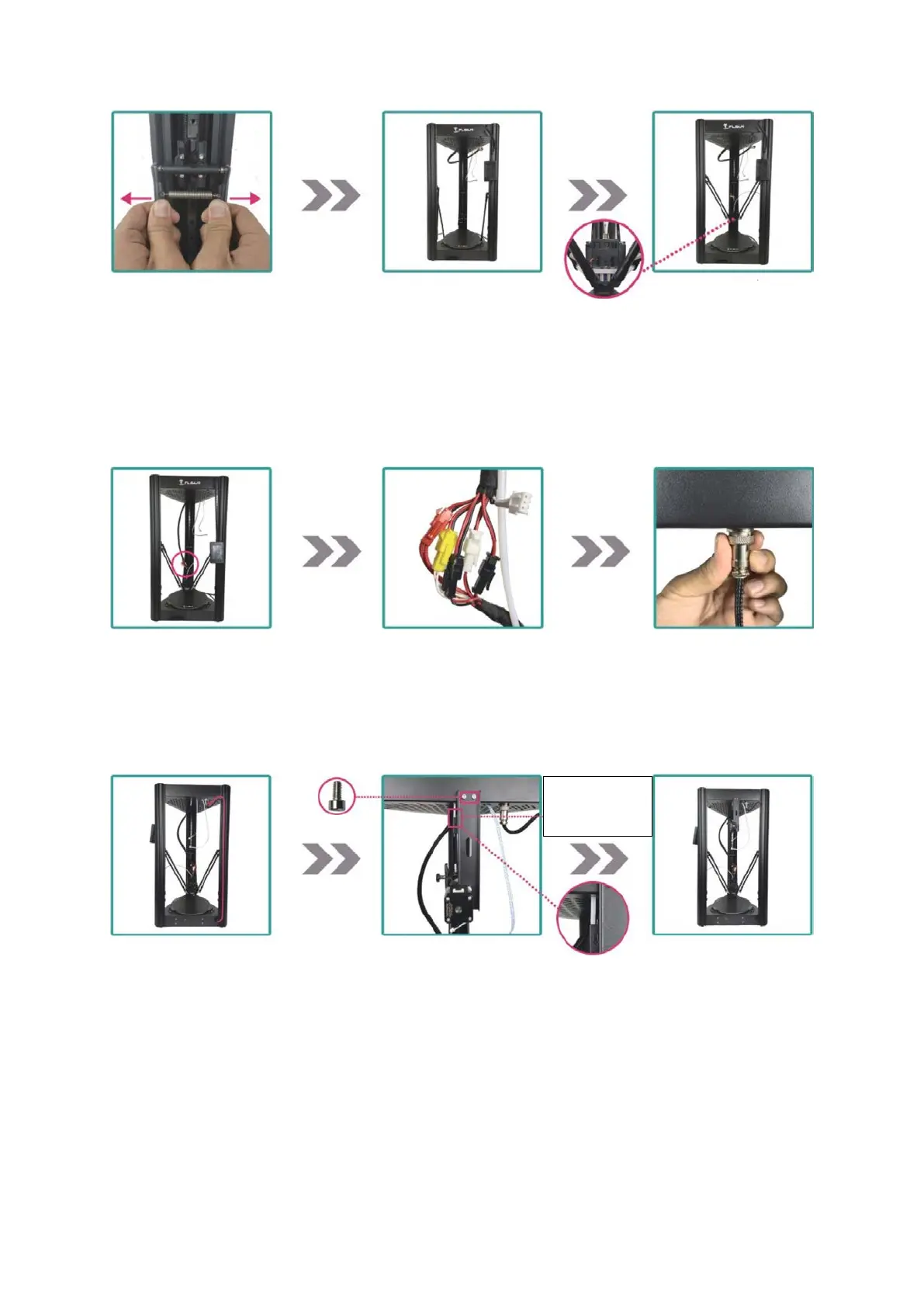

16. Pull the parallel
arm to both sides
and install it on the
slider
17. Install the other
two parallel arms in
the same way
18. Install the
effector module the
logo on the effector
module must face
forward
19. Connect the
connectors of the
effector module
to the main cable
20. The color of the
connectors must match
two black connectors can
be connected arbitrarily
21. Install the main
cable connector
22. Put the main
cable into the
groove in the axis
23. Install the extruder
24. Extruder
installation finished
M4*8 (short)
The PTFE tube and the
filament detection
sensor entrance must
be
aligned
