flsun SuperRacer - Page 10

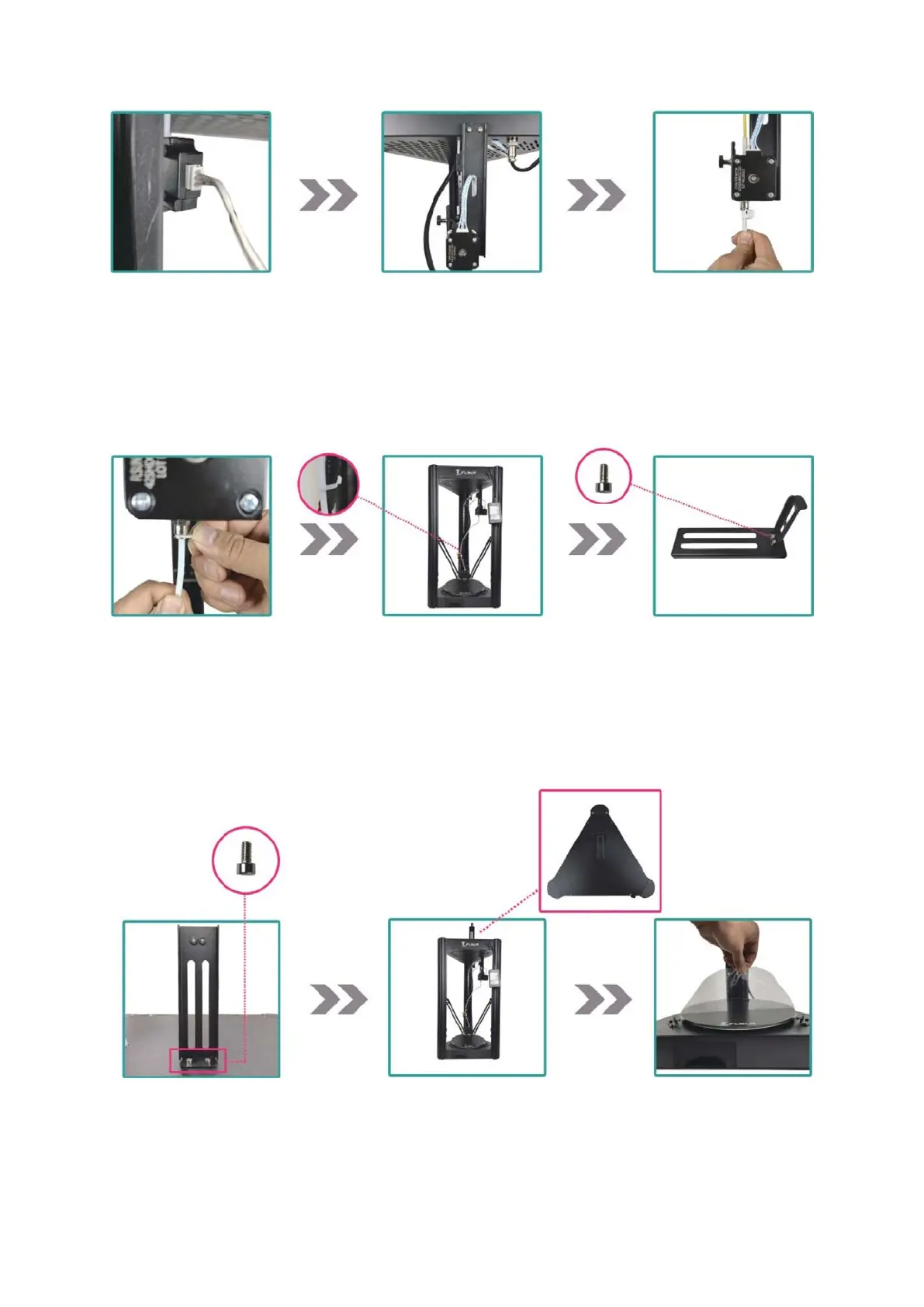

25. Plug the
filament detection
sensor cable
26. Plug the extruder
cable
27. Push the PTFE
tube to the
position marked
with an arrow in
the photo
28. Fix the
pneumatic
connector with a
buckle
29. Tie the PTFE tube
and the main cable
together at the
location marked in
the photo
30. Assemble the
filament holder
31. Install the
filament holder to
the top case
32. The orientation
of the filament
holder should be as
shown in the photo
33. Remove the
protective film from
the hot bed. The
assembly is finished
M4*8 (short)
M4*8 (short)
View from the
Front
