flsun SuperRacer - First Layer Verification; First Layer Check and Adjustment

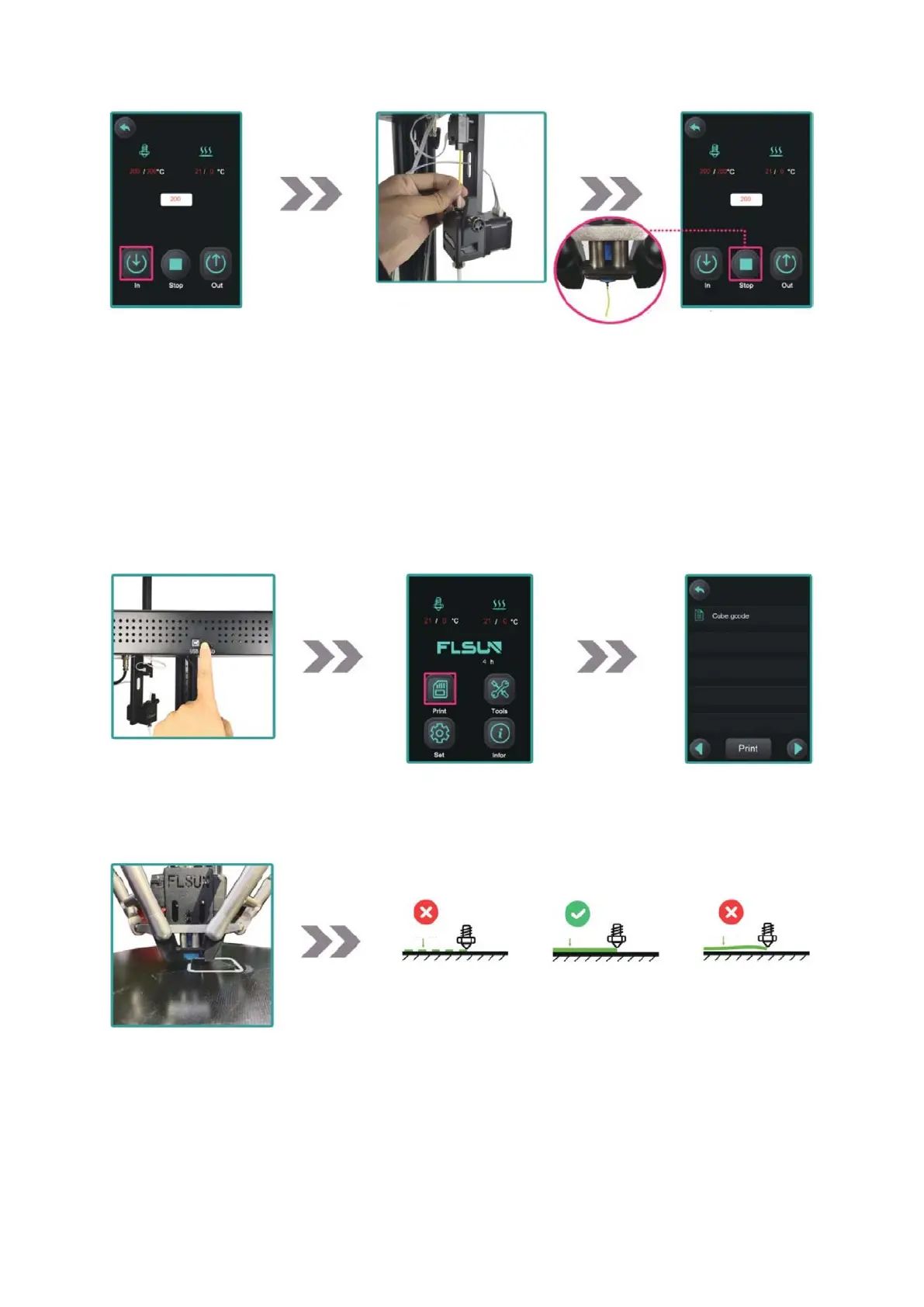

10. Wait for the
nozzle to heat
up to 200°C,
then click “in”
11. Push down the
filaments at the
same time
12. When the
filament is
extruded from
the nozzle, click
“Stop”
First Layer Verification
1. Insert SD
card
2. Click “Print”
3. Select a test
gcode to print
4. Monitor the
extruded
filament of the
first layer
5. If the nozzle is too close or too far away from
the hot bed you can continue to adjust the height
of Z0 while printing and the adjustment will be
automatically saved
1. The nozzle is
too close to
the hot bed
2. Proper distance
3. The nozzle is
too far from
the hot bed
Filament
Filament
Filament
