FGM 160 Operating Instructions
1. PURPOSE
This document describes the Fluenta Flare Gas Meter, FGM 160 hardware and software, and
the device integrity.
2. ABBREVIATIONS/DEFINITIONS
2.1 Abbreviations
TFS Transducer Full Size
FGM Flare Gas Meter
2.2 Definitions
Module PC-board with a local controller and a processor
TFS Series Transducers based on the TFS. See document 72.050.001 for details on this
range
3. GENERAL INFORMATION
3.1 Hardware Description
The FGM 160 Field Computer, illustrated in Figure 1, is designed as a distributed system. The
FGM 160 consists of five or six modules, the Digital Signal Processing (DSP) module, the
Analog Front End (AFE) module, the Pressure & Temperature (P&T) module, Input/Output
(I/O) module, Intrinsic Safe Barrier (IS Barrier) module, Surge Protection module and the Local
Display. A distributed system gives several advantages. This design will be more flexible with
respect to future expansions and modifications, as the total processing load for the system can
be divided in several modules. Thus, the danger of overloading a single CPU unit is reduced.

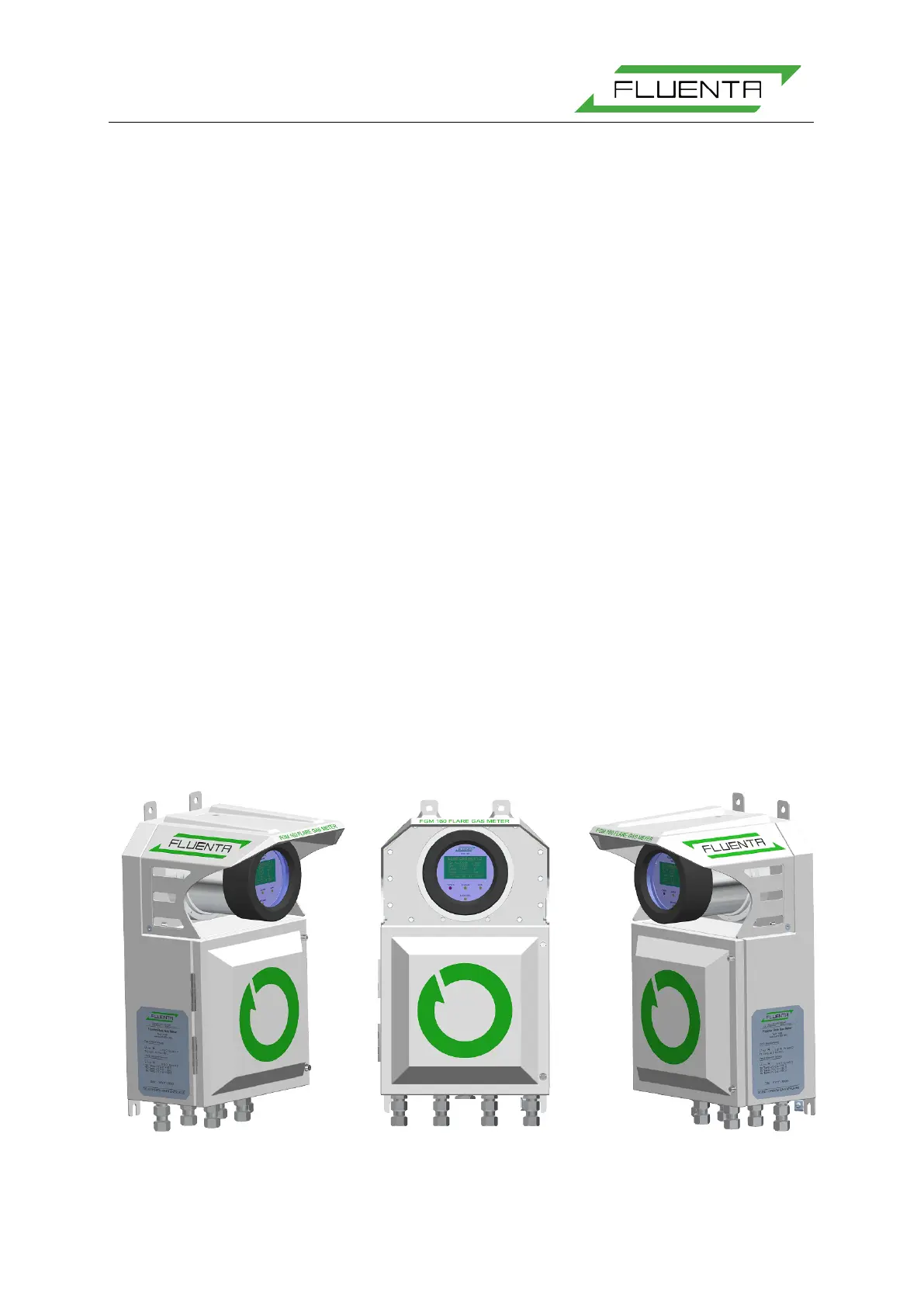

Figure 1: FGM 160 Field Computer.
