Fluidwell F012-P Manual

HF012PEN_v0402_03 Atex_IECEx_CSA_FM
Page 22

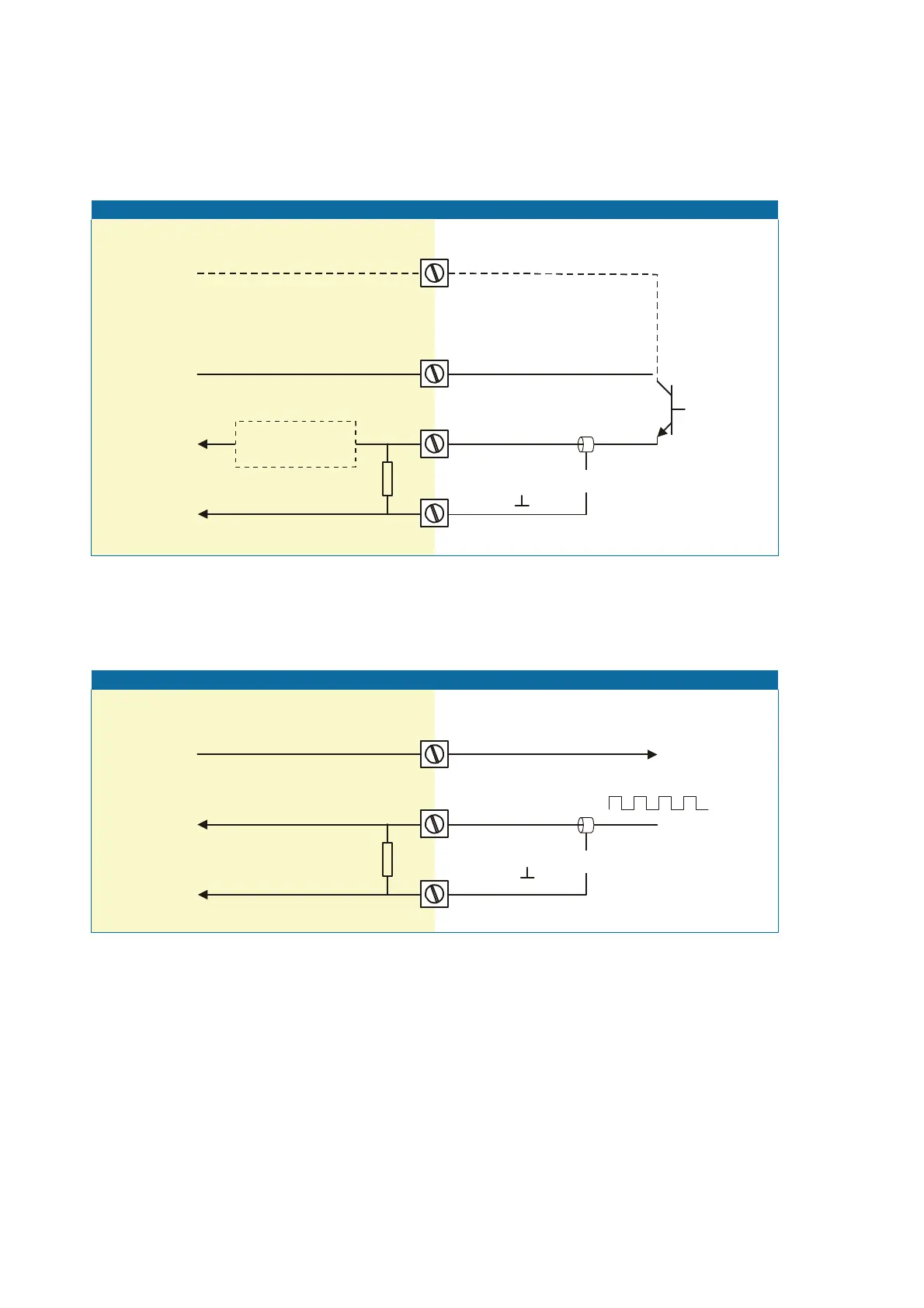

Pulse-signal PNP / PNP-LP:
The F012-P is suitable for use with flowmeters which have a PNP output signal. Terminal 3 offers
3.2V which has to be switched by the sensor to terminal 2 (SIGNAL). For a reliable pulse detection,
the pulse amplitude has to go above 1.2V. Signal setting PNP-LP employs a low-pass signal noise
filter, which limits the maximum input frequency - read par. 3.2.3.
A sensor supply voltage of 8.1V DC can be provided with option PD on terminal 6.
Active signal:
Active signal selection may well be desired in the case of option PD being supplied for sensor
supply.
INTERNAL EXTERNAL
Active signal input
2
Common ground unit
SIGNAL
1
GND
shielding
6
+8.1V DC (type PD)
Resistance value:
see signal selection
INTERNAL EXTERNAL
PNP signal input
2
Common ground unit
SIGNAL
1
GND
shielding
PNP
100K
3
+3.2V DC
low-pass filter
selection PNP-LP
6
Option Type PD-PF-PM: 8.1V DC
