HF012PEN_v0402_03 Atex_IECEx_CSA_FM
Page 5
1. INTRODUCTION
1.1. SYSTEM DESCRIPTION OF THE F012-P
Functions and features
The flowrate / totalizer model F012-P is a microprocessor driven instrument designed to display
flowrate, total and accumulated total.
This product has been designed with a focus on:
ultra-low power consumption to allow long-life battery powered applications (type PB / PC),
intrinsic safety for use in hazardous applications (type XI),
several mounting possibilities with GRP or aluminum enclosures for industrial surroundings,
ability to process all types of flowmeter signals,
Flowmeter input
This manual describes the unit with a pulse type input from the flowmeter "-P version". Other
versions are available to process (0)4-20mA or 0-10V flowmeter signals.
One flowmeter with a passive or active pulse, Namur or coil signal output can be connected to the
F012-P. To power the sensor, several options are available.

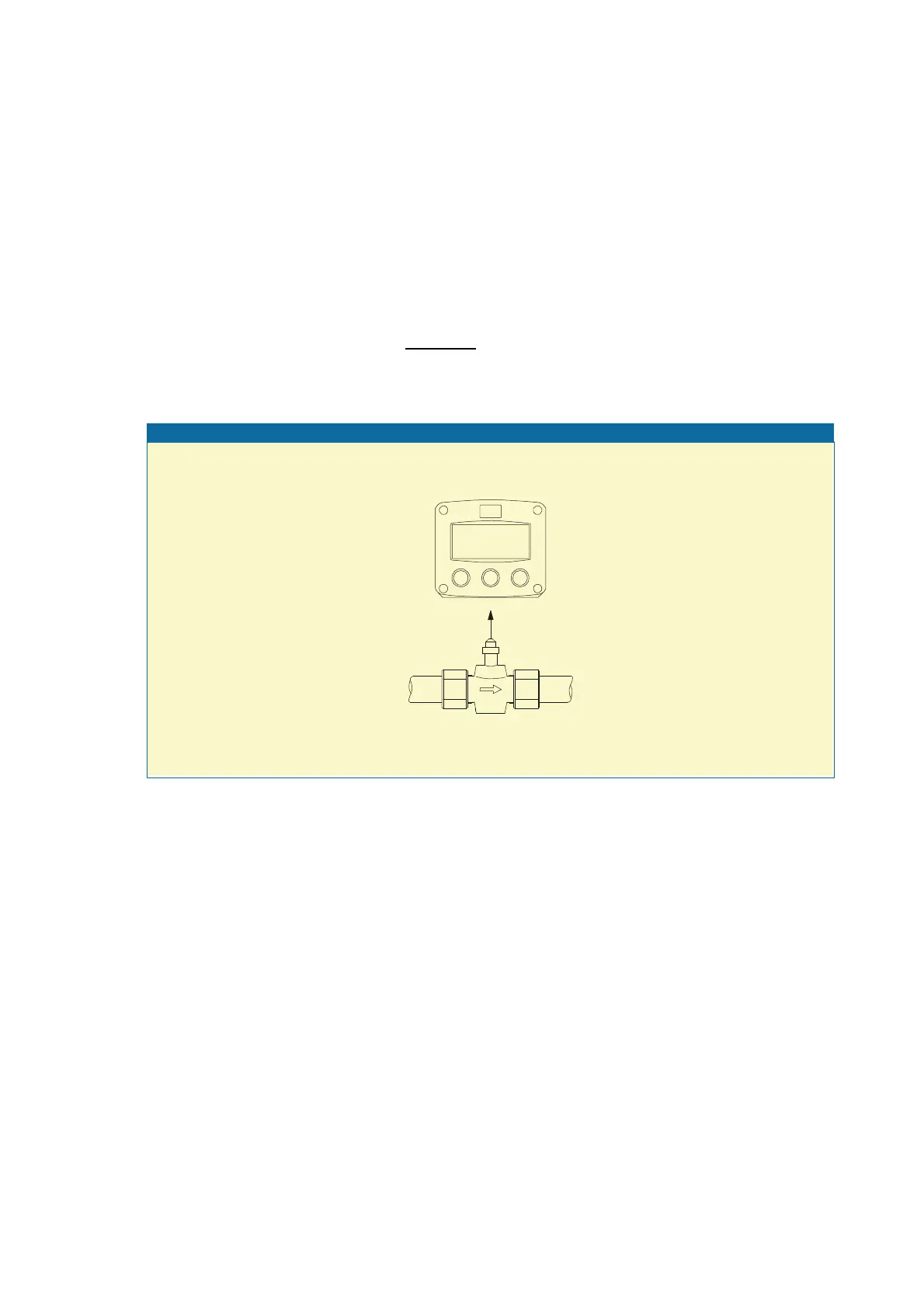

Fig. 1: Typical application for the F012-P.
Configuration of the unit
The F012-P has been designed to be implemented in many types of applications. For that reason, a
SETUP-level is available to configure your F012-P according to your specific requirements.
It includes several important features, such as K-factors, measurement units, signal selection etc. All
setting are stored in EEPROM memory and will not be lost in the event of power failure. To extend
the battery-life time, please use of the power-management functions as described in chapter 3.2.3.
Display information
The unit has a large transflective LCD with all kinds of symbols and digits to display measuring units,
status information, trend-indication and key-word messages.
Flowrate and totals can be displayed either with the small 8mm digits or with the 17mm digits.
A backup of the total and accumulated total in EEPROM memory is made every minute.
Options
The following options are available: intrinsic safety, power- and sensor-supply options, panel-mount,
wall-mount and weather-proof enclosures, flame proof enclosure and LED backlight.
Overview typical application F012
