HF012PEN_v0402_03 Atex_IECEx_CSA_FM
Page 25

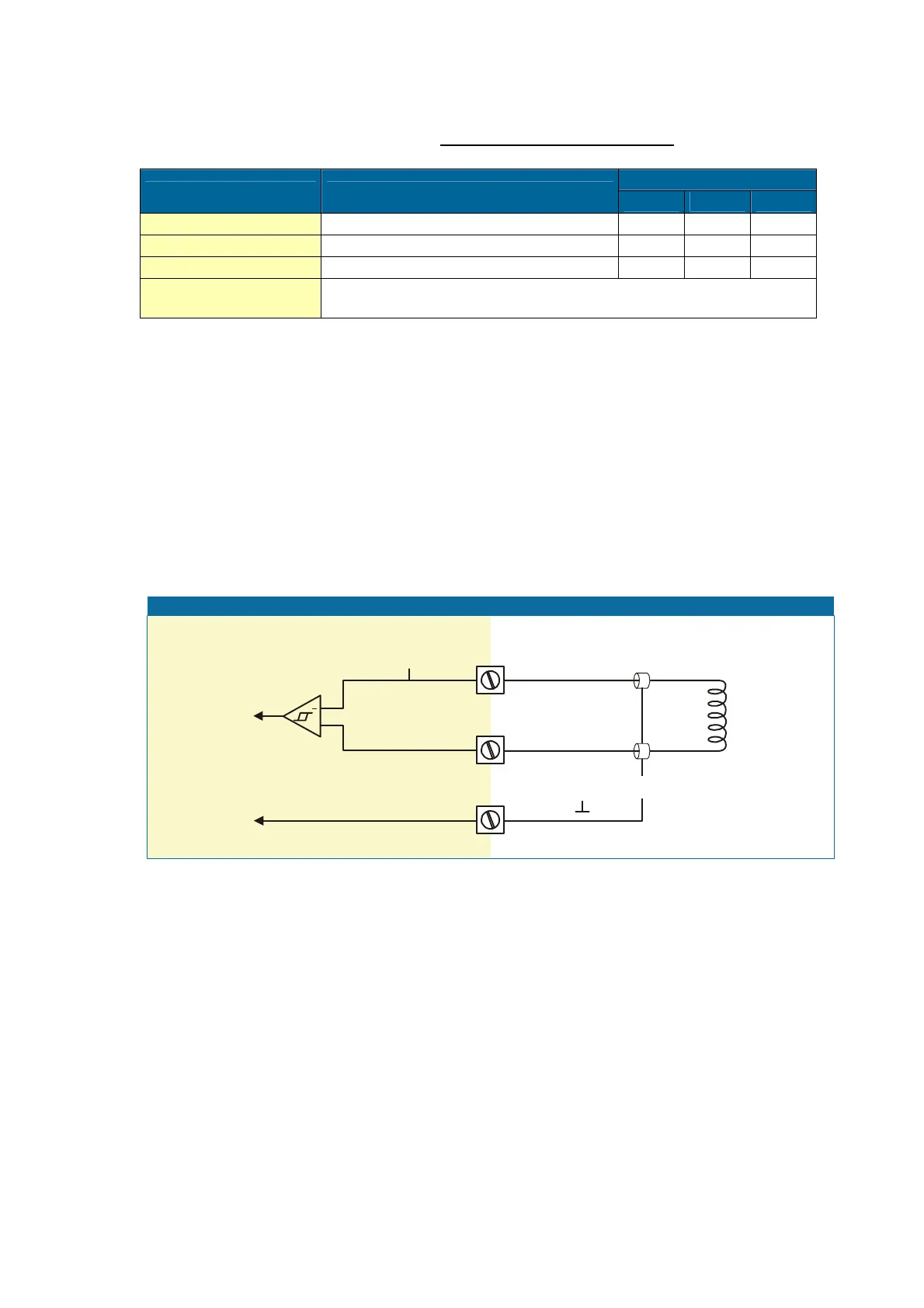

REMARKS: TERMINAL CONNECTORS:
Terminal GND- 01- 02 POWER SUPPLY only available with type PF / PM:
OPTION SENSOR SUPPLY
Terminal
GND 01 02
PF
24V AC ± 10%
1.2, 3.2, 8.2, 12, 24V max. 400mA@24V DC
AC AC
PF
24V DC ± 10%
1.2, 3.2, 8.2, 12, 24V max. 400mA@24V DC L- L+
PM
115-230V AC ± 10%
1.2, 3.2, 8.2, 12, 24V max. 400mA@24V DC EARTH AC AC
Note PF / PM The total consumption of the sensor and backlight type ZB may not exceed
400mA@24V DC.
Terminals 5-7; Flowmeter input:
Three basic types of flowmeter signals can be connected to the unit: pulse, active pulse or coil. The
screen of the signal wire must be connected to the common ground terminal
The input signal type has to be selected with the correct SETUP-function (read par. 3.2.3.)
Coil-signal:
The F012-P is suitable for use with flowmeters which have a coil output signal.
Two sensitivity levels can be selected with the SETUP-function:
COIL LO: sensitivity from about 90mVp-p.
COIL HI: sensitivity from about 20mVp-p.
Type ZF (option): offers for setting COIL HI : sensitivity from about 10mVp-p.
Type ZG (option): offers for setting COIL HI : sensitivity from about 5mVp-p.
INTERNAL EXTERNAL
Coil signal input
7
6
COIL
Common ground unit
COIL
5
GND
Input
sensitivity
selectable:
coil high / low
+
V ref.
1.2V DC
shielding
