Fluidwell F110-P User Manual

HF110PEN_v0501_04
Page 22
GRP enclosures:
75 mm (2.95")
130 mm (5.12")
112 mm (4.40")
60 mm (2.36")
120 mm (4.72")
HD
HK
HK back box:
(flat bottom)
HE
HF
HG
HH
D=12mm
12mm
12mm
24mm24mm
36mm
36mm
14mm 17mm
22,5mm
30mm 30mm
D=16mm
D=20mm
0.9"
D=22mm (0.866")
22,5mm
25mm 25mm
D=20mm
D=20mm
D=16mm
HC
75 mm (2.95")
118 mm (4.65”)
104 mm (4.09”)
HJ
0.9”
0.12” 0.12”
3x D=22mm (0.866”)
115 mm (4.53”)
98 mm (3.86”)
29.1 mm (1.15”)
31 mm
(1.22”)

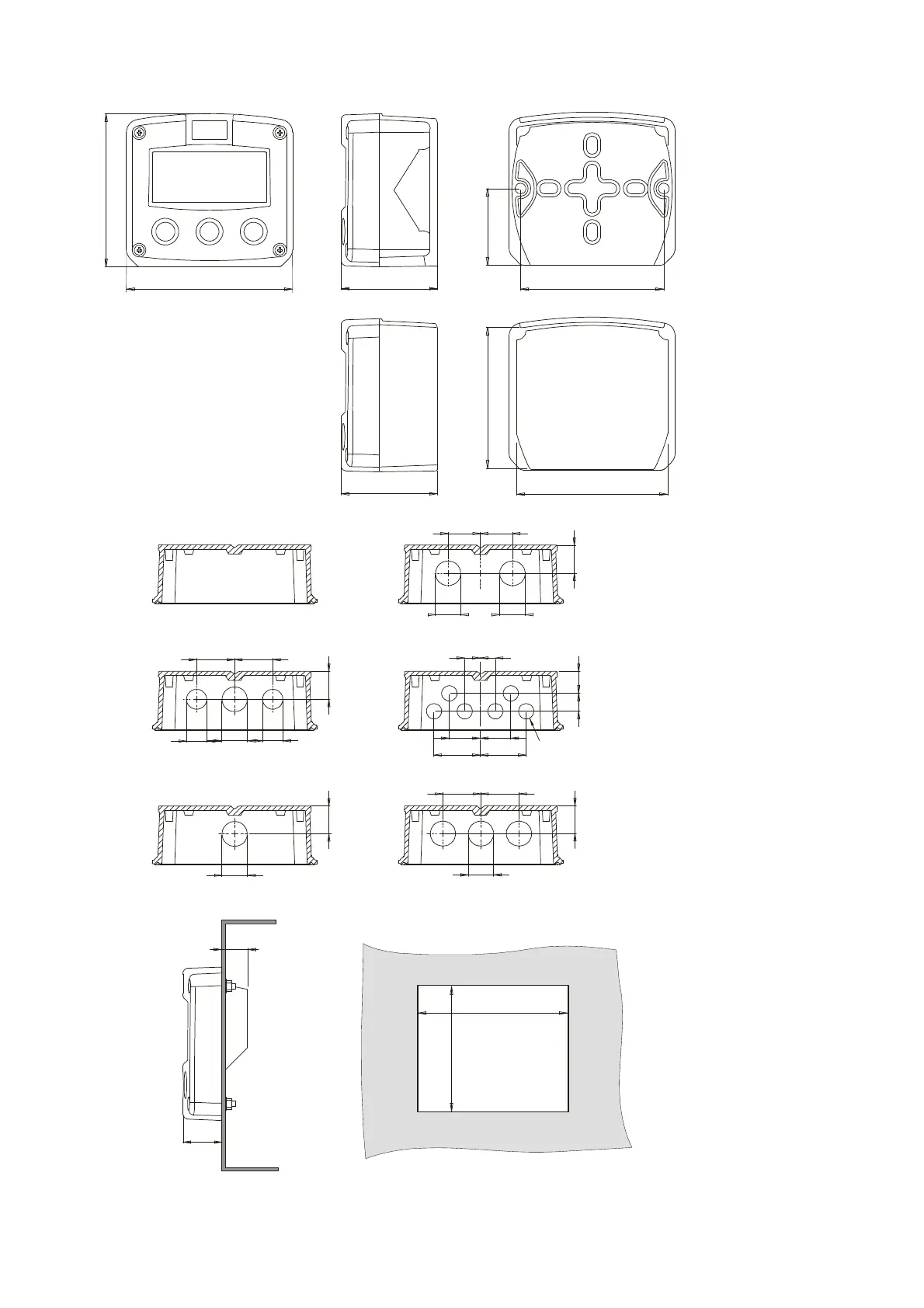

Fig. 6: Dimensions GRP enclosures.
