Fluidwell F110-P - Analog Output Signal Options; Intrinsically Safe Analog Output Type AF; Isolated Analog Output Type Al; Passive Analog Output Type AP

HF110PEN_v0501_04
Page 28
Type AF:
For the Intrinsically Safe floating 4-20mA signal: please read Chapter 5.

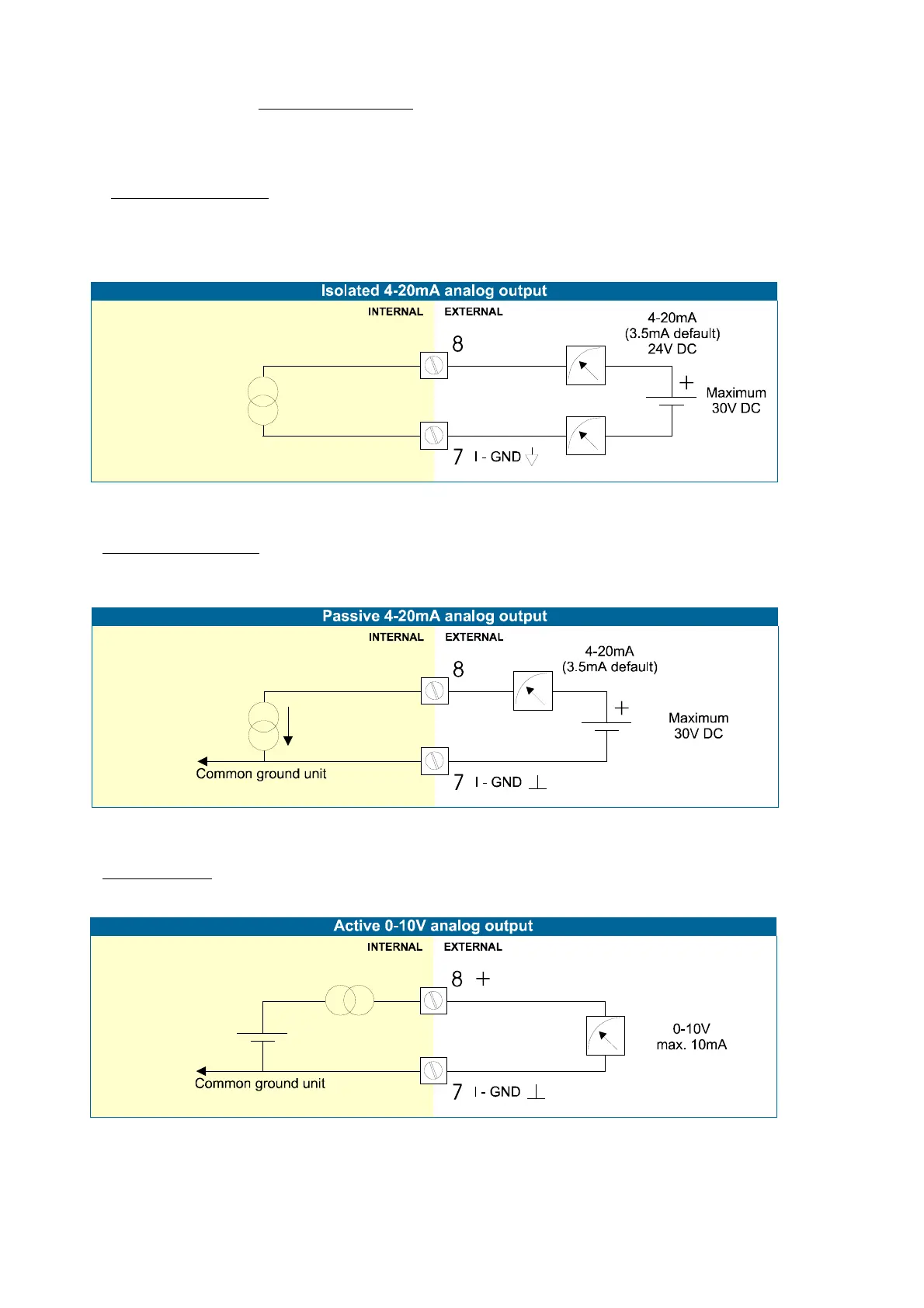

Type AI:
An isolated 4-20mA signal proportional to the flowrate is available with this option.
When the output is disabled, a 3.5mA signal will be generated on these terminals.
Max. driving capacity 1000 Ohm @ 30VDC.
This option can be used with a battery powered unit but the life time of the battery is about 2 -3
years.
Type AP:
A passive 4-20mA signal proportional to the flowrate is available with this option. When a power
supply is connected but the output is disabled, a 3.5mA signal will be generated.
Max. driving capacity 1000 Ohm. This output does loop power the unit as well (type PX).
Type AU:
A 0-10VDC signal proportional to the flowrate is available with this option.
Max. load 10mA @ 10VDC. (Requires power supply type PD / PF / PM).
