Fluidwell F110-P - PX Type Power Supply and Analog Output; PX Type Power Supply and Loop Power; Analog Output Types AA and AB

HF110PEN_v0501_04
Page 27
Terminal 07-08; basic POWER SUPPLY - type PX - output loop powered:
Connect an external power supply of 8-30VDC to these terminals or a 4-20mA loop.
Do connect the "-" to terminal 7 and the "+" to terminal 8. When power is applied to these terminals,
the (optional) internal battery will be disabled / enabled automatically to extend the battery life time.
Only valid for standard passive output type AP!
Terminal 07-08 analog output (SETUP 7) :
An analog output signal proportional to the flowrate is available as standard.

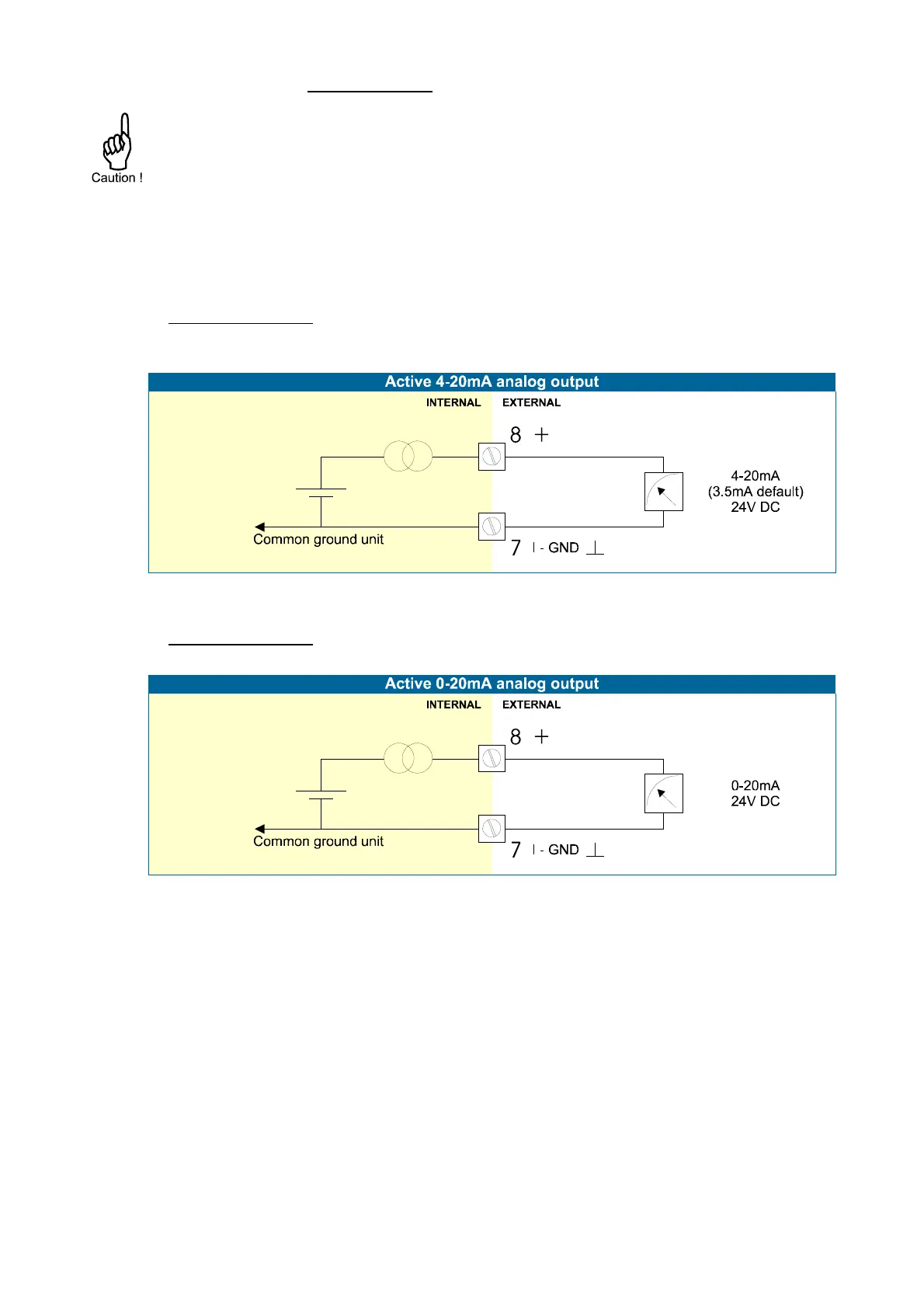

Type AA:
An active 4-20mA signal proportional to the flowrate is available with this option.
When the output is disabled, a 3.5mA signal will be generated on these terminals.
Max. driving capacity 1000 Ohm @ 24VDC. (Requires power supply type PD / PF / PM).
Type AB:
An active 0-20mA signal proportional to the flowrate is available with this option.
Max. driving capacity 1000 Ohm @ 24VDC. (Requires power supply type PD / PF / PM).
