Fluidwell F110-P - Pulse Output Terminals (05-06); Scaled Pulse Output Type OA; Mechanical Relay Pulse Output Type OR; Passive Transistor Pulse Output Type OT

HF110PEN_v0501_04
Page 26
Terminal 05-06; scaled pulse output R1:
Setup 7 (par. 3.4.4.) determines the pulse output function. The maximum pulse frequency of this
output is 60Hz. If a relay output option has been supplied, be sure that the output frequency does
not exceed 5Hz or else the life-time of the relay will be reduced significantly.

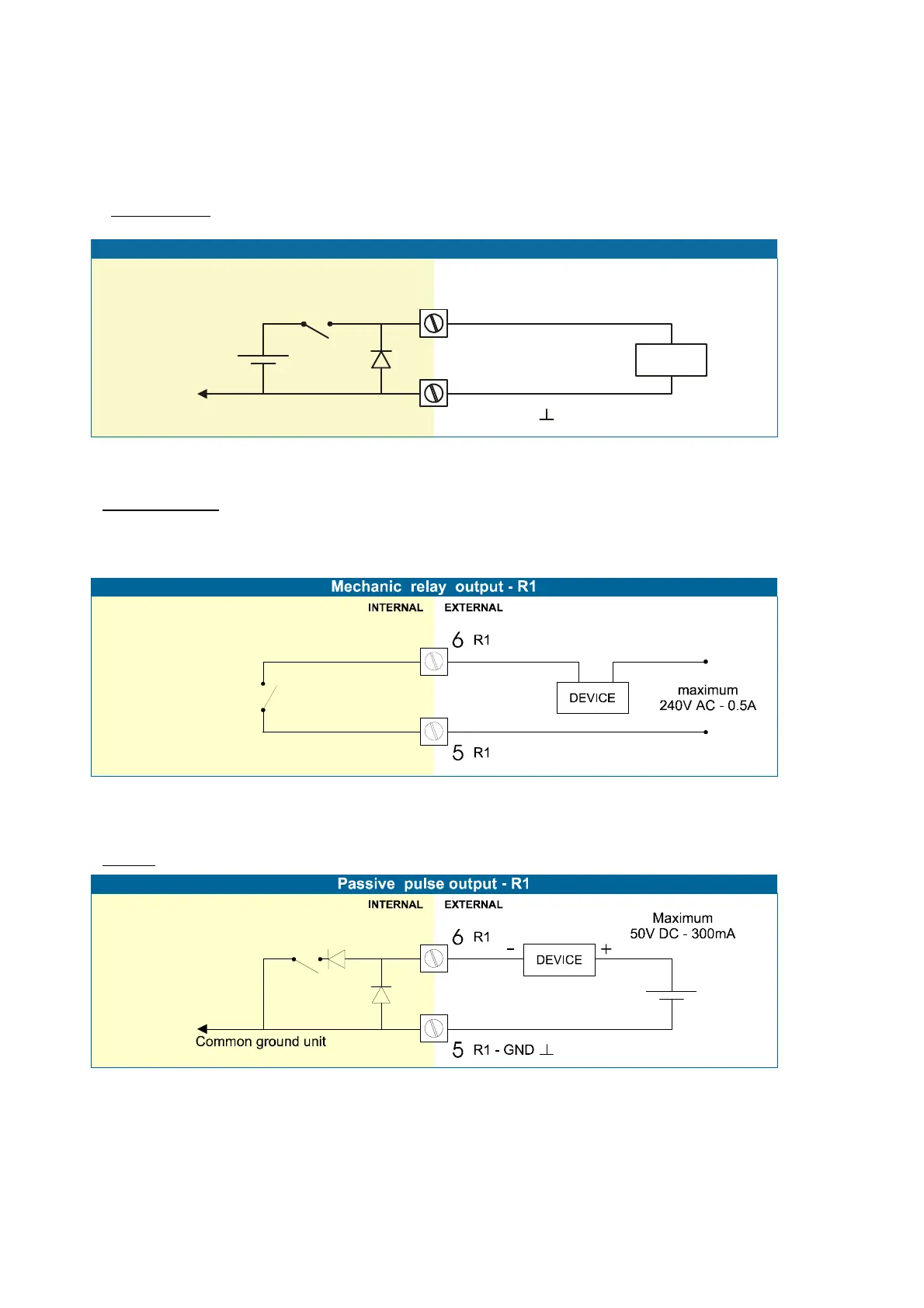

Type OA:
An active 24V DC pulse signal output is available with this option.
Max. driving capacity 50mA@24V per output. (Requires power supply type PD / PF / PM).
Type OR:
A mechanical relay output is available with this option.
Max. switch power 240V 0,5A per output. (Requires power supply type PF / PM).
Be sure that the output frequency does not exceed 5Hz, else the relay life time will be reduced
significantly.
Type OT:
A passive transistor output is available with this option. Max. driving capacity 300mA@50V DC.
+
INTERNAL EXTERNAL
Active output - R1
6
5
R1
24V DC
max. 50mA
Common ground unit
R1 - GND
DEVICE
