Terminal 03-04; negative total - transistor or relay output R2:
This output is switched in case the calculated accumulated total counts down.
Terminal 05-06; transistor or relay output R1:
This output is a pulse output. With SETUP 7, the function of this output is set.
The maximum pulse frequency of this output is 60Hz.
If a relay output option has been supplied, be sure that the output frequency does not exceed 1 Hz
else the life-time of the relay will be reduced significantly.
Type OA:
An active 24V DC signal is available with this option.
Max. driving capacity 50mA@24V per output. (Requires power supply type PD / PF / PM).
Type OR:
A mechanical relay output is available with this option.
Max. switch power 240V 0,5A per output. (Requires power supply type PF / PM).
If this option has been supplied: be sure that the output frequency does not exceed 5Hz else the life-
time of the relay is influenced significantly.
+
INTERNAL EXTERNAL

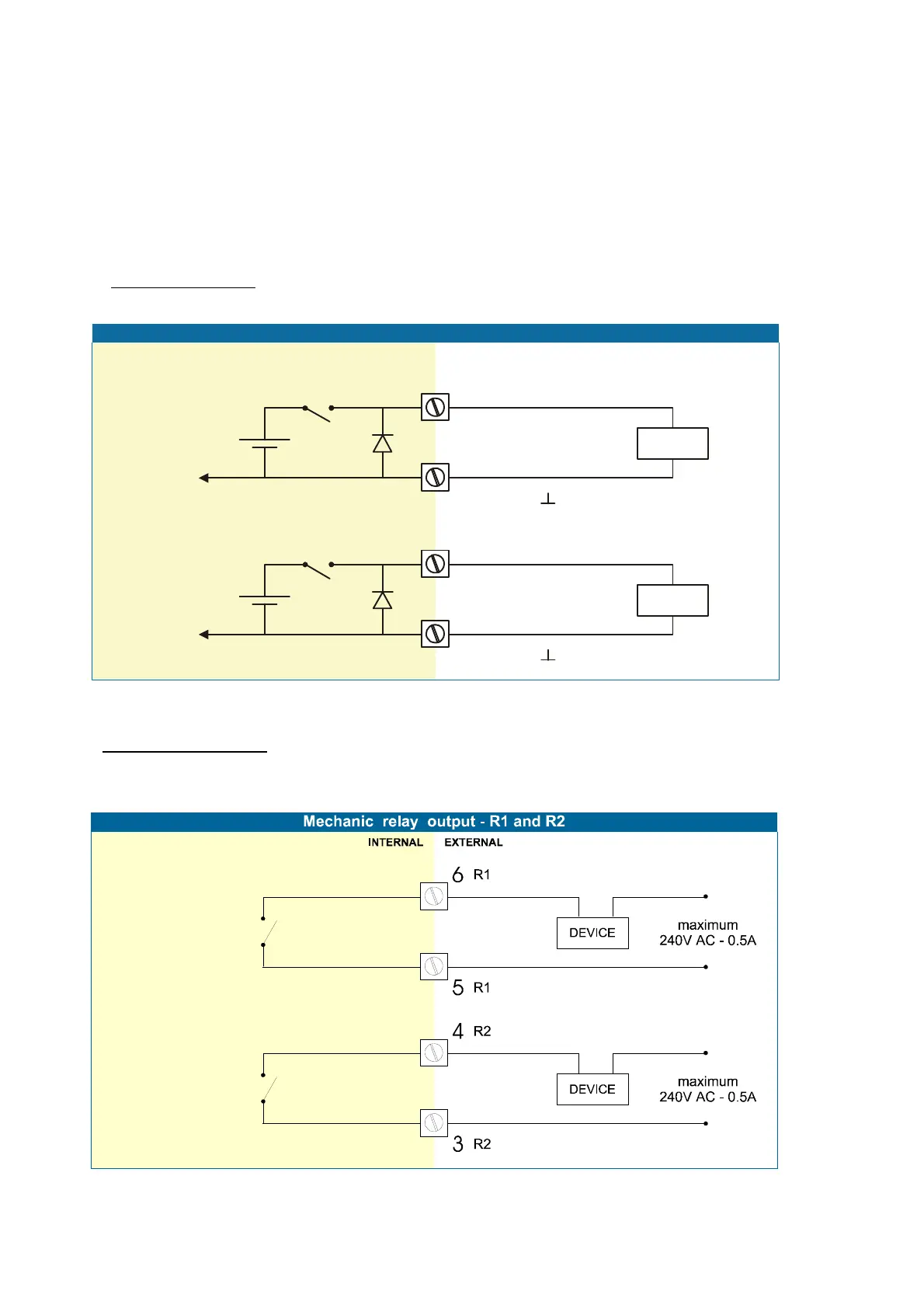

Active output - R1 and R2
6
5
R1
24V DC
max. 50mA
Common ground unit
R1 - GND
DEVICE
+
4
3
R2
24V DC
max. 50mA
Common ground unit
R2 - GND
DEVICE
