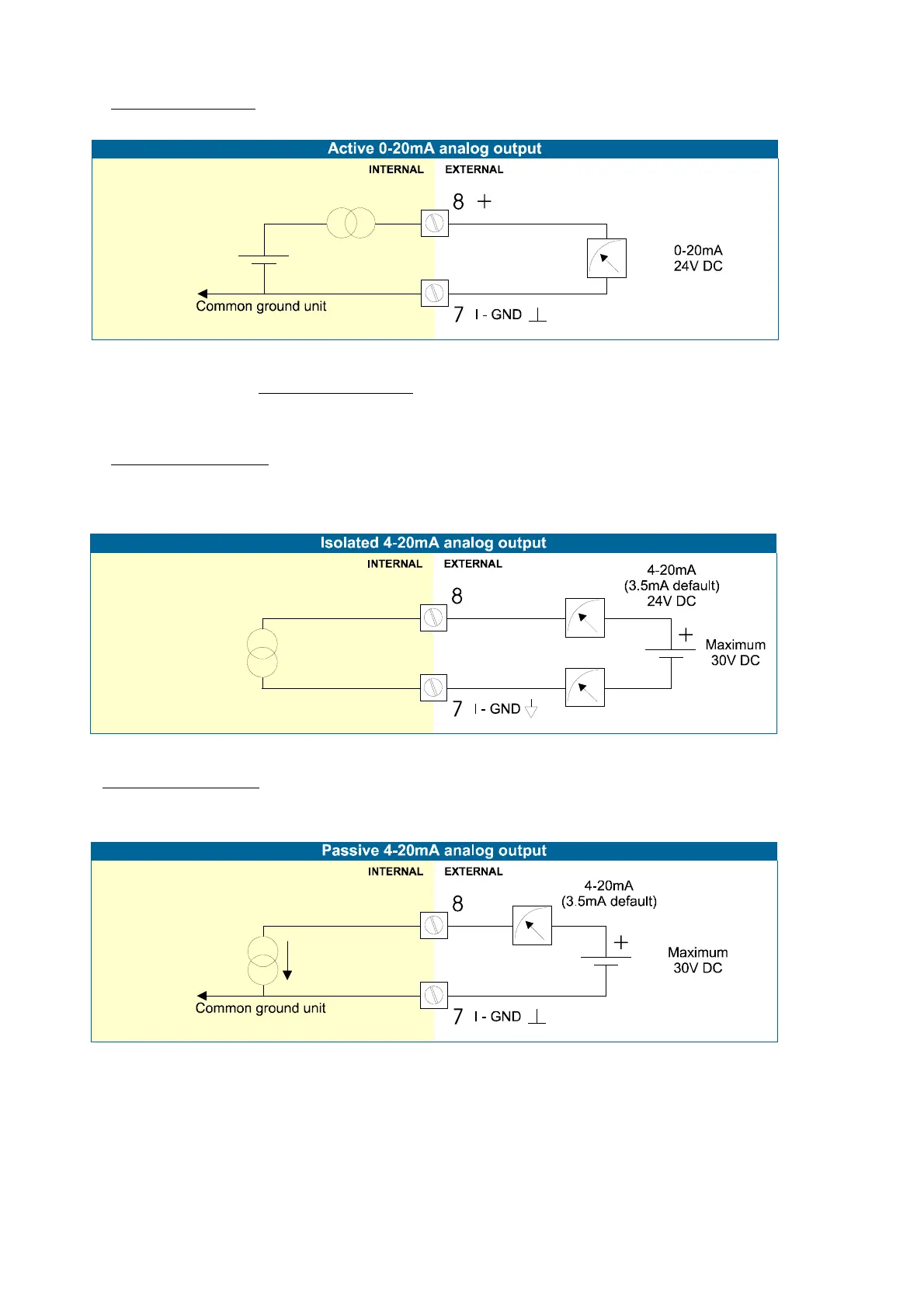

Type AB:
An active 0-20mA signal proportional to the flowrate is available with this option.
Max. driving capacity 1000 Ohm @ 24V DC. (Requires power supply type PD / PF / PM).
Type AF:
For the Intrinsically Safe floating 4-20mA signal: please read Chapter 5.
Type AI:
An isolated 4-20mA signal proportional to the flowrate is available with this option.
When the output is disabled, a 3.5mA signal will be generated on these terminals.
Max. driving capacity 1000 Ohm @ 30V DC.
This option can be battery powered but the life time of the battery is about 2 -3 years.
Type AP:
A passive 4-20mA signal proportional to the flowrate is available with this option. When a power
supply is connected but the output is disabled, a 3.5mA signal will be generated. Max. driving
capacity 1000 Ohm. This output does loop power the unit as well (type PX).
