Terminal 12-14; Flowmeter input B:
Exactly as described for the flowmeter A, several flowmeter signal types can be selected for
flowmeter input B. Please refer to the descriptions per flowmeter type as describer for flowmeter A.
The 9-10-11 do correspond with the terminals 12-13-14.
Terminal 26 - 31: type CB / CH / CI / CT - communication RS232 / RS485 / TTL:
see the manufacturer's plate.
Full serial communications and computer control in accordance with RS232 (length of cable
max. 15 meters) or RS485 (length of cable max. 1200 meters) is possible.
Read the Modbus communication protocol and Appendix C.

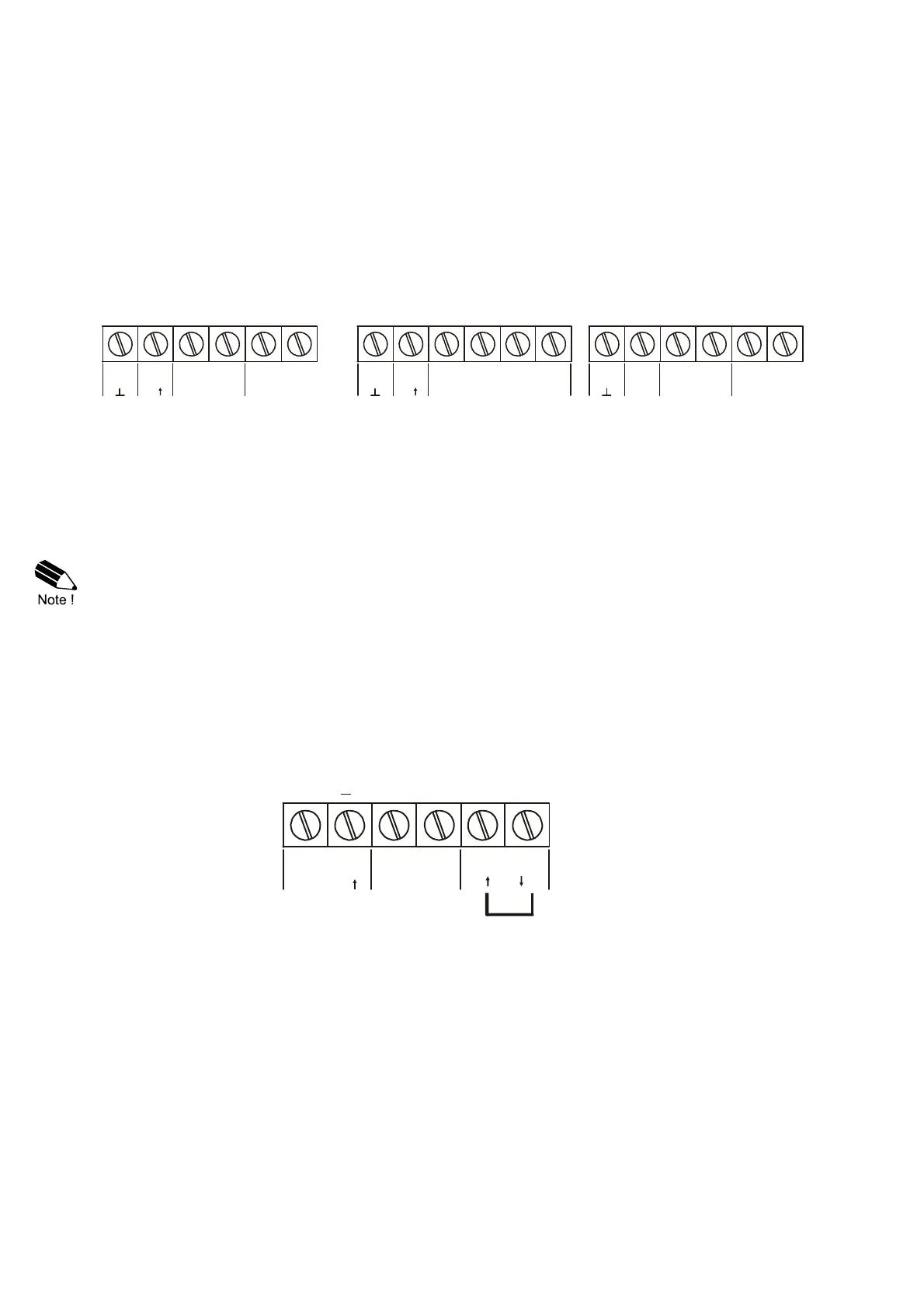

Fig. 10: Overview terminal connectors communication option.
When using the RS232 communication option, terminal 27 is used for supplying the interface.
Please connect the DTR (or the RTS) signal of the interface to this terminal and set it active (+12V).
If no active signal is available it is possible to connect a separate supply between terminals 26
and 27 with a voltage between 8V and 24V.
Terminal 26-31: backlight option - type ZB:
Note: if the unit is supplied with a power supply type PD, PF or PM, the backlight supply is
integrated, so the text following is not applicable.
To power the backlight, provide a 12-24V DC to terminal 26 (-) and 27 (+). An external trimmer
1kOhm trimmer can be used to tune the brightness of the backlight, or if not desired, a short-cut
between these terminals have to be made which will result in the maximum brightness.
Note: Intrinsically Safe as well as 4-wire RS485 communication is not possible in combination with
type ZB.
Fig. 11: Overview terminal connectors backlight option.
26 27 29
RS485 - 2-wire
28
A B+
30 31
Y
26 27
Z
29
RS485 - 4-wire
28
A B+
26 27 29
RS232
28
RXD TXD
30 31 30 31
DTR
+12V
30 3126 27
Power suppply
12-24V DC 10%+
Option t
pe ZB: ad
ustable backli
ht
+
+
+
1kOhm trimmer connection
or short-cut
GND
