110 PLUS and 115
Users Manual
12

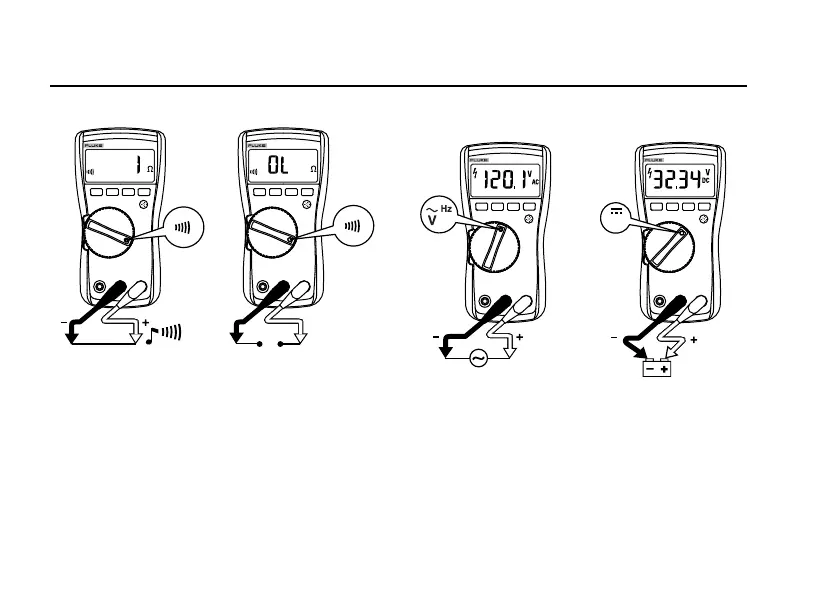

Testing for Continuity
edy06f.eps
Note
The continuity function works best as a fast,
convenient method to check for opens and shorts.
For maximum accuracy in making resistance
measurements, use the Meter’s resistance (e)
function.
Measuring AC and DC Voltage
Volts DC Volts AC
V
edy03f.eps
Using Auto Volts Selection (110 PLUS only)
With the function switch in the position, the Meter
automatically selects a dc or ac voltage measurement based on
the input applied between the V or + and COM jacks.
This function also sets the Meter’s input impedance to
approximately 3 kΩ to reduce the possibility of false readings
due to ghost voltages.
