110 PLUS and 115
Users Manual
14
A
1
2 3
edy08f.eps

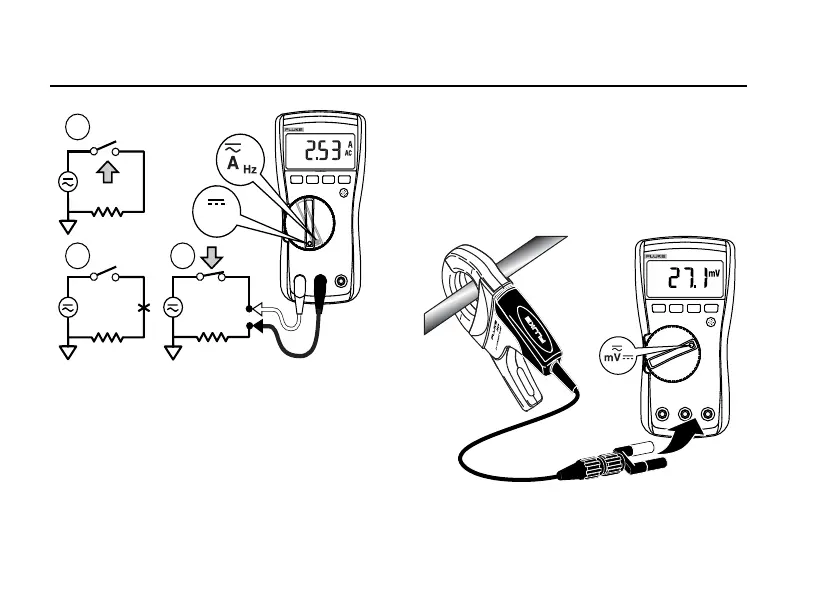

Turn circuit power off, break the circuit, insert the Meter in series
with the circuit, and then turn circuit power on.
Measuring Current above 10 Amps
The millivolt and voltage function of the Meter can be used with
an optional mV/A output Current Probe to measure currents that
exceed the rating of the Meter. Make sure the Meter has the
correct function selected, AC or DC, for your current probe.
Refer to a Fluke catalog or contact your local Fluke
representative for compatible current clamps.
edy14f.eps
