Additional Accessories
An external current transformer is available as an option, see Figure 1. The
transformer has a transformation ratio between 80 and 1200:1 for the measurement of a
single branch in mesh-operated earthing systems. This enables the user to measure on
high voltage pylons without separating the overhead earth wires or earth strips at the
bottom of the pylons. It is also used to measure lightning protection systems without
separating the individual lightning protection wires.
!
200
500
1000
NORMA
A 6805 06211
1
3
2
evx01.eps

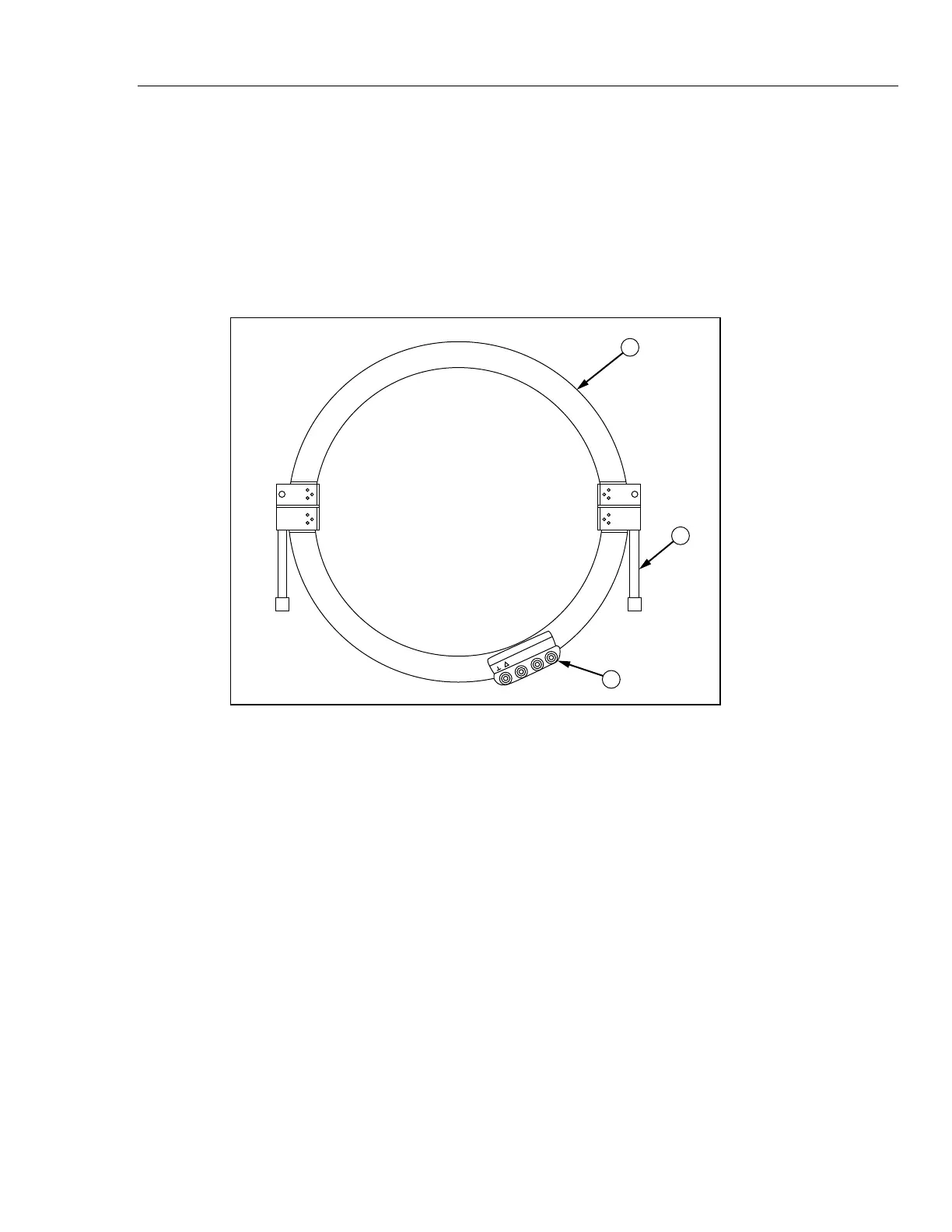

Figure 1. External Current Transformer EI-162BN
 Transformer half (2)
Transformer end faces have bolts that pivot to aid in separating the Transformer
halves. One Transformer end face has a slotted bolt hole that allows the bolt to
pivot out of the end face.
 Transformation ratio connections: ⊥, 200, 500, and 1000
 Fastener (2)

Fluke 1623-2 Specifications

General

USB port	Yes
Control type	Buttons, Rotary
Certification	IEC61326-1, CE
Housing color	Black, Yellow
Display digits	1999 digits
Measuring time	6 s
Maximum voltage	48 V
Display technology	LCD
Number of memory records	1500
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
International Protection (IP) code	IP56
Battery size	AA
Battery voltage	1.5 V
Battery technology	Alkaline
Battery life (measurements)	3000
Number of batteries supported	6

Weight and Dimensions

Depth	187 mm
Width	250 mm
Height	133 mm
Weight	1100 g
