Fluke 17B MAX Calibration Manual

15B MAX/17B MAX
Calibration Manual
8

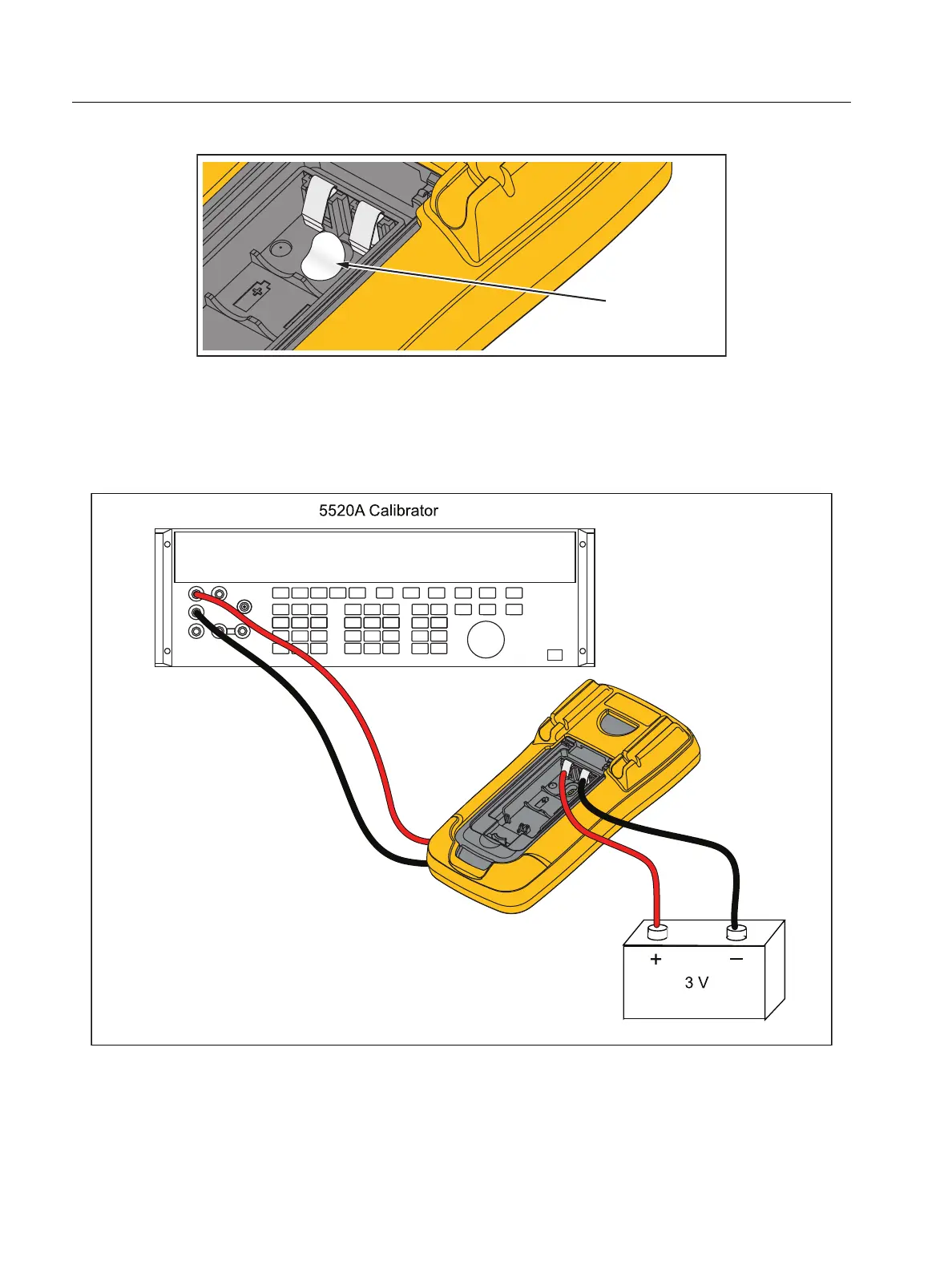

Figure 4. Remove Calibration Sticker
3. See Figure 5 to make the connections to power and the calibrator.
 Use a contact spring to connect a 3 V dc power supply.
 Connect the DUT signal input terminal to the calibrator.
Figure 5. Adjustment Connections
