Fluke 41B User Manual

Functions and Screen Modes
29

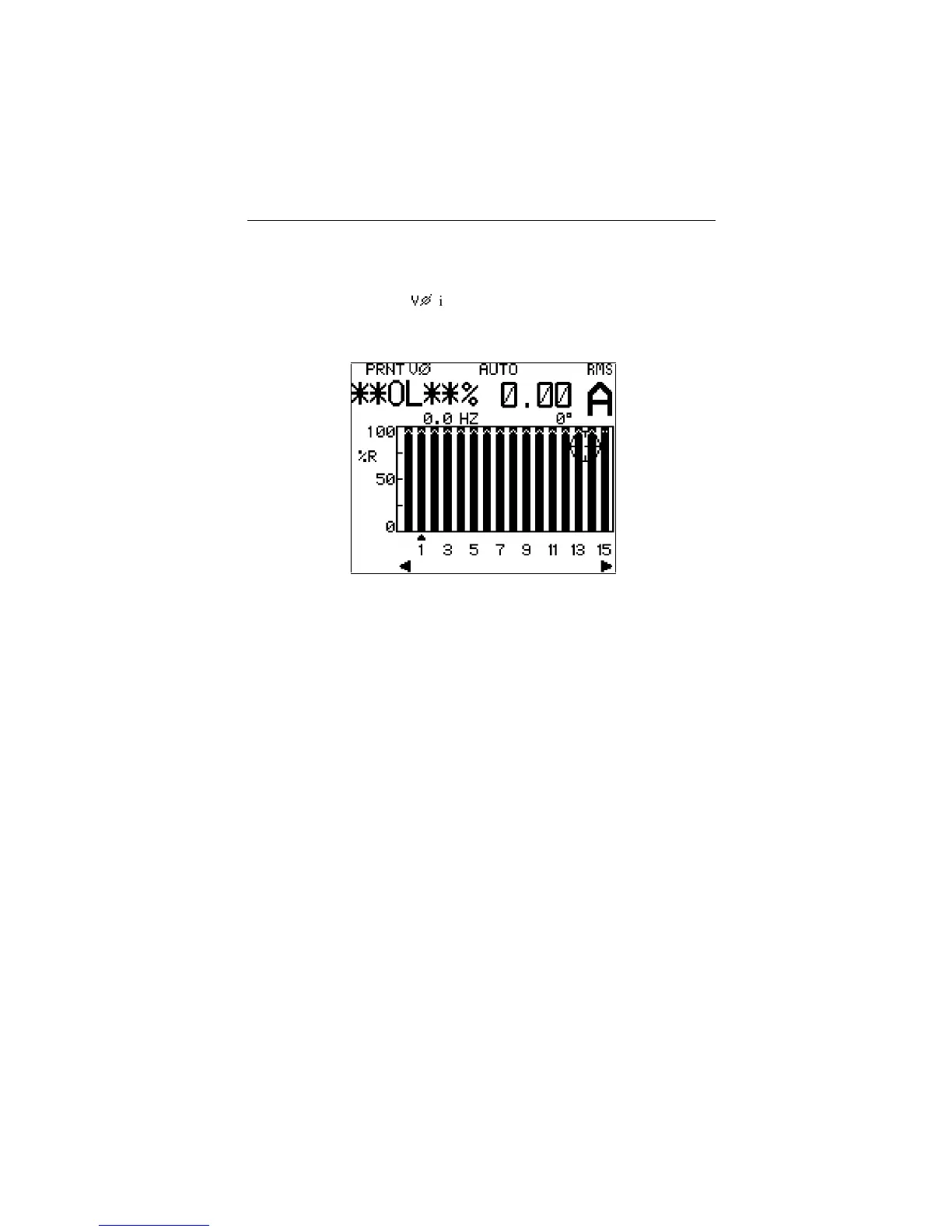

The harmonics overload screen (Figure 12) appears if either of the following
conditions exists:
• There is no input on the phase reference channel. For example, there is
no voltage input when
VP is selected.
• There is no input on one of the measurement channels (volts or amps).
a11s.eps
Figure 12. Harmonics Overload Screen

Fluke 41B Specifications

General

Diode Test	Yes
Continuity Test	Yes
Display	LCD
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
AC Voltage	600V
Current Measurement Range	0.1 µA to 10 A
Frequency Measurement Range	0.1 Hz to 100 kHz
Power Source	Battery
Weight	0.5 kg
Relative Humidity	0% to 95%
