Applications
51
Adjustable Frequency (Speed) Motor Drive
Measure input and output current and current frequency. Refer to Figure 26.
The Tester measures the output current frequency of the drive. (Output
current provides the most stable frequency measurement.) Input power and
harmonic currents can also be measured. Press
f
to select current
AP
for
the display reference.
OUT
POWER HARMONICS
ANALYZER
41B
®
IN
BAC
OUTPUT
213
INPUT
OUTPUT
INPUT
BAC
OUTPUT
213
INPUT
a24f.eps

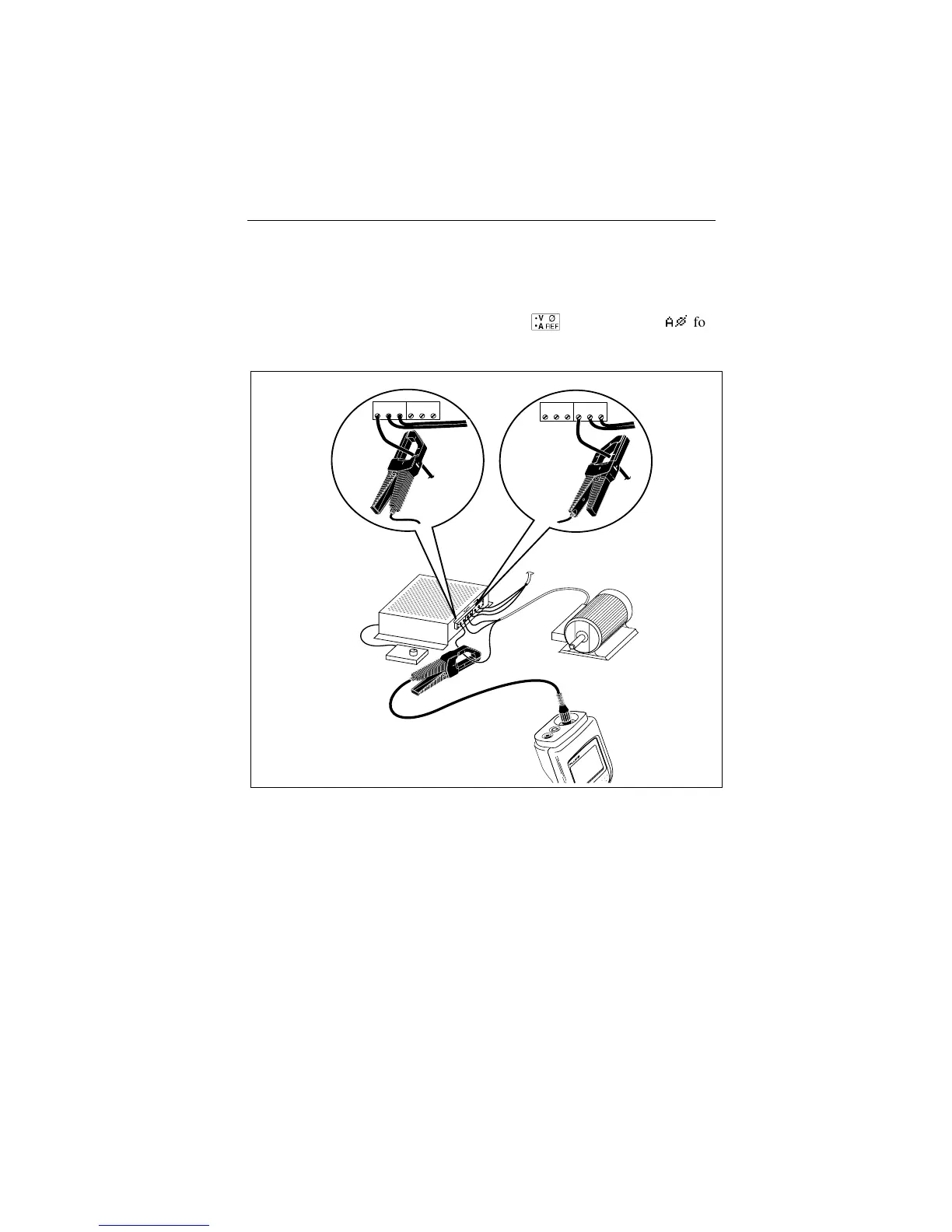

Figure 26. Adjustable Frequency Motor Drive
To Next Page
