772/773/773-II English Instruction Sheet
Page 11
OK
fjv03.emf

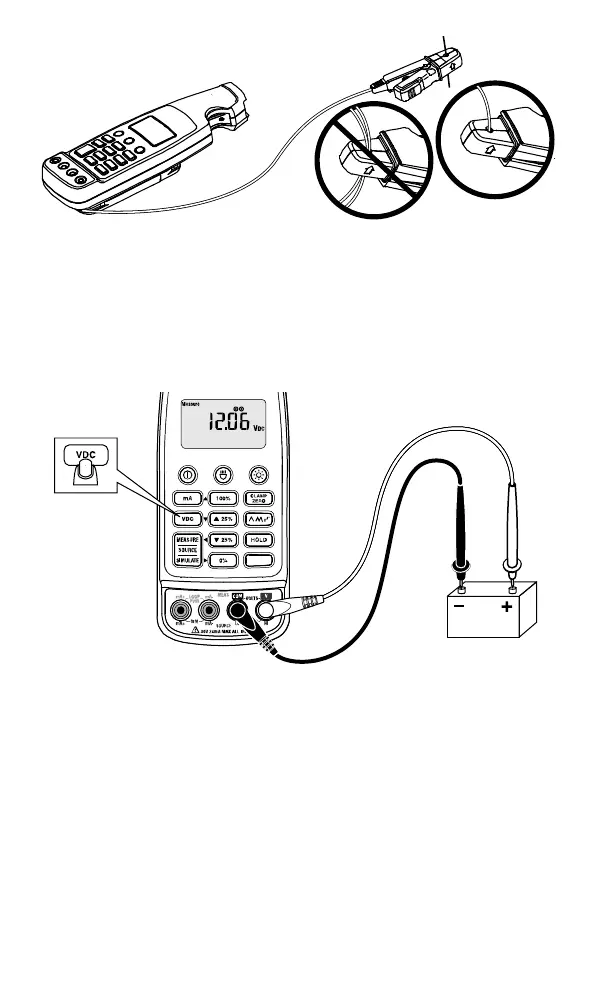

Figure 6. Taking Measurements with the Clamp
To use the test leads for measurements:
1. Insert the test leads into the proper input jacks. See Figure 7.
2. Press the correct button for the measurement.
3. Apply the test leads.
4. Observe the reading on the main display. In mA mode, the
secondary display shows the reading in percentage of span.
HA R T
mA SCALELOOP PWR
mA I N/ OUT
fjv09.emf
Figure 7. Taking Measurements with the Test Leads
Current and Voltage Output Functions
Both Meters provide steady, stepped, and ramped current output for
testing 0-24 mA current loops. Additionally, the 773/773-II provides
voltage output to 10 V. To access these functions, press
T as
necessary.
• Choose Source mode to supply current or voltage.
• Choose Simulate mode to regulate current in an externally powered
current loop.
• Choose Loop Supply mode to power an external device and
measure mA loop current.
