80i-110s Instruction Manual 3
INTRODUCING THE CURRENT PROBE
The Fluke 80i-110s is a clamp-on AC/DC Current Probe that reproduces current
waveforms found in modern commercial and industrial power distribution sys-
tems. The probe's performance is optimized for accurate reproduction of currents
at line frequency and up to the 50th harmonic waveform. The 80i-110s is also
compatible with any instrument capable of millivolt measurements. The Current
Probe (shown in Figure 1) provides the following benefits:
• Accurate AC, DC and AC+DC current measurements for Electrical, Electronic
and Automotive applications.
• Shielded for high noise immunity around electronic motor drives and ignition
systems.
• Wide measurement range from 50 milliamps to 100 amps, useful to 10
milliamps.
• Jaw shaped for easy access to cramped spaces.
• Safety-designed 600 volt insuIated BNC - compatible with Fluke ScopeMeter
£
test tools, Power Harmonic analyzers, and oscilloscopes.
• Selectable output of 10 millivolts per 1 amp for the 100 A range, and 100
millivolts per 1 amp for the 10 A range.

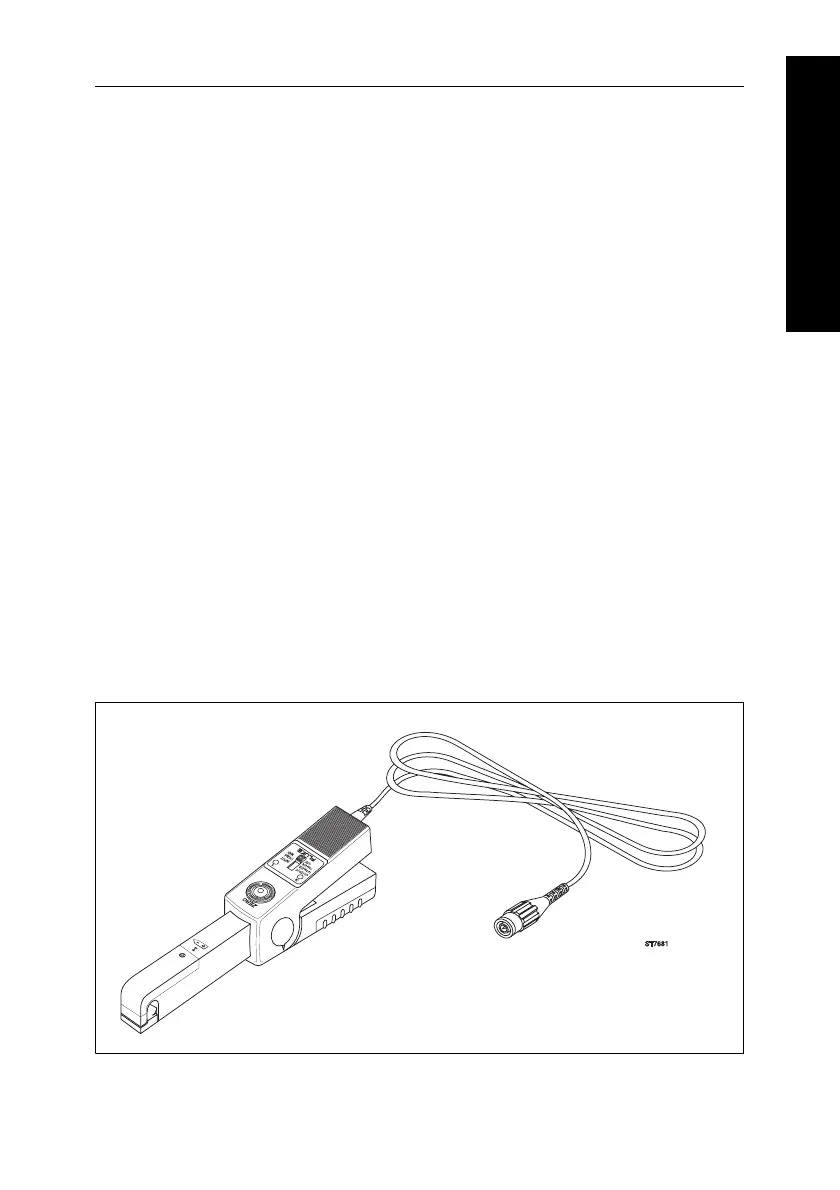

Figure 1. 80i-110s AC/DC Current Probe
