Making Measurements
Measuring Pulse Width
3
3-27
The meter measures pulse width in the 500.00 ms range
up to 70 ms.
To measure pulse width, set up the meter to measure
frequency; then press N two more times. As with the
duty cycle function, you can select which level the meter
uses by pressing [ to trigger on the positive slope or
] to trigger on the negative slope. A typical pulse
width display is shown in Figure 3-18.
You can improve pulse width stability by selecting the
averaging feature. Press M until “AVG” appears in the
display.
tc028f.eps

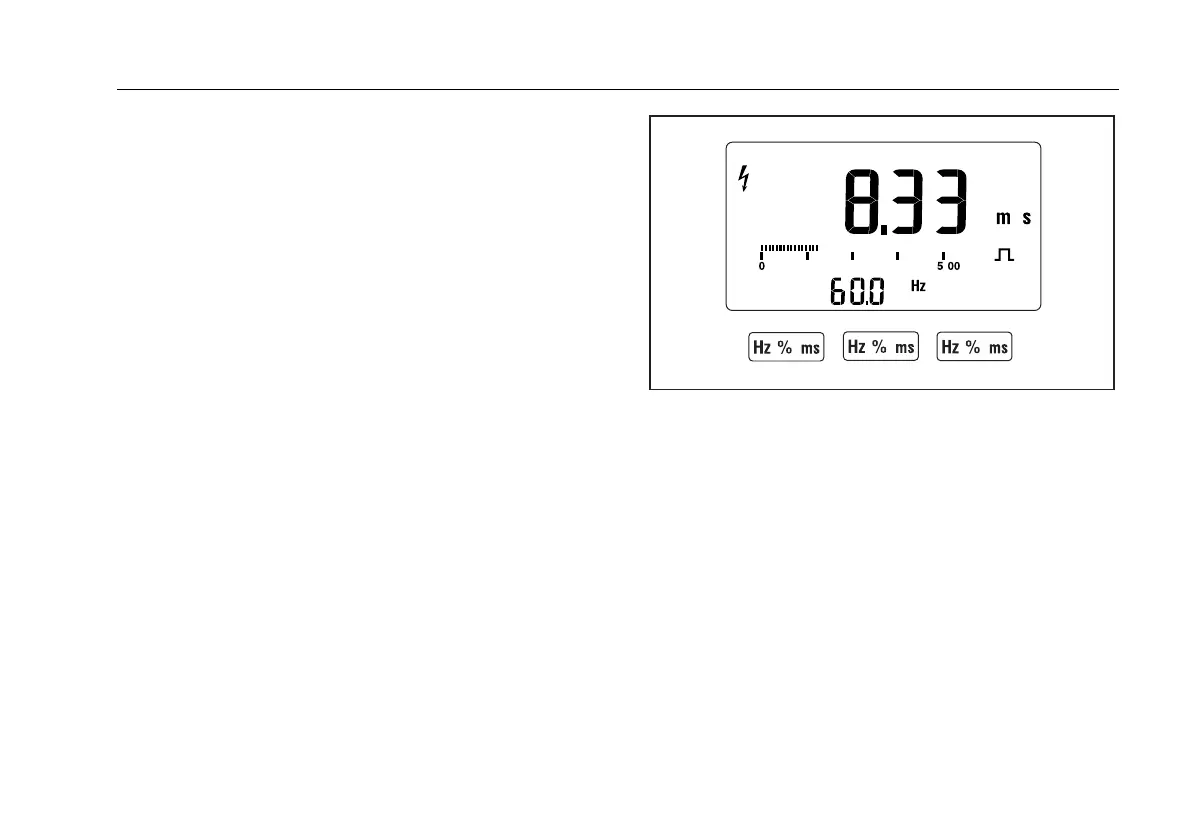

Figure 3-18. Pulse Width Display
