Setting Up the Test Tool
13
Static sensitive
device
Personality
module
ank86f.eps

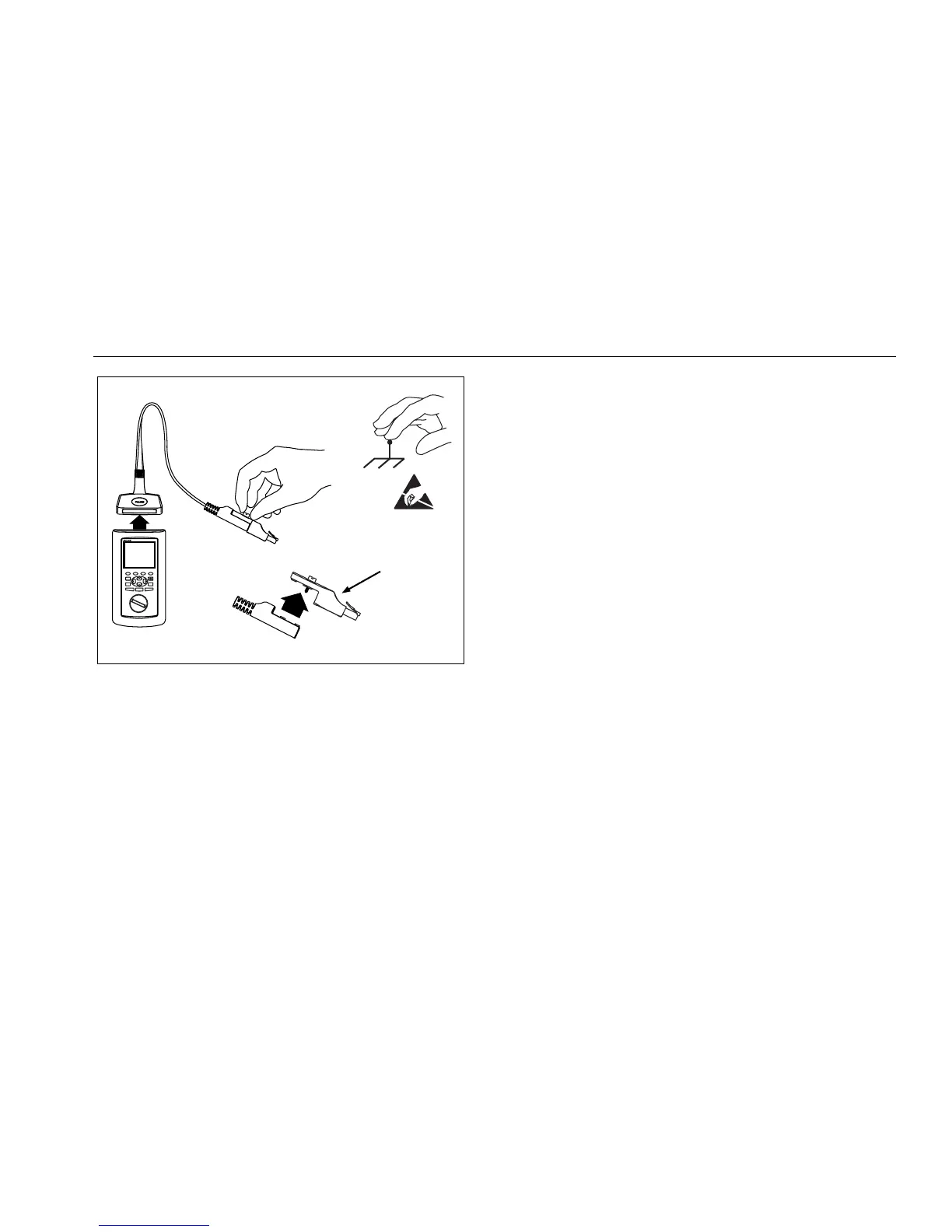

Figure 4. Changing the Personality Module
Setting Up the Test Tool
Powering the Test Tool
Before powering the test tool or remote with the NiMH
battery pack, charge the battery for about 3 hours. To
charge the battery, connect the ac adapter/charger to the
test tool or remote and to ac line power. You can operate
the unit on ac power while the battery charges. A fully-
charged battery typically lasts at least 8 hours.
To check the battery status, turn the rotary switch to
SPECIAL FUNCTIONS; then select
Battery Status.
Note
The ac adapter/charger will not power the test
tool when the battery pack is removed.
