Fluke LinkRunner Pro User Manual

Home – Link Information and Wire Map functions

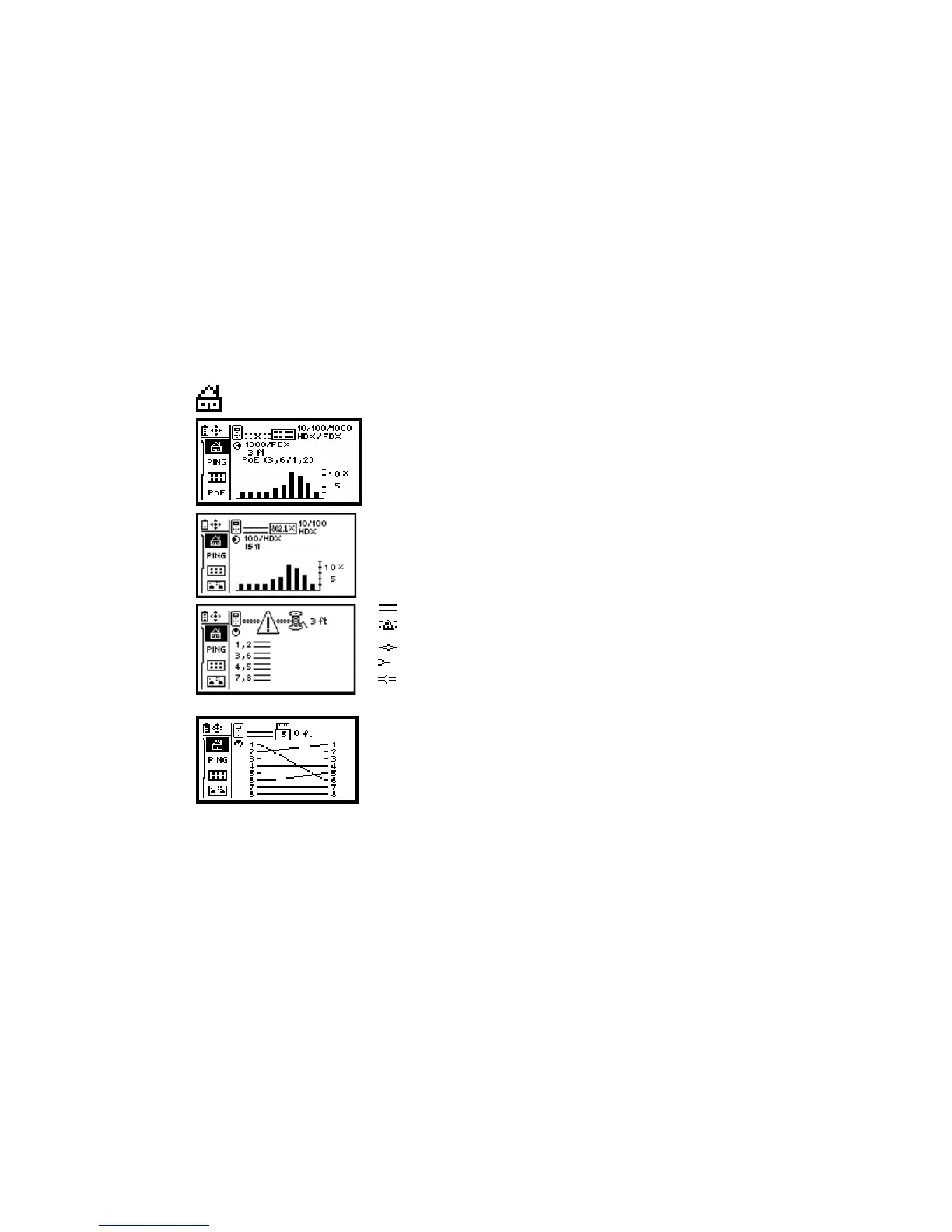

The Home screen displays link or wire map information depending on the
connection. If the RJ-45 Ethernet cable is connected from the RJ-45 LAN port
to your network, LinkRunner Pro will display link information which will
include link, speed/duplex, cable length to the network connection, and
network utilization.
If LinkRunner Pro detects PoE, this screen will display PoE information. Notice
the PoE label and wire pairs are displayed.
This screen is displayed if LinkRunner Pro has successfully linked, and 802.1X
has been detected and authenticated.
Good cable
Unknown cable
Split cable
Shorted cable
Open cable - If the RJ-45 Ethernet cable is not connected to the RJ-45
MAP port on the LinkRunner Pro, a Wireview
TM
Office Locator, or your
network, LinkRunner Pro will display cable information.
If the RJ-45 Ethernet cable is connected from the RJ-45 LAN port to the RJ-45
MAP port (or to a Wireview
TM
Office Locator), LinkRunner Pro will display wire
map information which includes length, open, shorts, and wire pair mapping.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Fluke LinkRunner Pro Specifications

Operating Environment

operating temperature	10 – 40 degrees C
storage temperature	-20 to 60 degrees C
operating humidity	95% relative humidity (non-condensing)

Power

battery type	4 AA batteries
RJ-45 network port maximum voltage	100 V
tone generator digital tone frequency	500 KHz

Weight and Dimensions

weight with 4 AA Alkaline batteries	10 oz
weight with 4 AA LI batteries	8.4 oz
height	5.3 inches
width	3.1 inches
depth	1.3 inches
