Fluke ProcessMeter 787B User Manual

ProcessMeter™
Getting Acquainted with the Meter
7

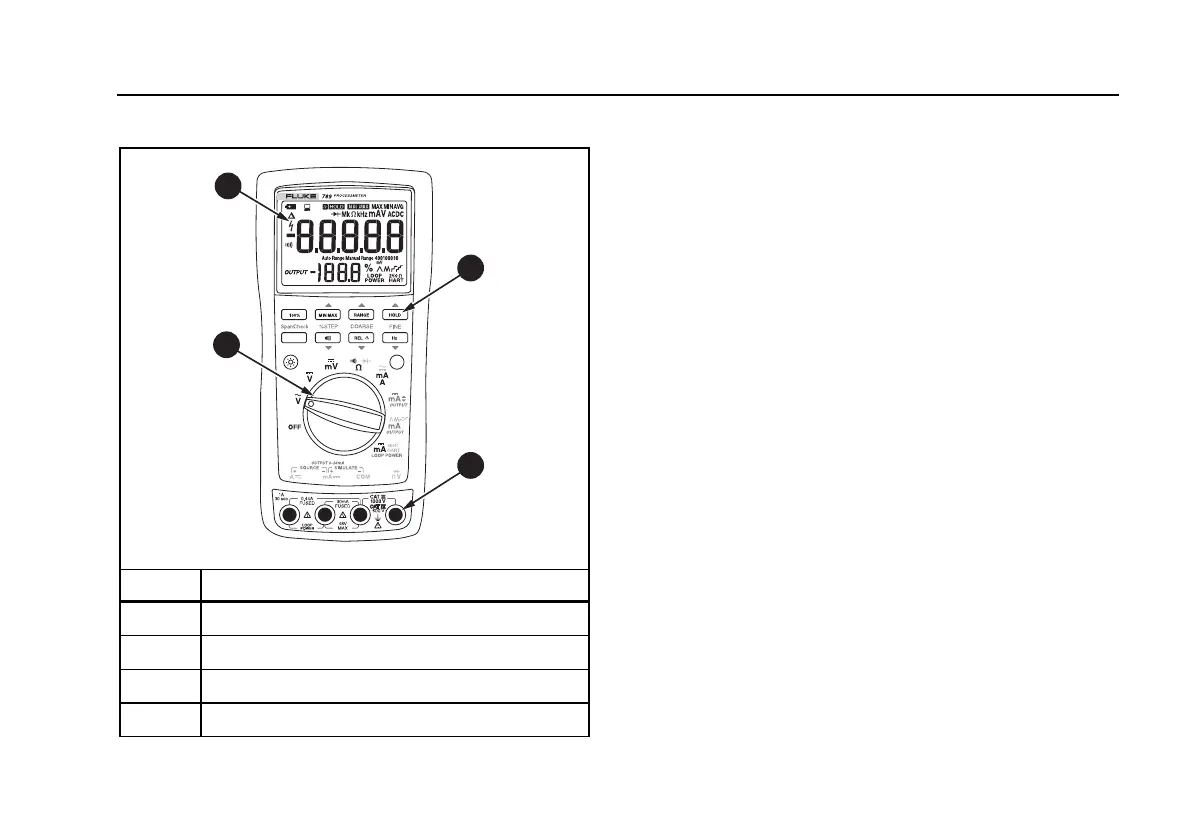

Table 2. 789/787B ProcessMeter
0%
1
2
3
4
anw014f.eps
Item Description
 Display
 Rotary switch
 Pushbuttons
 Input/Output jacks
Getting Acquainted with the Meter
To become familiar with the features and functions of the
meter, study these tables:
• Table 3 describes the input/output jacks.
• Table 4 describes the input functions of the first six
rotary function switch positions.
• Table 5 describes the output functions of the last
three rotary function switch positions.
• Table 6 describes the functions of the pushbuttons.
• Table 7 explains what all the elements of the display
indicate.

Fluke ProcessMeter 787B Specifications

General

Battery life	140 h
Battery size	AA
Battery technology	Alkaline
Number of batteries supported	4
Manual	Yes
Loop voltage	1000 V
Drop proof up to	1 m
Operating vibration	2 G
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	50 mm
Width	100 mm
Height	203 mm
Weight	600 g
