Fluke ProcessMeter 787B - Page 27

ProcessMeter™
Using the Current Output Functions
23
0%
RANGE HOLD
REL
MIN MAX
Hz
100%
789
PROCESSMETER
dc V
Power Supply
40
20
0
100
80
60
COM +24V
anw011f.eps

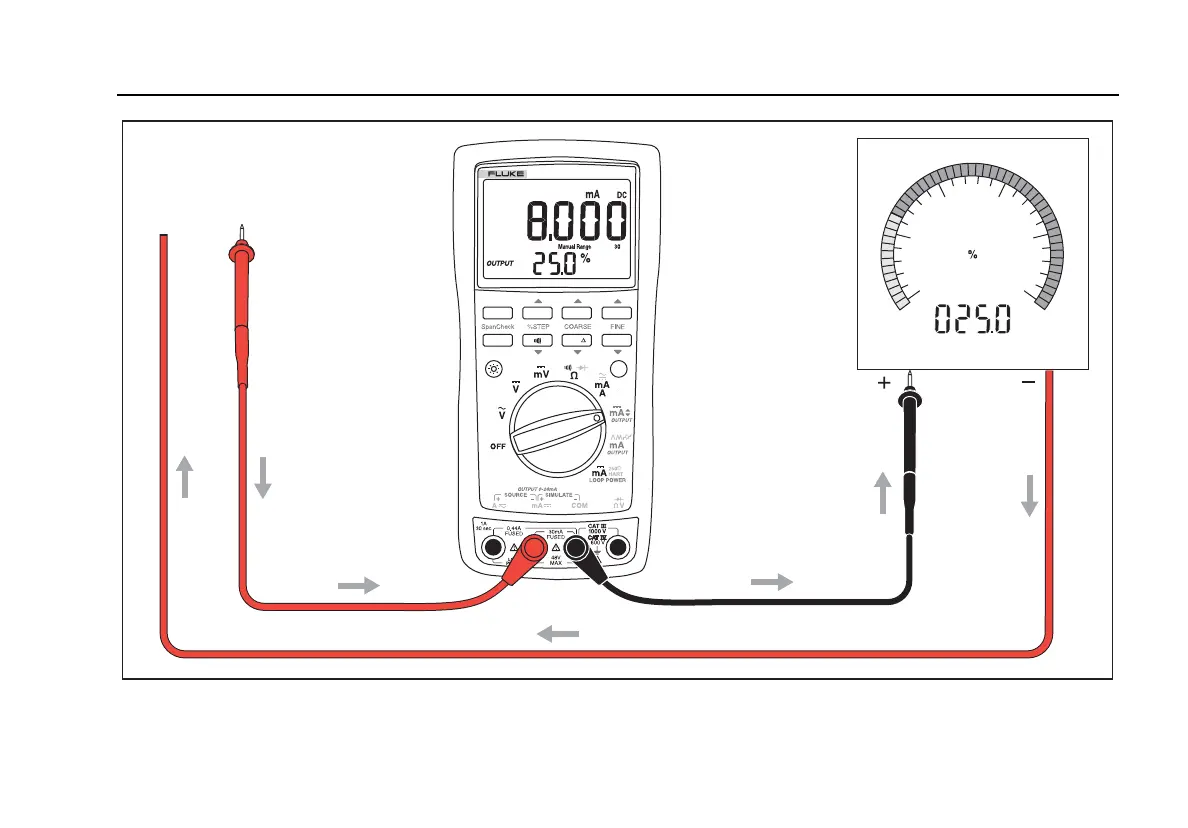

Figure 2. Simulating a Transmitter
