Fluke ScopeMeter 215C User Manual

Fluke 19xB-19xC-2x5C
Service Manual
4-24

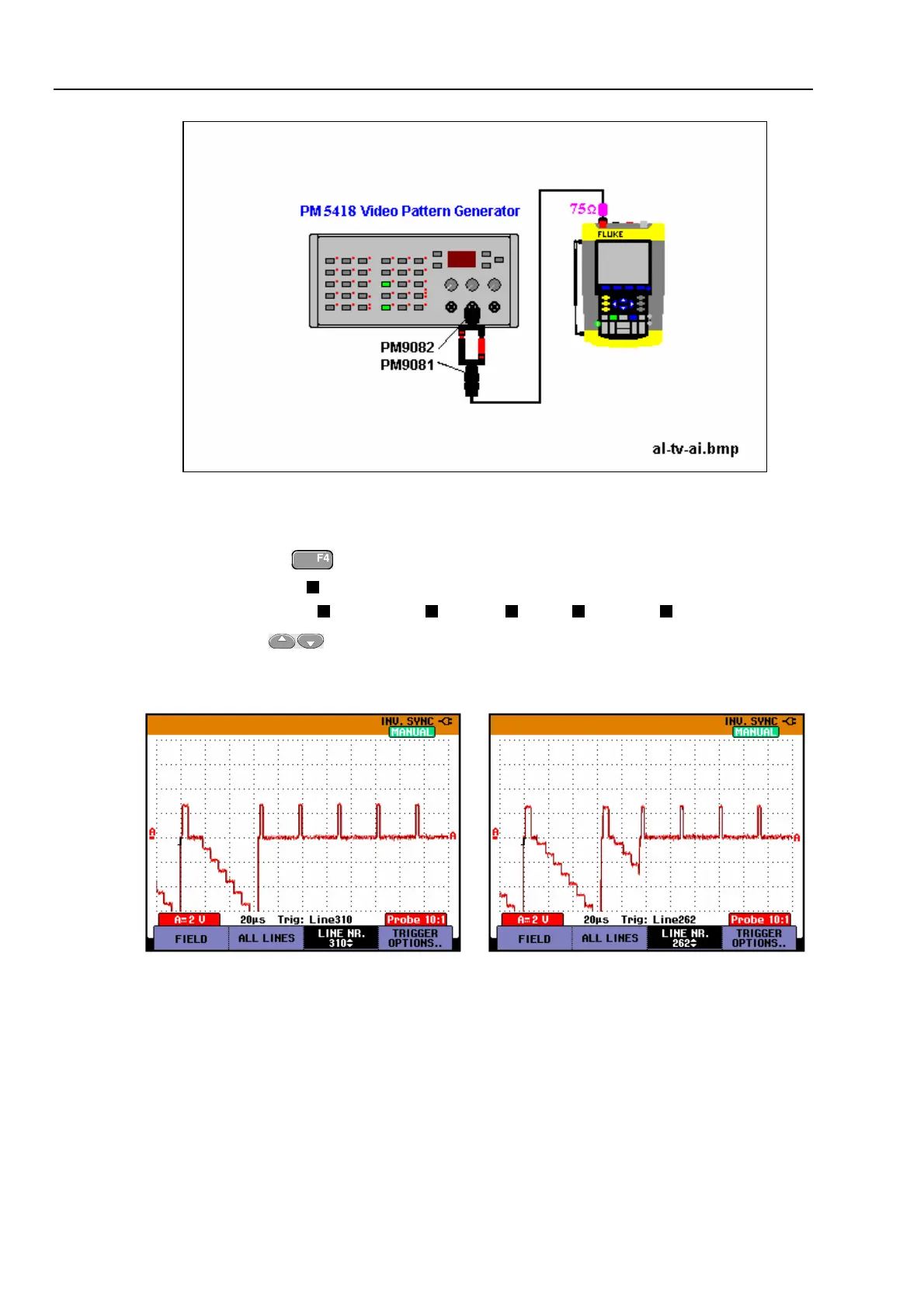

Figure 4-13. Test Tool Input A to TV Signal Generator Inverted
8. Select the following test tool setup:
• Press
to open the Trigger Options menu.
• Choose
VIDEO on A... , then from the shown opened menu choose
Polarity: NEGATIVE | PAL ( or NTSC PALplus SECAM )
9. Using
select line number 310 (PAL or SECAM) or 262 (NTSC)
10. Observe the trace, and check to see if the test tool triggers on line number 310 (PAL
or SECAM, see Figure 4-14), or line number 262 (NTSC, see Figure 4-15).
Figure 4-14. Trace for PAL/SECAM line 310
Negative Video
Figure 4-15. Trace for NTSC line 262 Negative
Video
4.6.14 Video test using SC600 Scope Calibration Option
You can skip this test if you did test 4.6.13 Video test using the Video Pattern
Generator.
Only one of the systems NTSC, PAL, PALplus, or SECAM has to be verified.

Fluke ScopeMeter 215C Specifications

General

Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Input Channels	2
Display	Color LCD
Vertical Resolution	8 bits
Timebase Range	5 ns/div to 100 s/div
Input Coupling	AC, DC, GND
Vertical Sensitivity	2 mV/div to 100 V/div
Battery Life	4 hours
Input Impedance	1 MΩ
Safety Rating	CAT IV 600 V
Max Input Voltage	1000 V (DC + peak AC)
Operating Temperature	0 °C to +50 °C
