6-4
4. Unscrew the two screws that lock the bottom case.
5. Lift the bottom case at the lower side to remove it.
6. Lift out the battery pack (Figure 6-4).
7. Unplug the cable leading to the Main PCA (pull the cable gently backwards).
ST8563.WMF
ST8568.WMF

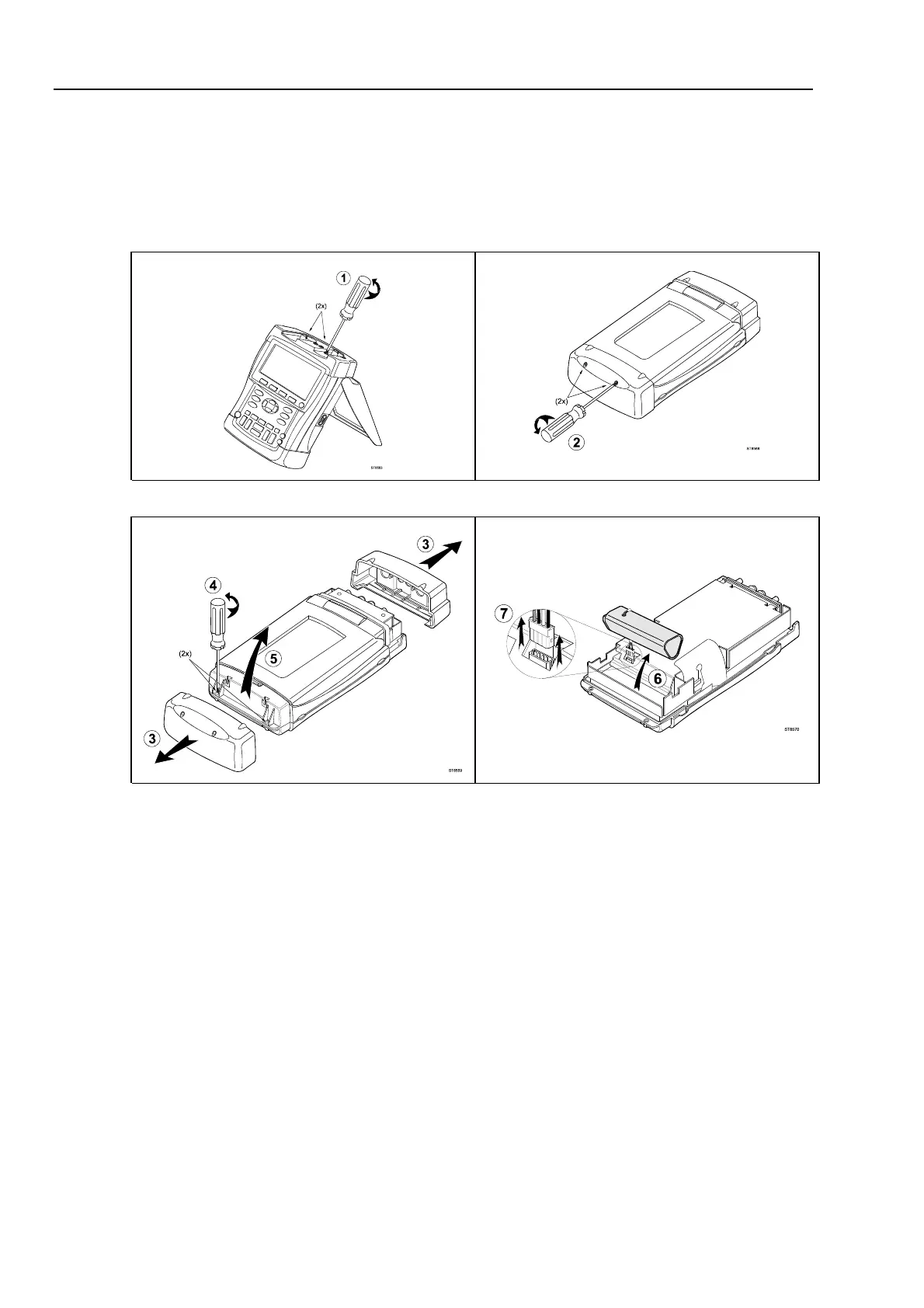

Figure 6-1. Loosen 2 Input Cover Screws Figure 6-2. Loosen 2 Bottom Holster Screws
ST8569.WMF
ST8570.WMF
Figure 6-3. Opening the Test Tool Figure 6-4. Removing the Battery Pack
