T+/T+PRO English Instruction Sheet
Page 10
Testing for Continuity
XW Warning
To avoid electrical shock:
Make sure the power to the circuit is turned off and
all capacitors are discharged.
If the beeper is disabled, the Tester will not beep and
only P will light. On the T+ PRO, the display will
also show F.
To measure continuity, turn off circuit power and connect the
probes to the circuit under test. Continuity (a resistance less than
20 kΩ) is indicated by the beeper and a lighted P. If the beeper
is disabled, it will not sound during this test. The T+PRO shows F
on the LCD. If the resistance is greater than 20 kΩ, the beeper will
not sound and P will not light. Refer to Figure 3.
open
CONTINUITY
CONTINUITY
48
24
12
CONTINUITY
CONTINUITY
48
24
12
eqc02f.emf

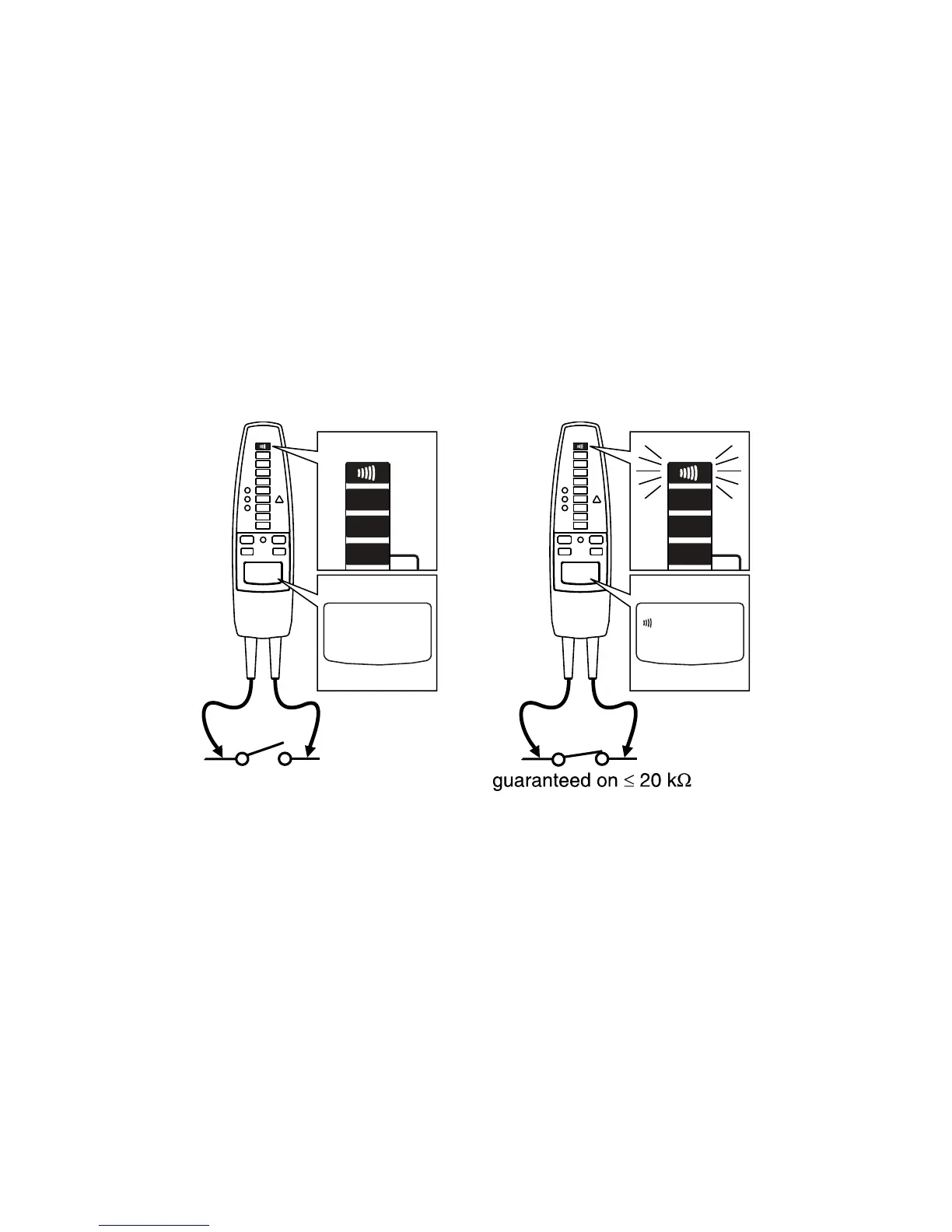

Figure 3. Continuity Test
