Transmitter Setting
1 Your transmitter must support "Fail-Safe" Setting the all the channel value of fail-safe by
yourself. Otherwise Fail-safe is not available.
2、Your transmitter working mode is "AIRPLANE"
3、All channels of the transmitter should work independently, disable Throttle curve and
Pitch curve
4、You need at least a 5 channel 3 segment switch to be used as a control mode switch, and
a 2channel 2 segment switch to stop and start the motor.
5.Mechanical setup first ，servo arms are 90 degree to the shaft and all the trims and Sticks
are at the centre. it should be 0 pitch at mid stick5

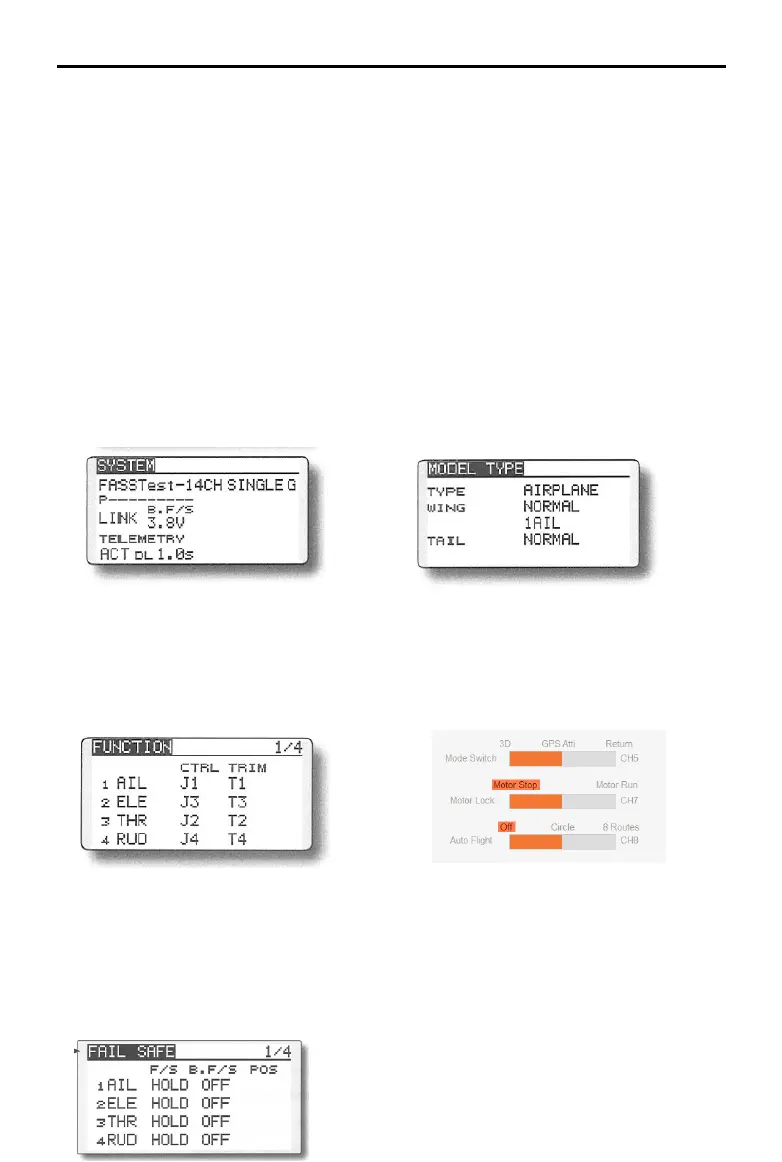

For Example as Futaba 14SG
1、Setting 7008 receiver as mode B(S.BUS 1), and Connect the flight controller to the S.BUS 1
interface of the receiver
2、The transmitter and the receiver are linked, set a new model , set as airplane model. no
mixing mode
H1
user manual
3、LINKAGE MENU --- FUNCTION 5 channel is set to 3-segment switch (SA),
corresponding to the Return mode --- GPS mode --- 3D manual mode; 7-channel is set to
2-segment switch (SF), corresponding to the shutdown of the motor And start; 8-channel is
set to 3-segment switch (SB), corresponding to the shutdown of semi-automatic flight ---
one-key circle fly-8-flight; 9-channel is set to 2-segment switch (SC), corresponding to
one-key reverse Fly forward and backward.
4、Enter FAIL SAFE mode and turn on 5-channel F / S. Turn the transmitter's 5-channel
switch (SA) to the Return, and press and hold the "RTN" key for 1 second at the POS
position. Then return to the main interface and observe in the software assistant software.
When the remote control is turned to the GPS position, turn off the remote control. Will the
mode switch prompt the loss of the remote control signal? Will other brands of remote
control automatically jump to the home position Bit, 7 channels stay on start.
