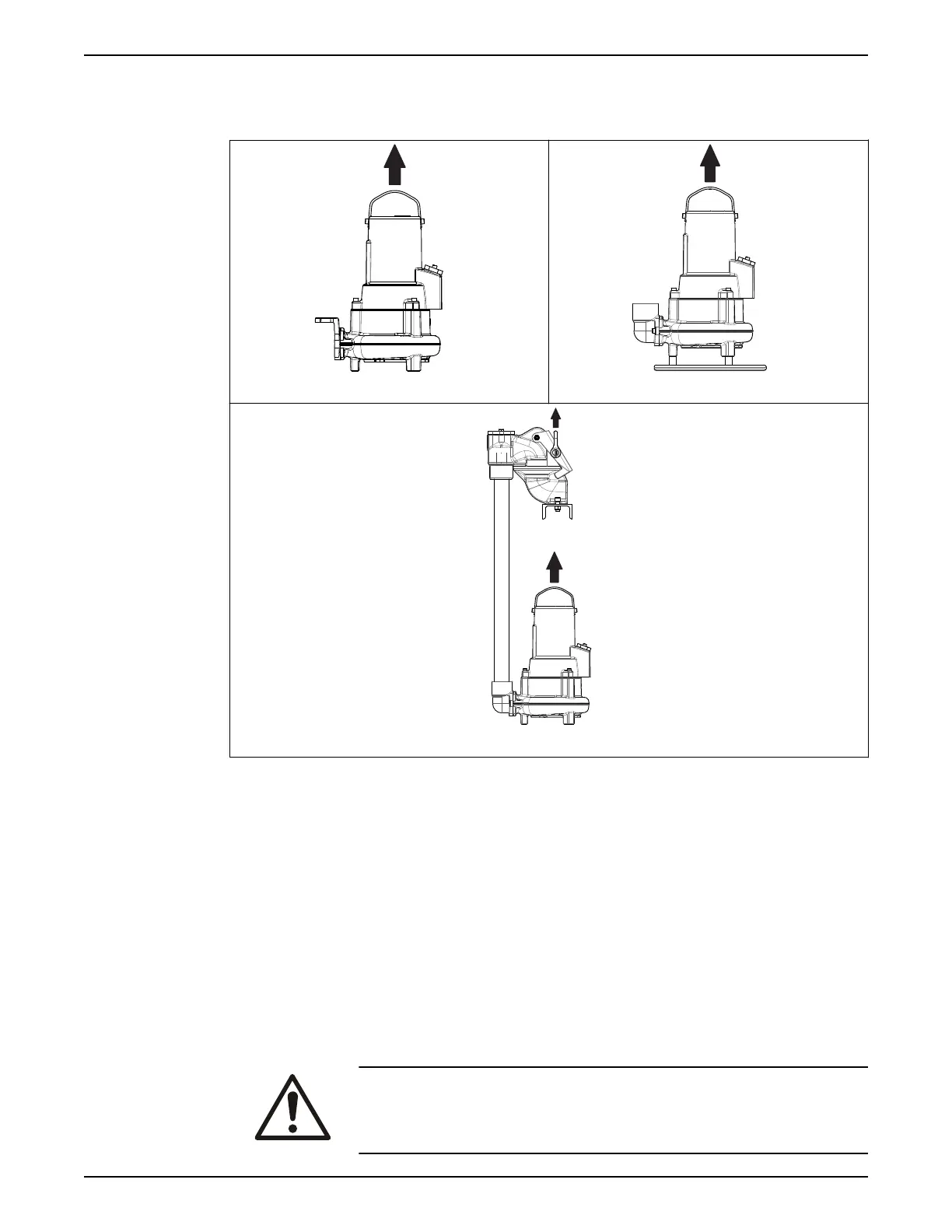

Lifting points
The following images show the lifting points for the different installation types. For more
information about the installation types, see Installation on page 17.
Figure 1: P- and X-installation
Figure 2: S- and F-installation
Figure 3: H-installation
Lifting equipment
Lifting equipment is always required to handle the unit. The lifting equipment must fulfill
the following requirements:
• The minimum height between the lifting hook and the floor must be sufficient to lift the
unit. Contact a Xylem representative for more information.
• The lifting equipment must be able to hoist the unit straight up and down, preferably
without the need for resetting the lifting hook.
• The lifting equipment must be correctly anchored and in good condition.
• The lifting equipment must support the weight of the entire assembly. Only authorized
personnel may use the lifting equipment.
• Two sets of lifting equipment must be used to lift the unit for repair work.
• The lifting equipment must be dimensioned to lift the unit with any remaining pumped
media in it.
• The lifting equipment must not be oversized.
CAUTION: Crush Hazard
Over-dimensioned lifting equipment can lead to injury. A site-specific
risk analysis must be done.
2 Transportation and Storage
Flygt 3069 Installation, Operation, and Maintenance Manual 9
