• The stator incorporates three thermal contacts connected in series that activate the
alarm and stops the pump at overtemperature
• The thermal contacts open at 125°C (257°F) or 140°C (284°F). For more information,
see Technical Reference on page 58.
• Ex-approved pumps must have thermal contacts connected to the control panel.
• The sensors must be connected to either the MiniCAS II monitoring equipment or an
equivalent equipment.
• The monitoring equipment must be of a design that makes automatic restart
impossible.
Optional sensors
FLS FLS is a miniature float switch for detection of liquid in the stator housing. Due to its
design it is best suited for pumps in a vertical position. The FLS sensor is installed in
the bottom of the stator housing.
3.3 The data plate
The data plate is a metal label that is located on the main body of the products. The data
plate lists key product specifications. Specially approved products also have an approval
plate.
WS011207A
8
7
6
5
4
1312 14 17 18 1916159 10 11
22
21
20
23
24
2
3
1
25
1. Curve code or Propeller code
2. Serial number
3. Product number
4. Country of origin
5. Additional information
6. Phase; type of current; frequency
7. Rated voltage
8. Thermal protection
9. Thermal class
10.Rated shaft power
11.International standard
12.Degree of protection
13.Rated current
14.Rated speed
15.Maximum submergence
16.Direction of rotation: L=left, R=right
17.Duty class
18.Duty factor
19.Product weight
20.Locked rotor code letter
21.Power factor
22.Maximum ambient temperature
23.Read installation manual
24.Notified body, only for EN-approved Ex products
25.WEEE-Directive symbol

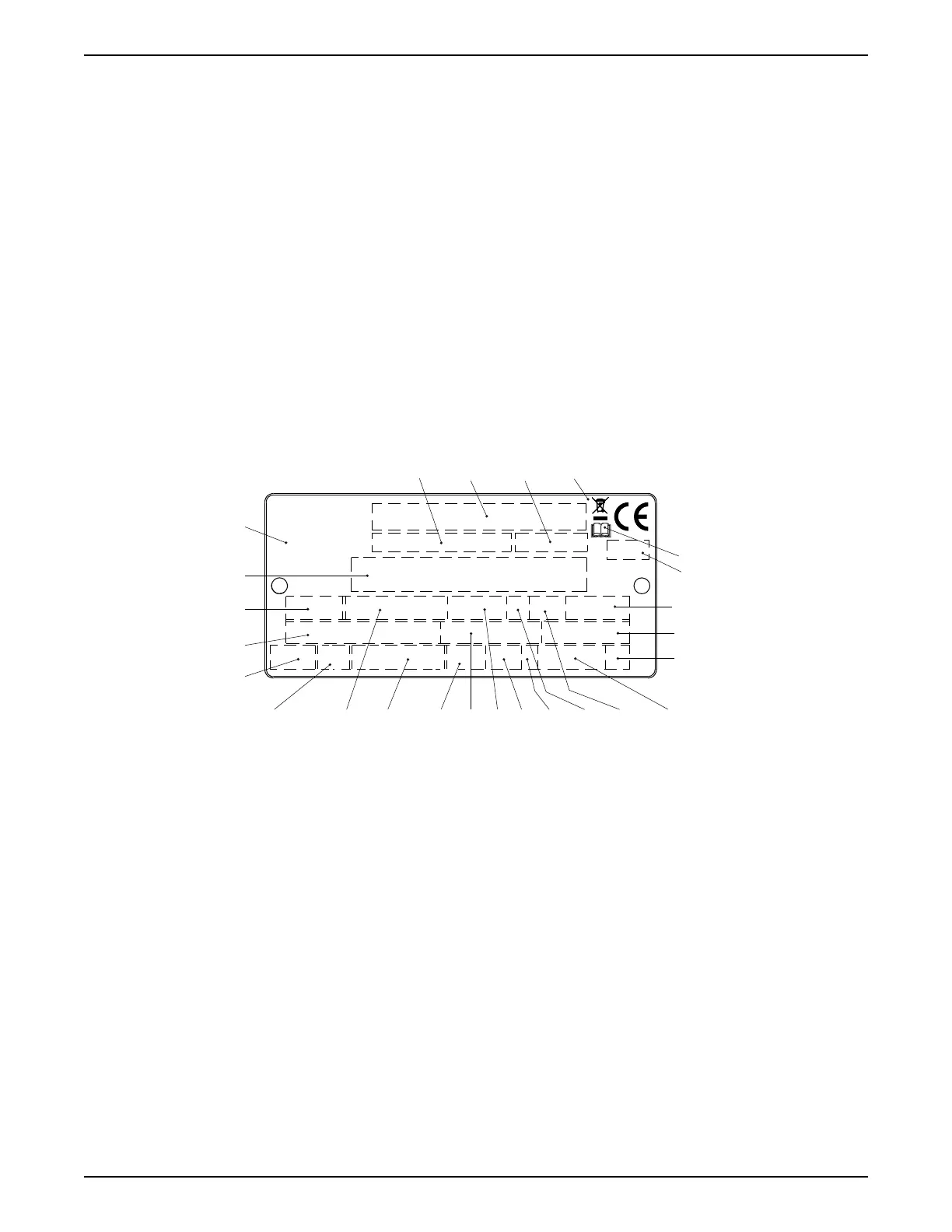

Figure 4: The data plate
