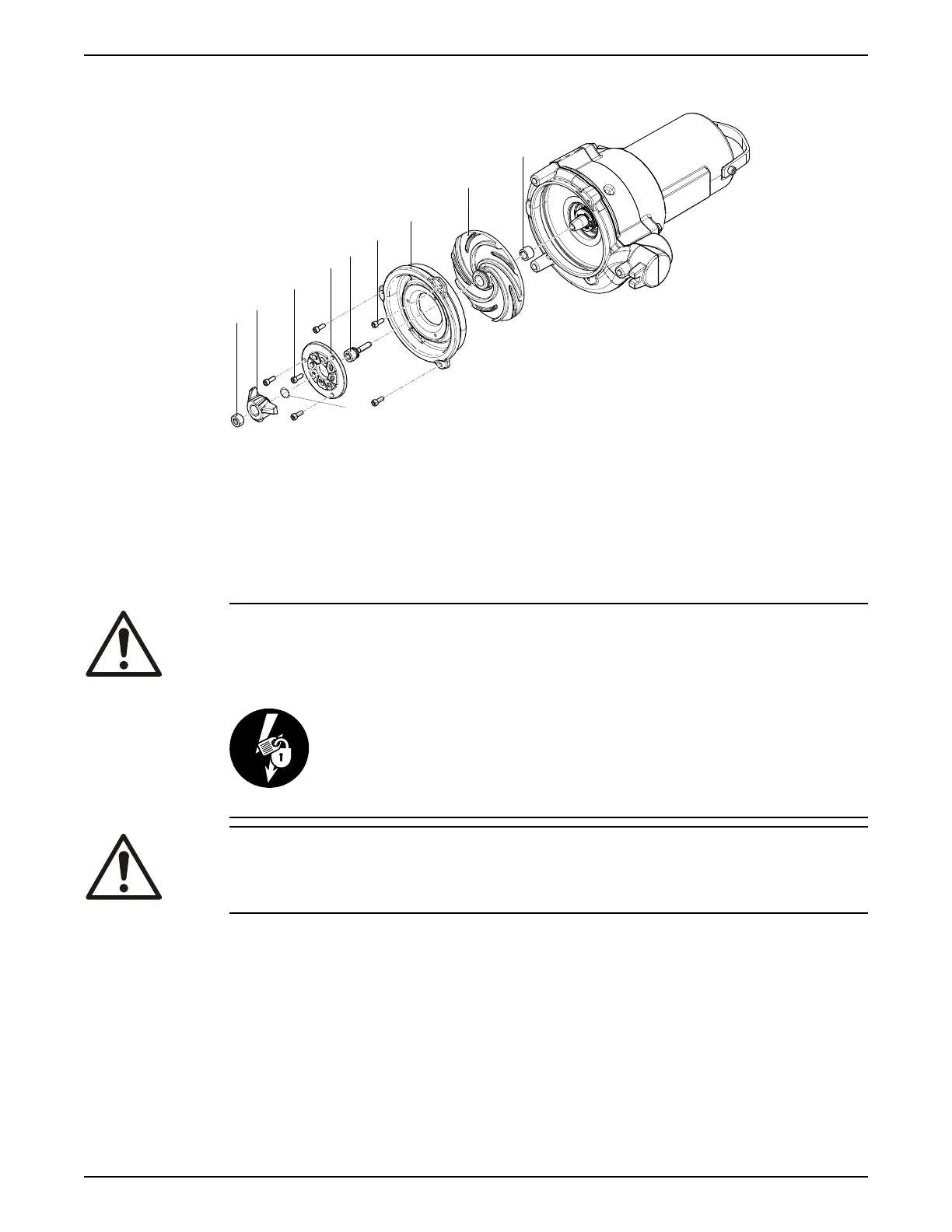

6.7 Replace the M-impeller and the cutting wheel
WS009610B
1
2
3
4
5
6
7
8
9
10
1. Set screw
2. Cutting wheel
3. Screws
4. Cutting ring
5. Adjustment screw
6. Screws
7. Suction cover
8. Impeller
9. Sleeve
10.Adjustment washer, plastic shim
6.7.1 Remove the cutting wheel
DANGER: Crush Hazard
Moving parts can entangle or crush. Always disconnect and lock out power before
servicing to prevent unexpected startup. Failure to do so could result in death or serious
injury.
CAUTION: Cutting Hazard
Worn parts can have sharp edges. Wear protective clothing.
1. Prevent the cutting wheel from rotating, and remove the set screw.
2.
Prevent the adjustment screw from rotating, and remove the cutting wheel from the
adjustment screw.
6.7.2 Remove the M-impeller
1. Remove the screws and the cutting ring.
2. Remove the screws and the suction cover.
3. Remove the adjustment screw.
4. Remove the impeller and the sleeve.
