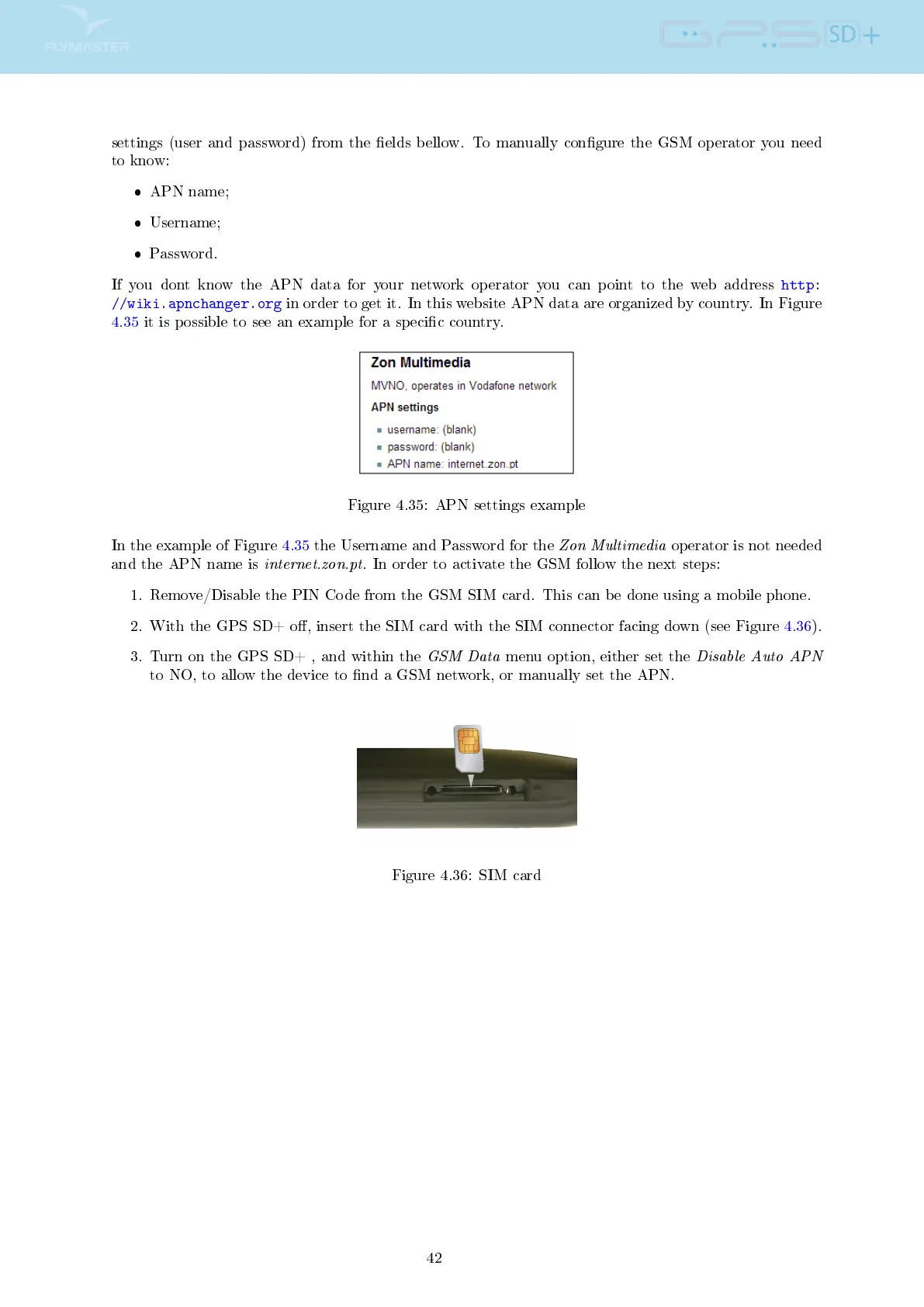

settings (user and password) from the elds bellow. To manually congure the GSM operator you need
to know:
APN name;
Username;
Password.
If you dont know the APN data for your network operator you can point to the web address
http:
//wiki.apnchanger.org
in order to get it. In this website APN data are organized by country. In Figure
4.35 it is possible to see an example for a specic country.
Figure 4.35: APN settings example
In the example of Figure 4.35 the Username and Password for the
Zon Multimedia
operator is not needed
and the APN name is
internet.zon.pt
. In order to activate the GSM follow the next steps:
1. Remove/Disable the PIN Code from the GSM SIM card. This can be done using a mobile phone.
2. With the GPS SD+ o, insert the SIM card with the SIM connector facing down (see Figure 4.36).
3. Turn on the GPS SD+ , and within the
GSM Data
menu option, either set the
Disable Auto APN
to NO, to allow the device to nd a GSM network, or manually set the APN.
Figure 4.36: SIM card
42
