3

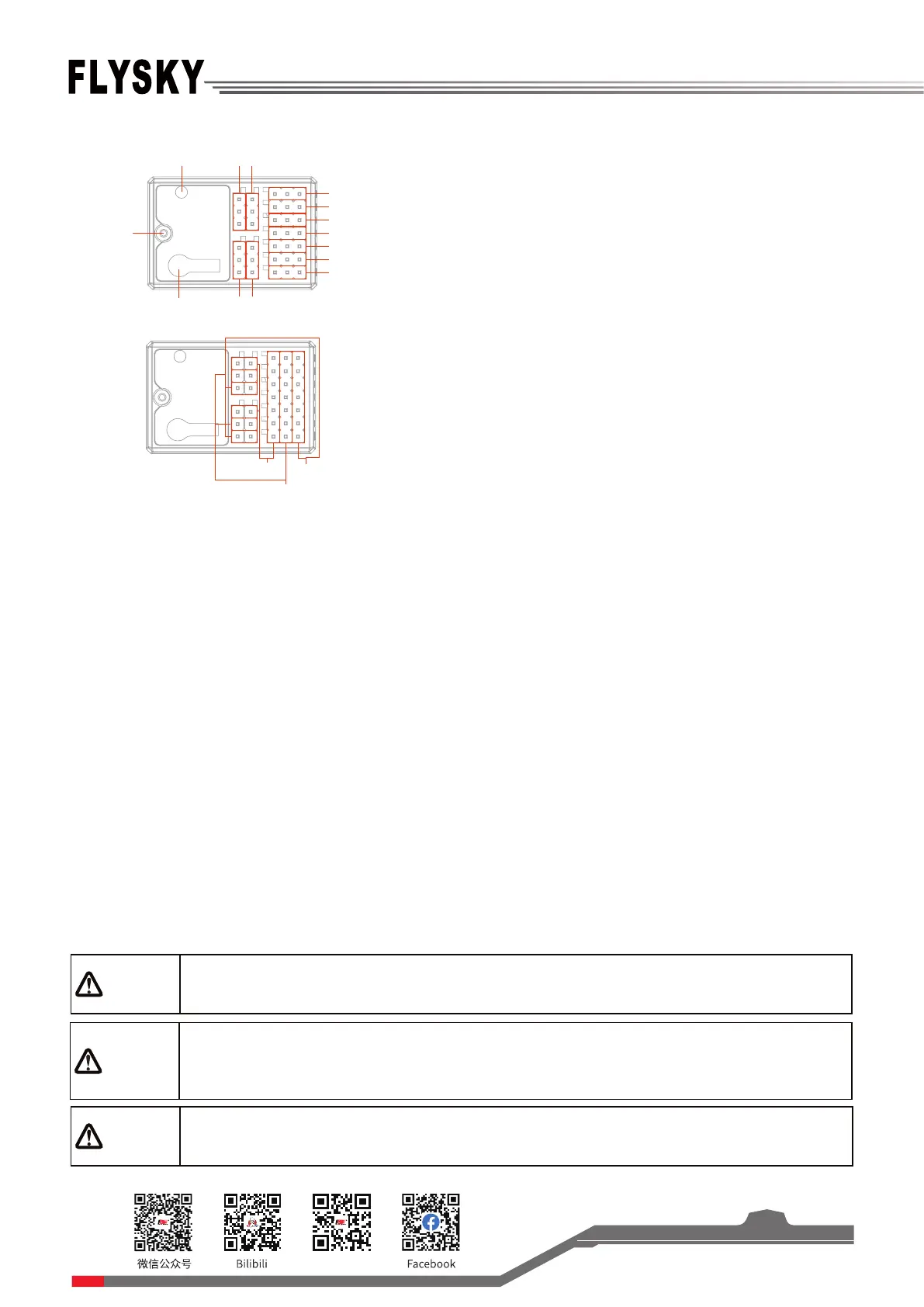

2.2 Receiver Overview
2.2.1 Status LED
The status LED indicates the power supply state of the receiver and its working state.
O󽗈: The receiver is not powered on.
Light on in red: The receiver is connected to the power supply. It works normally.
Fast 󽗊ashing: The receiver is in the bind mode.
Slow 󽗊ashing: The LED 󽗊ashes slowly when the receiver is powered o󽗈, unbound, or no signal.
2.2.2 Interface
All the interfaces are 2.54 mm standard pins for connecting the receiver to each terminal part of the model. Please
follow the direction according to the label see the label direction on the side of the receiver.
2.3 Antenna
Note
To ensure the signal quality, the transmitter and receiver antennas should be kept
vertical to the ground as much as possible. In operations, please adjust the transmitter
angle. Make the antenna towards the direction of the model receiver. Keep the receiver
antenna extending out of the model and perpendicular to the ground.
Caution
It is strictly prohibited to hold the antenna of the transmitter and the antenna of the
receiver in operations. Otherwise, the quality and strength of the radio transmission
signal will be greatly reduced, resulting in the failure and out of control of the model.
Note
Do not pull the antenna of the receiver. Do not tie the antenna and the servo cable
together. Do not put the antenna close to the metal materials, because this will a󽗈ect
the signal strength of the receiver.
It should be noted that this is a transmitter with a built-in antenna. Please use the transmitter correctly.
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8][9][10]
[11]
[12] [13] [14]
[16]
[17]
[15]
[1] CH1/P(PWM/PPM)
[2]-[5] CH2- CH5
[6] BIND interface
[7] BVD/VCC(Battery voltage detection/Power supply interface)
[8] CH7
[9] SERVO
[10] LED
[11] Antenna
[12] BIND button
[13] SENS interface
[14] CH6
[15] Signal pin
[16] + (Power anode)
[17] - (Power cathode)
