17Handler I, II & III Operator’s Manual - October 2008

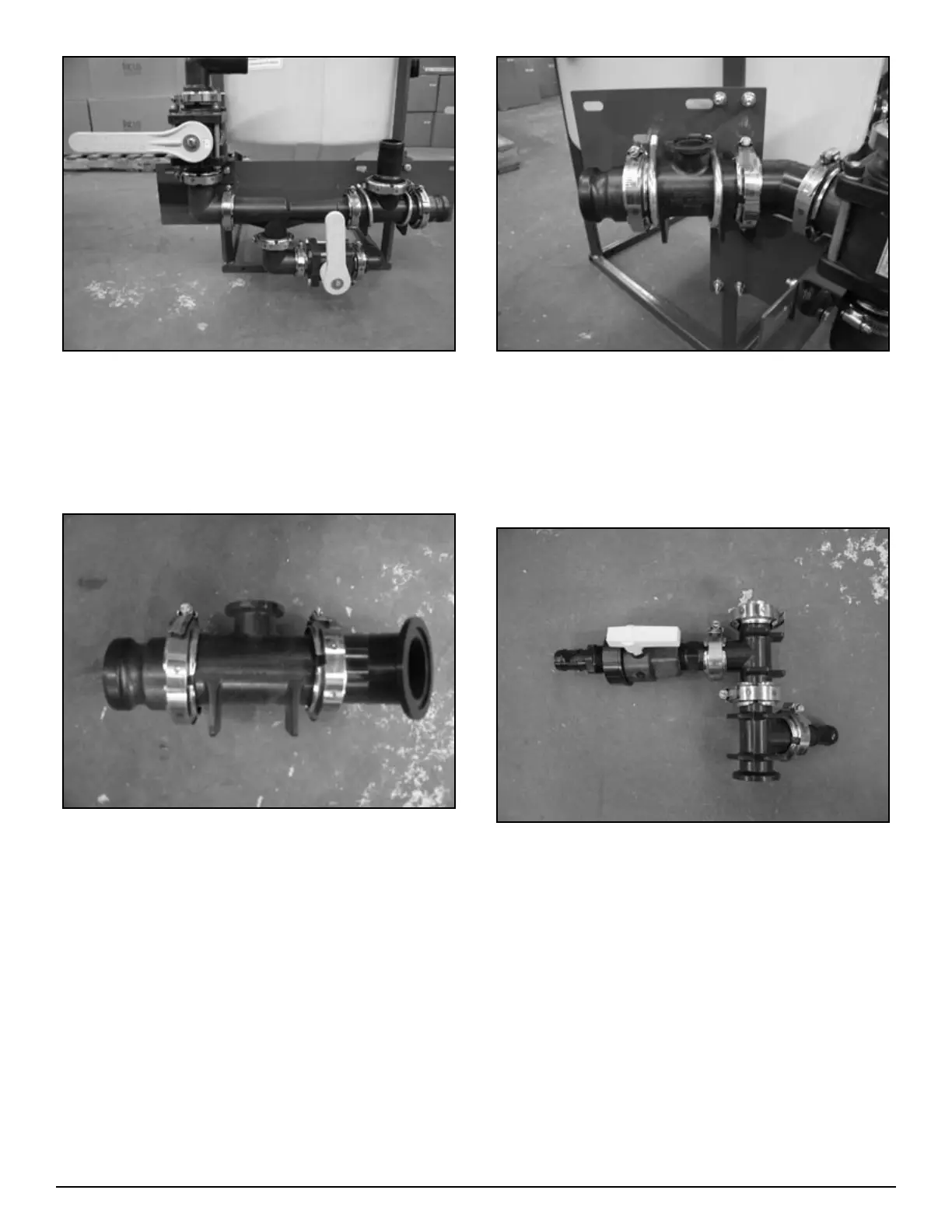

Figure H2-4.9
Install partial assembly on to venturi mounting plate as
shown in figure H2-4.9. Use two 5/16” X 1” bolts. Do not
tighten completely yet.
Install two 2 ½” U-bolts (67-UB038-250) to hold assembly
to plate. Do not tighten completely yet.
Figure H2-4.10
Assemble remaining 2” fittings as shown in figure H2-4.10.
2.
3.
4.
Figure H2-4.11
Mount second assembly to first as shown in figure H2-4.11
(use 25-FC220 clamp and 25-200G gasket). Do not tighten
completely yet.
Install 2 ½” U-bolts (67-UB038-250) to hold second as-
sembly to intake support plate. See figure H2-4.11. Do not
tighten completely yet.
Figure H2-4.12
Assemble 1” fittings as shown in figure H2-4.12.
5.
6.
7.
