18 Handler I, II & III Operator’s Manual - October 2008

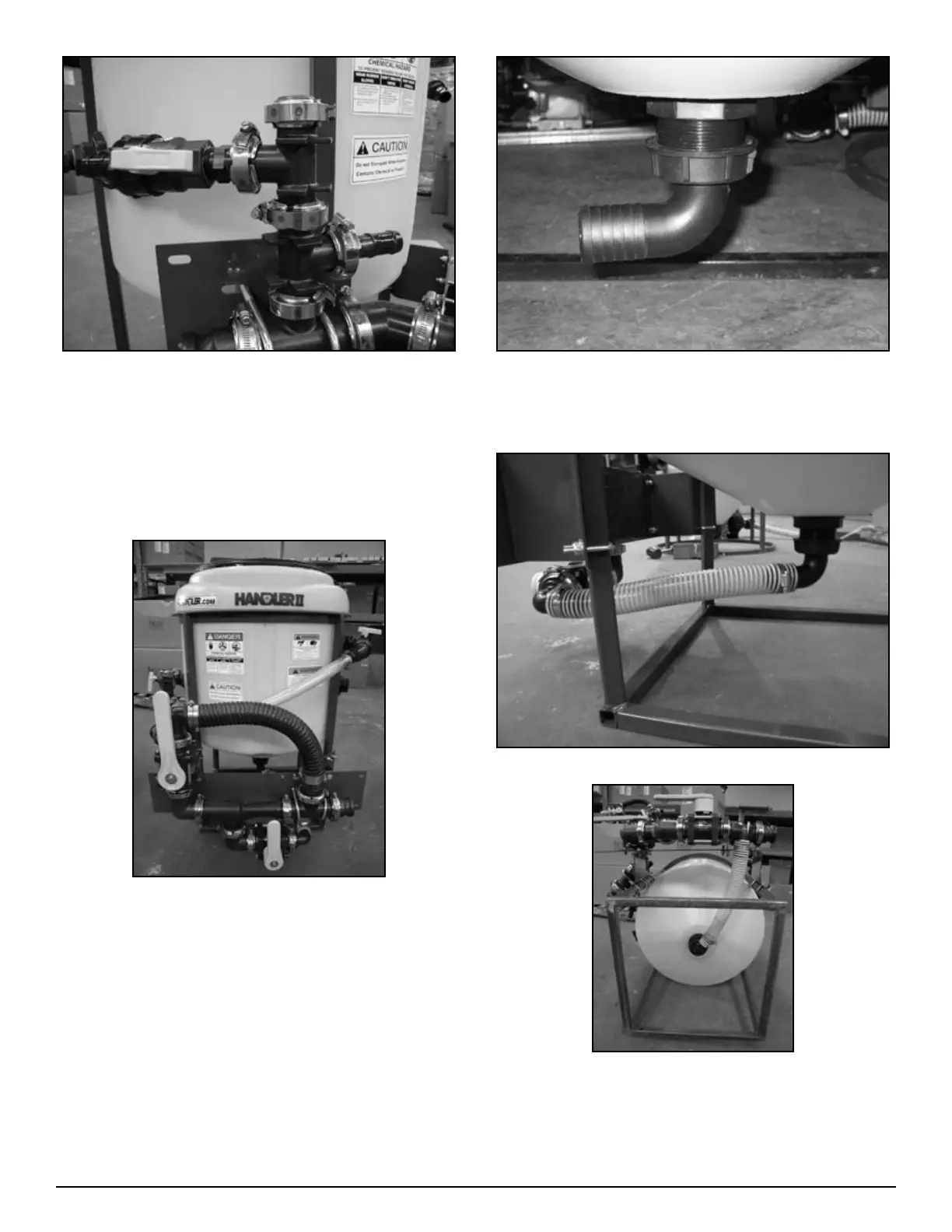

Figure H2-4.13
Install 1” fitting assembly as shown in figure H2-4.13. Do
not tighten completely yet.
Tighten flange clamps on 2” fittings.
Tighten U-bolts.
Tighten remaining bolts.
Align 1” fittings and tighten flange clamps.
Figure H2-4.14
Install 2” bypass hose (54-79250) and secure with two
clamps (53-75632) per end as in figure H2-4.14.
Hint: Install hose at bottom end and ensure proper length.
Heat other end and install hose barb. Attach hose barb to
assembly.
Measure, cut and install 1” clear braided hose (54-79210)
for agitation and rinse lines. Secure with clamps (53-756-
12).
8.
9.
10.
11.
12.
13.
14.
Figure H2-4.15
Install 2” FPT X 1 ½” HB 90 degree fitting (10-10910)on to
bottom of tank, see figure H2-4.15
Figure H2-4.16
Figure H2-4.17
Measure, cut, and install 1 ½” PVC suction hose (54-79050)
that goes between tank and venturi valve. Secure with
clamps (53-75624). See figure H2-4.16 and H2-4.17.
15.
16.
