Step 5
Pump bracket installation

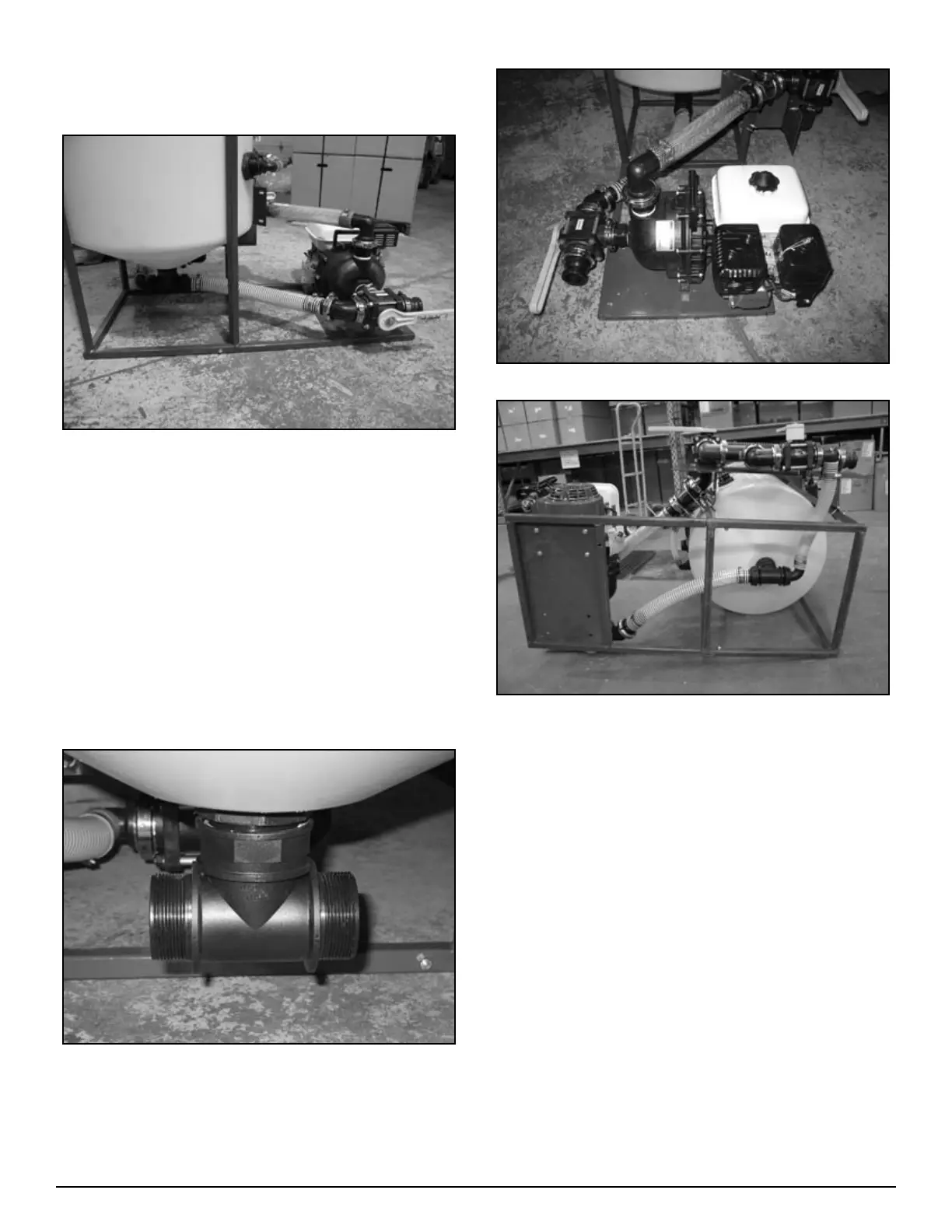

Figure H2-4.18
Fit pump bracket into bottom of tank frame (see figure H2-
4.18).
Use two 5/16” X 1 1/2’” bolts and two 5/16” locking nuts to
secure bracket to frame.
Step 6
Pump and recirculation
package installation
Mount pump to pump bracket using four 5/16” X 1 ½”L
bolts, four 5/16” locking nuts and eight flat washers.
Figure H2-4.19
Install 2” Tee (10-11100) to bottom of tank (use pipe seal-
ant) see figure H2-4.19.
1.
2.
1.
2.
Figure H2-4.20
Figure H2-4.21
Install fittings as shown in figure H2-4.20 and H2-4.21.
If using a pump/motor combination different than shown in
the above figures may require repositioning of the pump to
direct exhaust away from the tank. This may require drill-
ing extra holes in plate.
3.
4.
