ADAT-TO-LINE MODE
Selecting ADAT>LINE mode ([12] on the front panel) reassigns the eight sources feeding the
analogue LINE OUTPUTS D-sub connector [20]. In normal operation, the mic preamplifier output
channels are available at this D-sub connector; in ADAT>LINE mode, the ADAT digital signals at the
OPTICAL IN port(s) feed the D-sub connector, after D-to-A conversion.
This mode allows you to use the Clarett+ OctoPre to connect an 8-channel ADAT format output (from
a DAW, for example) to a set of analogue inputs. For example, you can send the channels from your
DAW to outboard equipment to use as part of your mixing process.
When ADAT>LINE mode is enabled, the eight Clarett microphone preamplifiers are still operational,
and their outputs remain available at the OPTICAL OUT ports.

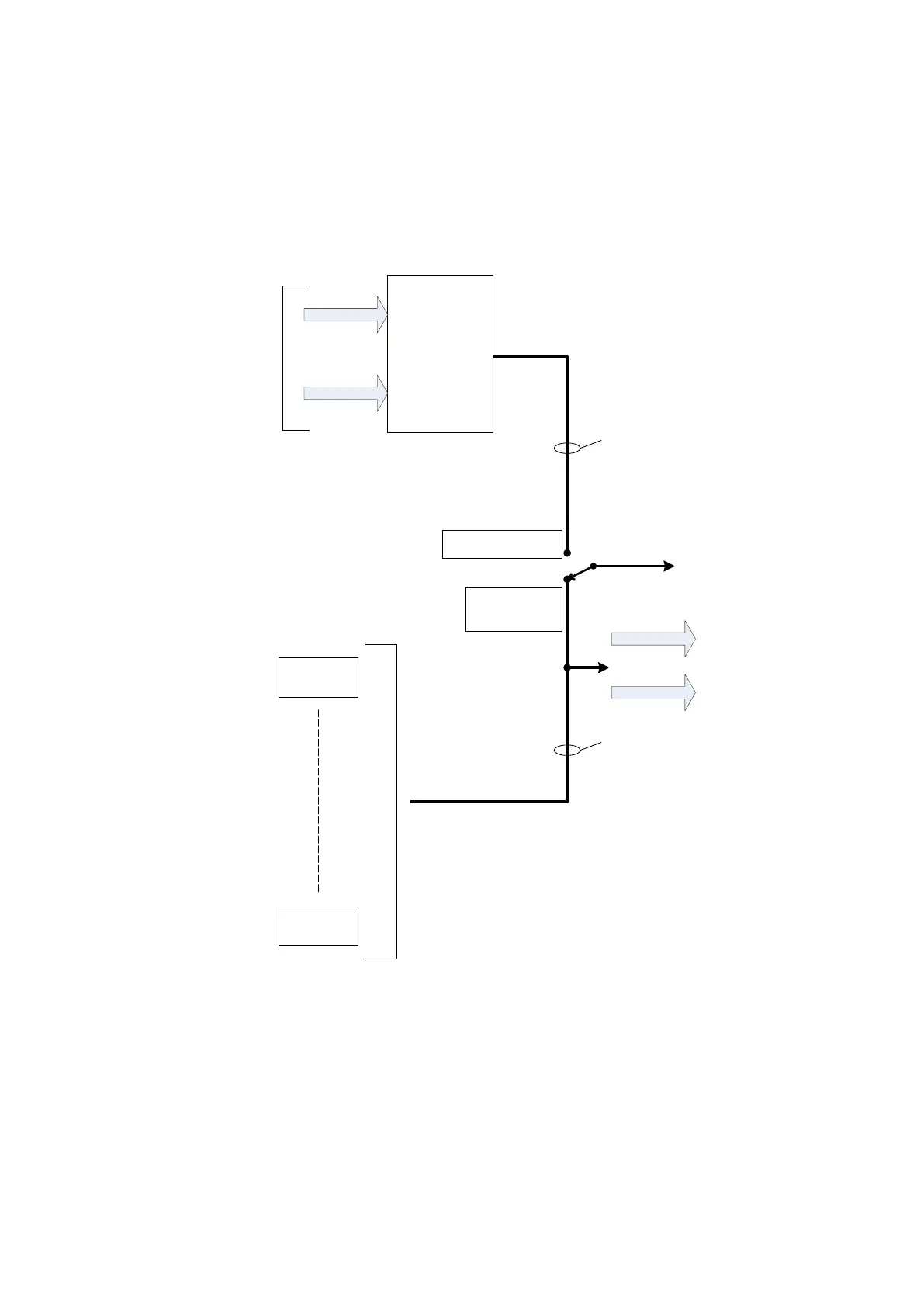

OPTICAL
INPUTS
DEMULTIPLEXER
and D-A
CONVERSION
8 chs.
ADAT > LINE mode
selected
LINE
OUTPUTS
1 - 8
OPTICAL OUTPUTS
ADAT > LINE
mode not
selected
8 chs.
Ch. 1
Ch. 8

Focusrite Clarett+ OctoPre Specifications

General

XLR inputs	8
Digital audio optical out	2
Power supply included	Yes
Gain	57 dB
Control type	Buttons, Rotary
Product color	Black, Red
LED indicators	Power, Signal strength
Frequency range	20 - 35000 Hz
Built-in display	No

Weight and Dimensions

Depth	286 mm
Width	482 mm
Height	44.5 mm
Weight	4150 g
