The matrix displays graphically how the physical inputs and outputs on the RedNet units are currently
mapped to the audio channels of the RedNet PCIe card. Consider a simple situation where a single
RedNet 1 unit is on the network.

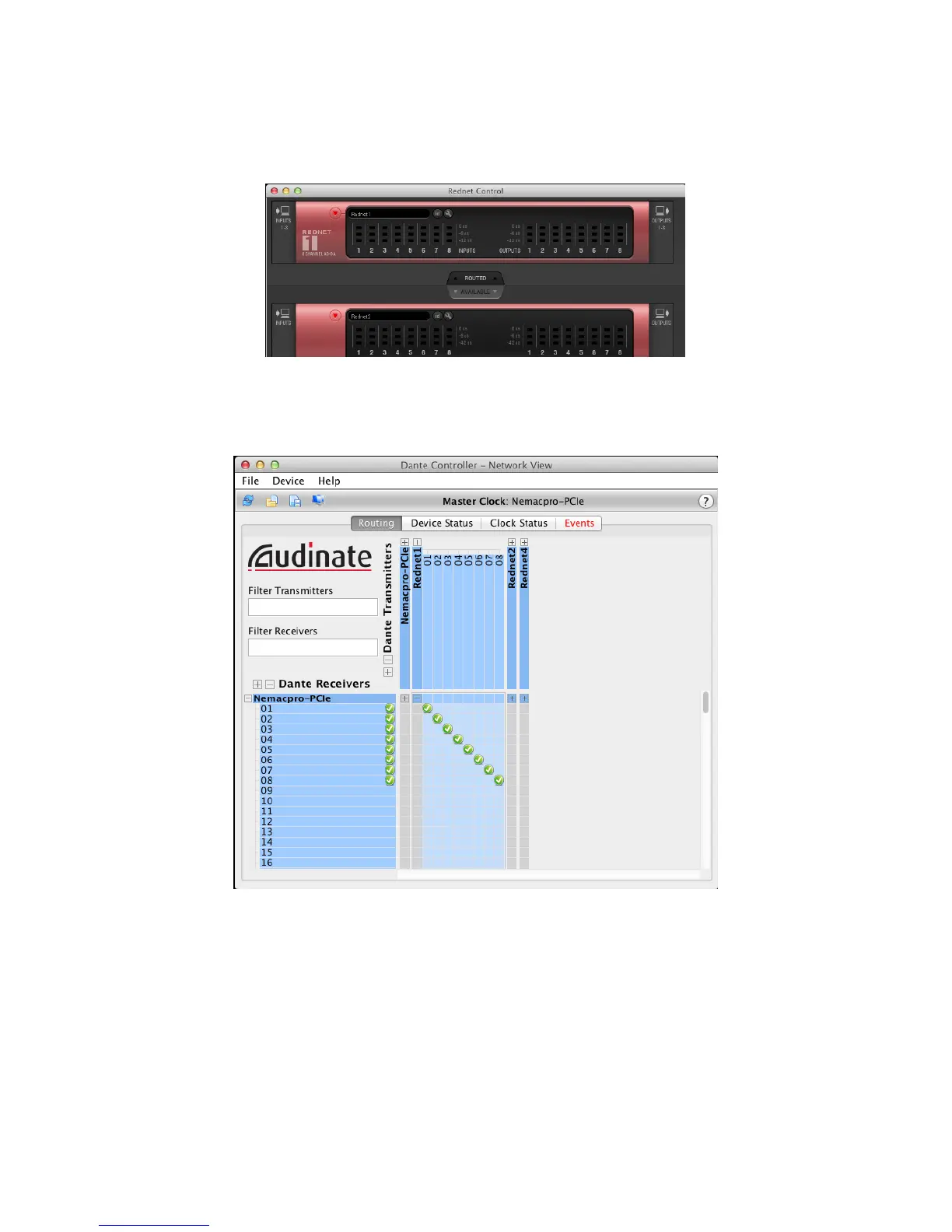

Expanding the RedNet PCIe card inputs (vertical axis – Dante Receivers) and the RedNet 1 audio
inputs (horizontal axis – Dante Transmitters) will give a display like this:
