E 167 - GB - 6
12
Rue du Pré Neuf - 58440 MYENNES FRANCE
QUADRA
493 9021
493 9031
At each end of the cross-member, feed the wire rope under the sensing roller which should always be kept
in the upper position, then insert it into the groove of the vertical pulley and then insert the end of each wire
rope through the top of the column, fit the shoulder collar and the two nuts.
In a similar way, route the white and blue wire ropes in cross-member 3-4 and fit them to their respective
columns.
Fig. 7

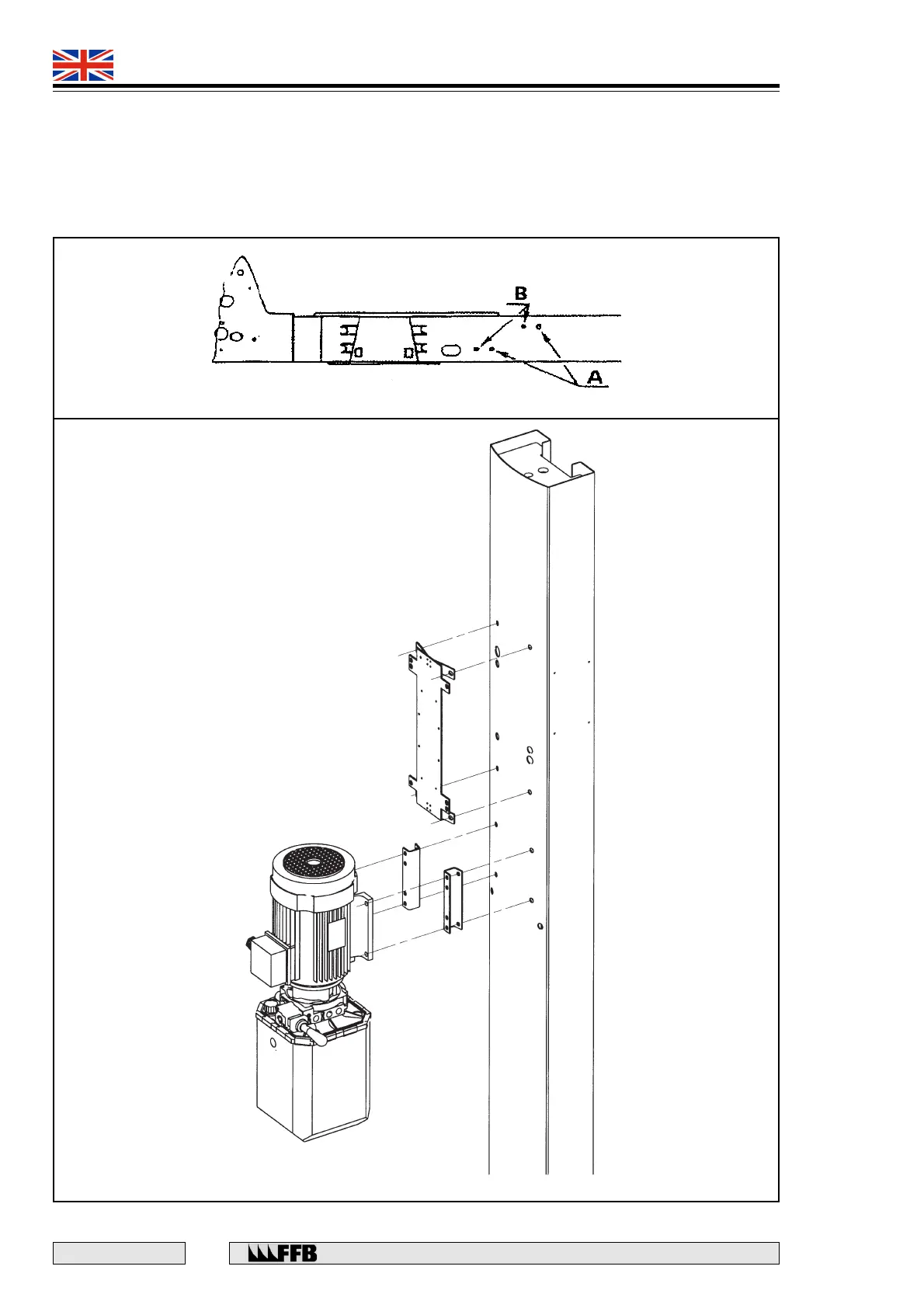

Fig. 4
