FOG QUADRA 493 9021 - Add-On for 493 9021

QUADRA
37
E 167 - GB - 6
Rue du Pré Neuf - 58440 MYENNES FRANCE
493 9021
493 9031

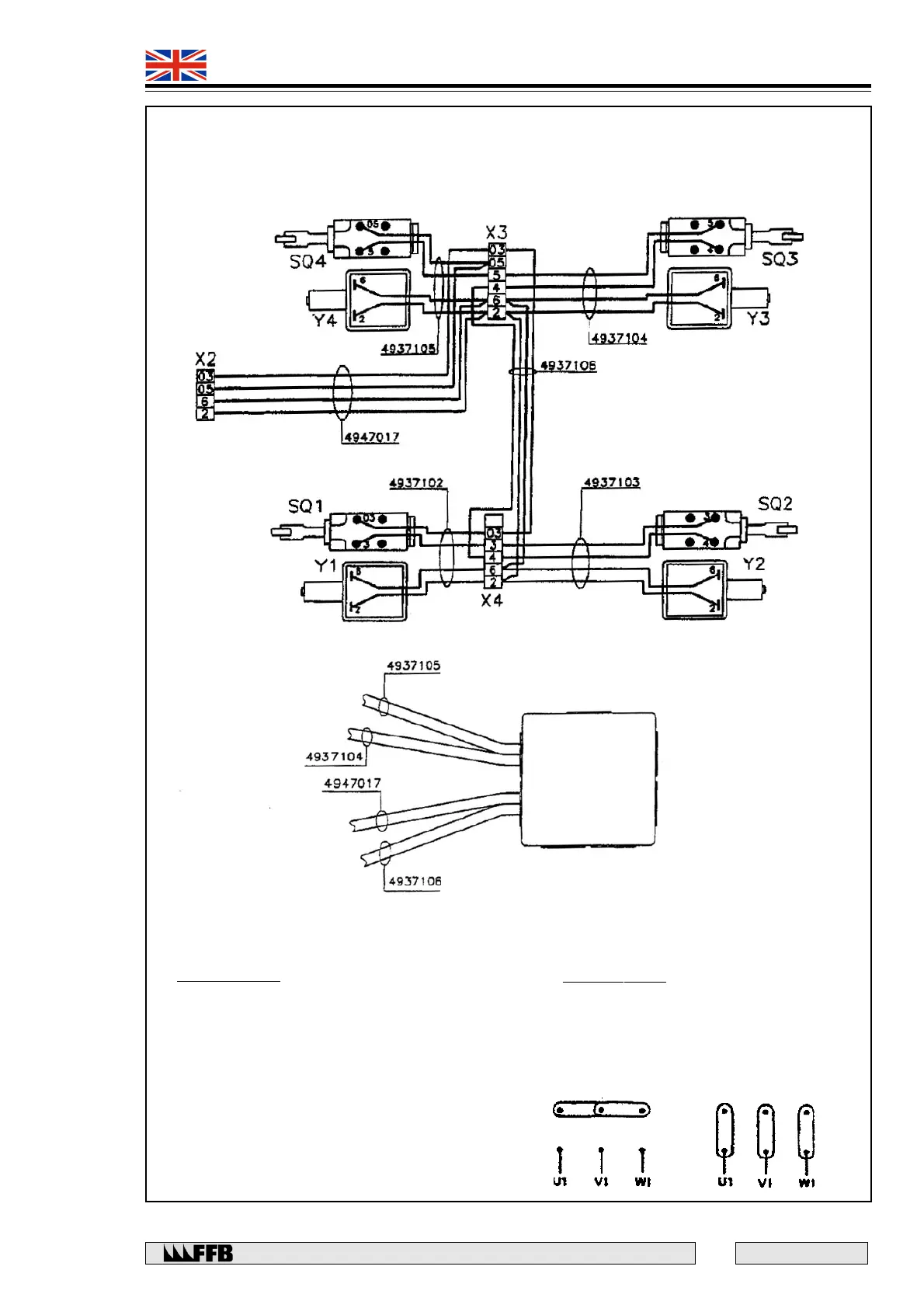

Wiring diagram
Post n° 4
(with motor)
Post n° 3
Post n° 1
Post n° 2
POWER SUPPLY :
1) 3 phases 400V :
- The lift can be directly wired.
- No modification required.
- Check the input voltage of the transformer which
must be 400V.
NOTA : The neutral wire is not necessary for the lift
itself. However, it is necessary for 230V accessories
(lighting kits, wheel alignement device, ...)
2) 3 phases 230V :
- Make the following adjustments.
- Change the transformer.
- Change the position of the electric coupling
6 terminals of the motor as follow :
400 Volts 230 Volts
ADD-ON STD Type 493 9021
