Fitting and adjusting the tie rods
Raise the platform, without letting it rest on its latches. At each end of the fixed track:
• Insert the threaded rods into the tubes located in the track (Fig. 15).
• Screw two M12 nuts (a) and (b) onto the rod.
• Position an M12 nut in the cross-member cheek plate. Tighten the M12 nut (a) fully against
the bracket.
• Screw a M12 nut (c) onto the other end.
• Adjust nuts (b) and (c) until the flanges of the vertical cheek plate are parallel in the column
and tighten them fully.

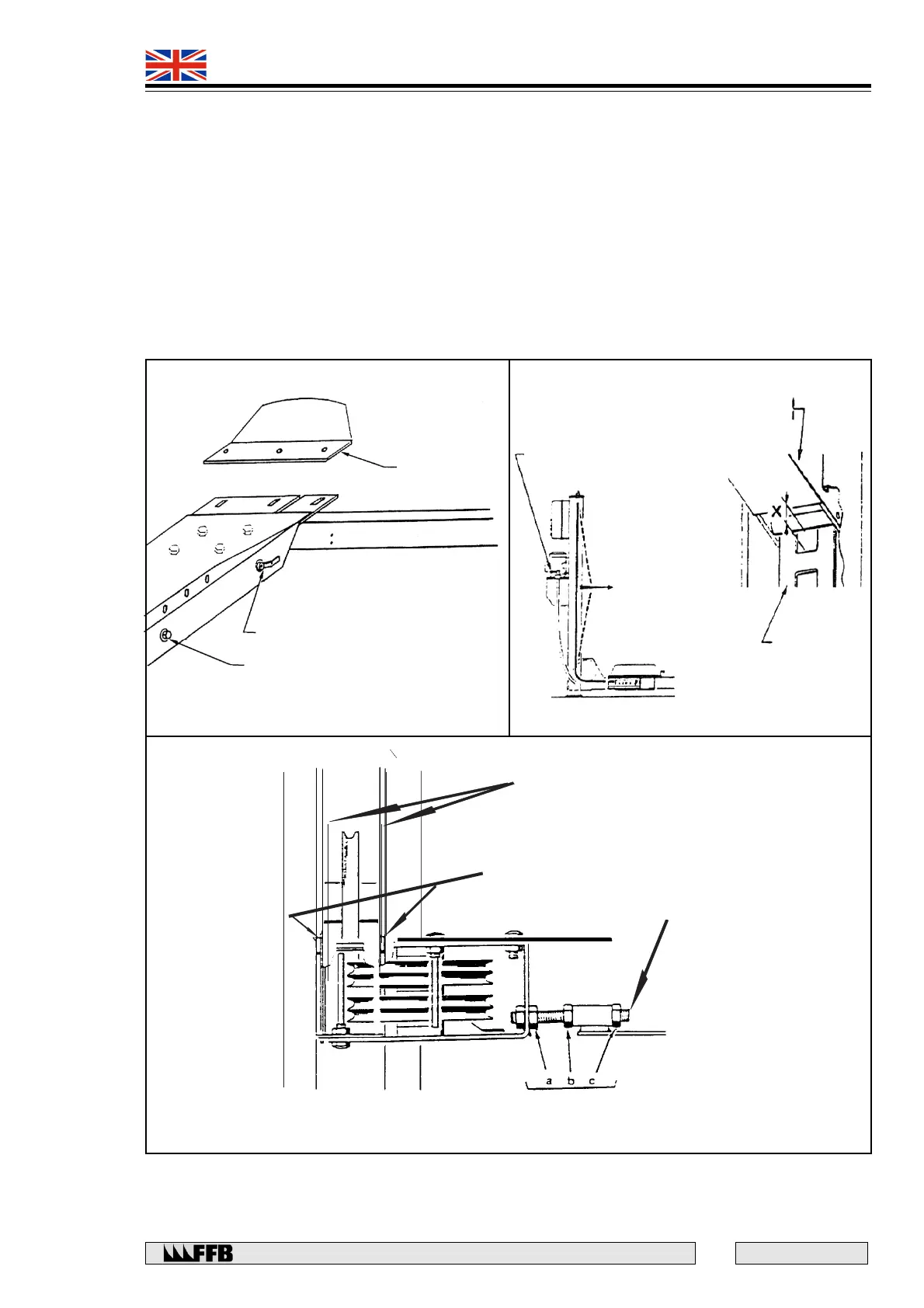

Fig. 15
CHEEKPLATE FLANGE
PLASTIC STUD
TIE BOL
NUT M 12
THE BOLT
CHEEKPLATE FLANGE
NUT M 12
PLASTIC STUD
Fig. 19 Fig. 13
FIXED END-STOP
2 WAY VALVE
for levelling
SOLENOID
Emergency lowering
‘LOWER’ Lever
Cross member
vertical gusset
Ladder
