ASSEMBLING THE SUPERSTRUCTURE
Identification of the main components

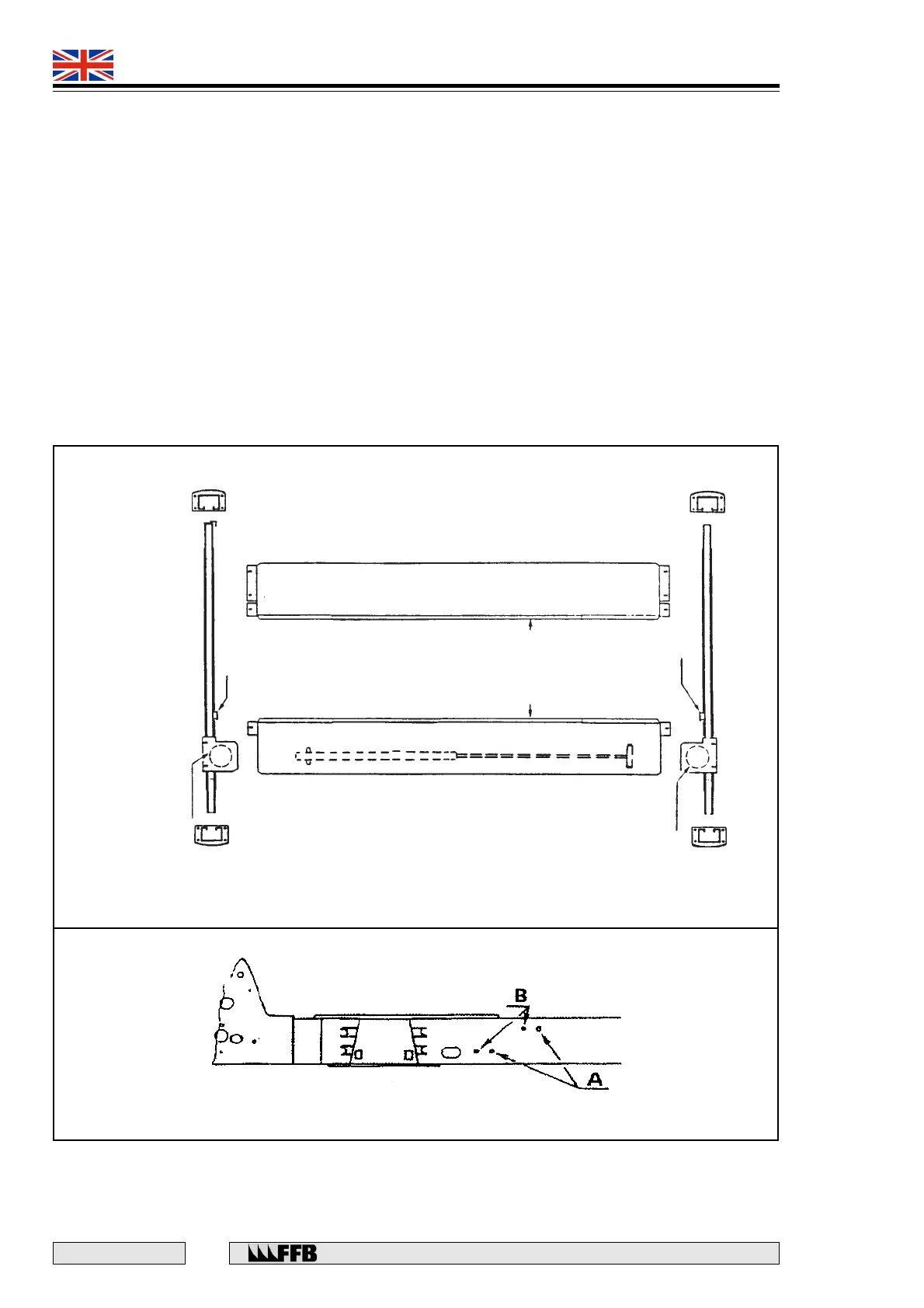

Unpack the component parts and identify them in accordance with Fig. 3.
The motor column (4) has several holes on its main face as well as the identification and instruction plates.
Columns 1, 2 and 3 are all similar, but the one that has a large vertical ‘Fog’ logo must be positioned on
the ‘drive on’ side on the left.
Preparing the cross members
Position the junction boxes correctly according to the type of lift (see Fig.4):
• in holes (A) for lift 493 9021
• in holes (B) for lift 493 9031
Fig. 3
COLUMN 1
COLUMN 4
(motor)
COLUMN 3
COLUMN 2
Junction
box
Junction
box
Wheel-guides
ADJUSTABLE
TRACK
CROSS-MEMBER 3 - 4
FIXED
TRACK
CROSS-MEMBER 1 - 2
Horizontal gusset
with single pulley
Horizontal gusset
with single pulley
Fig. 4
