E 167 - GB - 6
36
Rue du Pré Neuf - 58440 MYENNES FRANCE
QUADRA
493 9021
493 9031

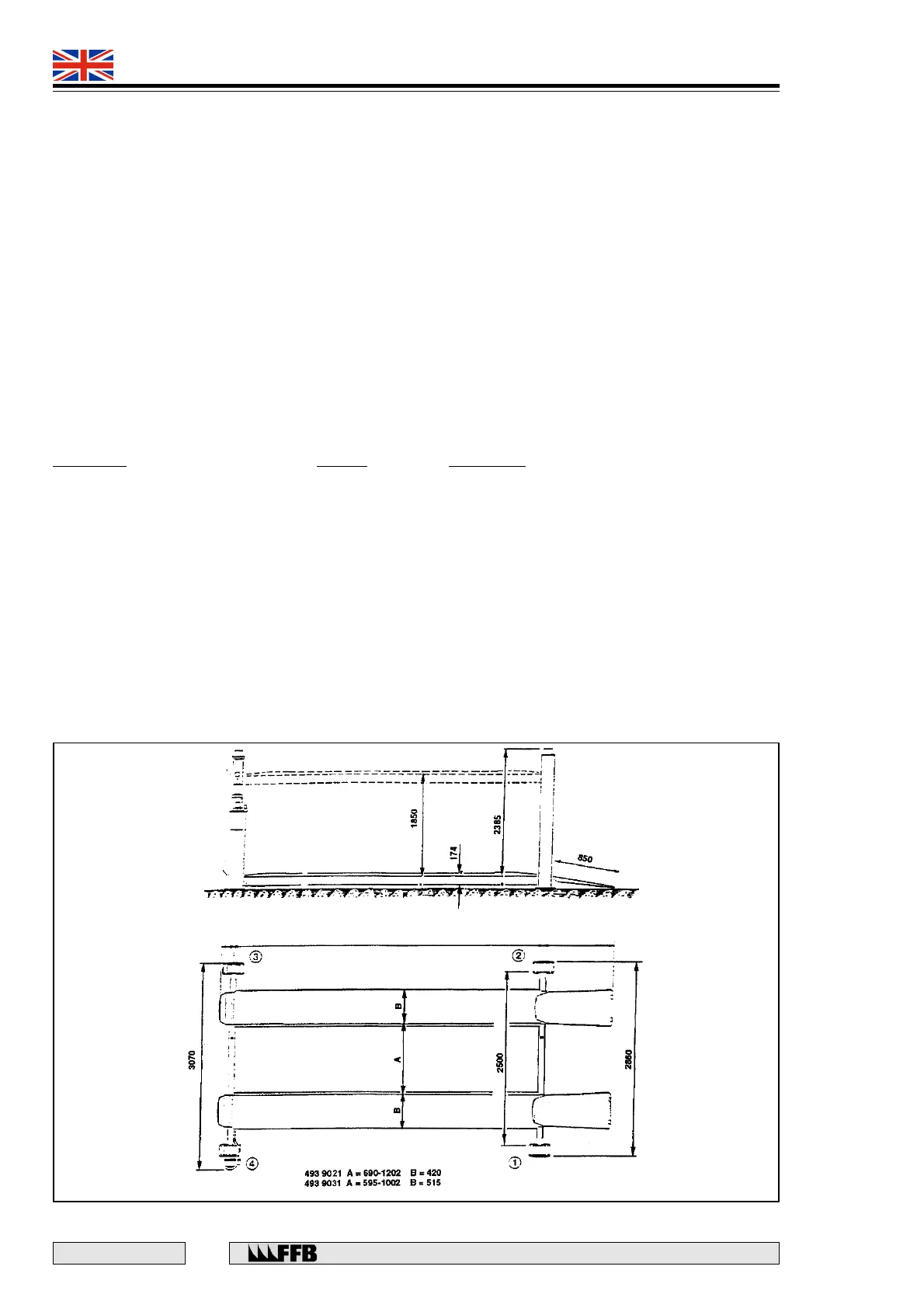

TECHNICAL SPECIFICATION
Load capacity (platform) 3500 kg
Load capacity (auxiliary) 3000 kg
'Raise' time approx. 35 secs
'Lower' time 28 secs minimum
Hydraulic Circuit
Capacity 10 litres
Oil type hydraulic oil 256 8011
Engler viscosity at 20°C = 5
Max. working pressure 250 bar
Electrical Supply
Voltage 400 V 3 phase+earth (Can also be changed to 230V three phase)
Power 1.85 KW
Weight
493 9021 655 kg
493 9031 1015 kg
Weight of the Individual Component Parts
Description Weight (kg) Dimensions (mm)
Set of columns 150 2360 x 570 x 390
Set of cross-members 145 2800 x 350 x 320
Set of ramps 50 1040 x 450 x 130
Set of tracks :
493 9021 250 4400 x 440 x 250
493 9031 610 4400 x 520 x 470
Accessories 60 720 x 540 x 430
Maximum platform capacity 3500 kg
Minimum wheelbase 2.50 m
Minimum track 1.5 m
Load distribution 2/5 - 3/5
Equipment lifting strap capacity 1000 kg (minimum)
